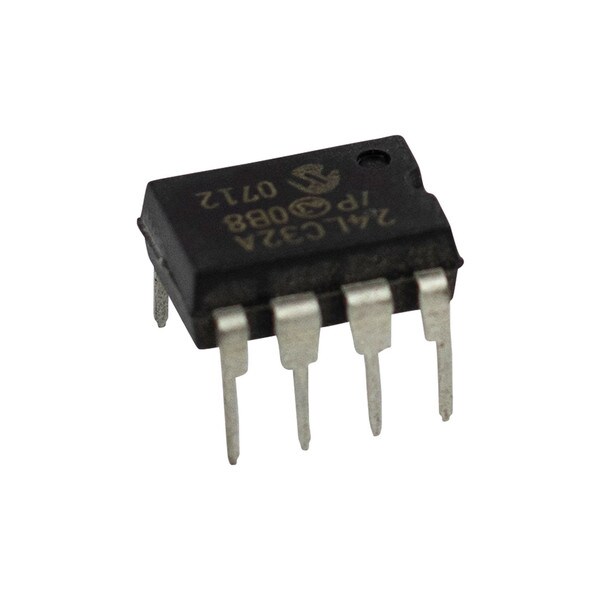

24LC32A/P Serial EEPROM

(0)No Reviews yet
$1.29
QuantityPrice
1 – 9$1.29
10 – 19$1.23
20 – 99$1.16
100 +$1.14
SKU: 9000023
Weight: 0.003 lb
Sale Unit: Piece

In Stock

84 IN STOCK

9000023

The Microchip Technology Inc. 24AA32A/24LC32A (24XX32A*) is a 32 Kbit Electrically Erasable PROM. The device is organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 A and 1 mA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition. The 24XX32A also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up
to 256 Kbits address space. The 24XX32A is available in the standard 8-pin PDIP, surface mount SOIC, SOIJ, TSSOP, DFN, TDFN and MSOP packages
  • Manufacturer: Microchip
  • Product Category: EEPROM
  • RoHS: RoHS Compliant
  • Access Time: 900 ns
  • Mounting Style: Through Hole
  • Package / Case: PDIP-8
  • Memory Size: 32 kbit
  • Interface Type: Serial, 2-Wire, I2C
  • Organization: 4 k x 8
  • Data Retention: 200 Years
  • Maximum Clock Frequency: 400 kHz
  • Supply Current - Max: 3 mA
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • Maximum Operating Temperature: +70 C
  • Brand: Microchip Technology
  • Minimum Operating Temperature: 0 C
  • Operating Supply Current: 3 mA
  • Supply Voltage - Max: 5.5 V
  • Supply Voltage - Min: 2.5 V
  • Unit Weight: 0.032805 oz
