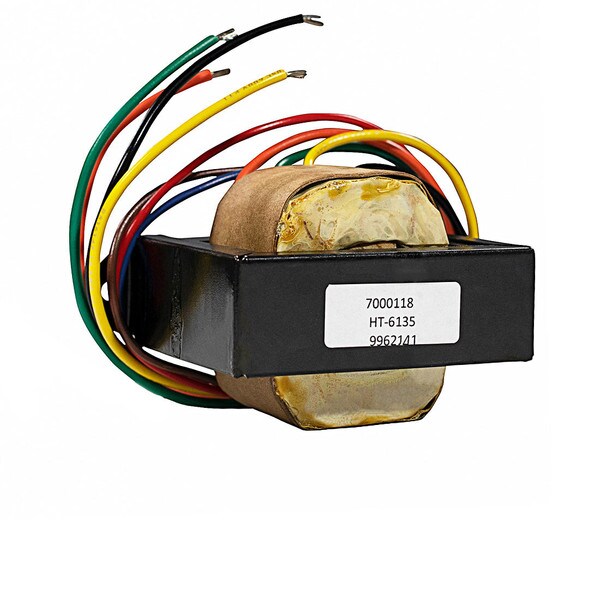

British Style 18W Output Transformer (Direct Replacement for the Marshall® 18W)
All Mojotone Transformers are made in the USA. High Quality, Reliability, and Excellence are what make our transformers the best around.

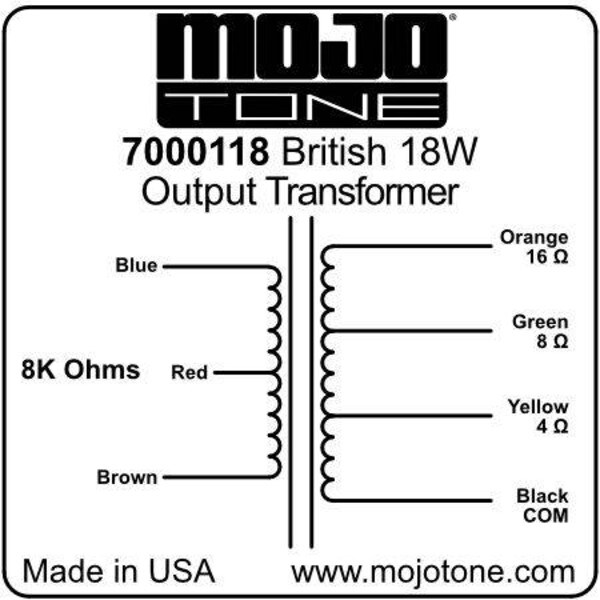

Please use caution when referencing these wiring diagrams. Mojo transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojo is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojo transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.
Output Taps: 4/8/16 Ohm
X Mount with 3-1/2'' 2-hole mounting centers.(Direct Replacement for the Marshall® 18W)
Primary impedance 8K
Ratings & Reviews
I will be buying more of these
This is the Heyboer 6135 18W output transformer. It is the best sounding 18W OT for an 8k primary and 4/8/16 secondary in my opinion. If you want to listen to soundclip comparisons of output transformers there are several online (obviously this is not the same as trying them yourself in your own build, but it's something to start with and free), including one by Granger Amps on the Classictone site and another on the Mercury Magnetics site. Not all of these comparisons feature this particular 18W OT but it's a good starting point to hear Heyboers vs. other brands. Mine sounds fantastic in an 18W build with EL84s, with 6094s and with 6973s in the output tube sockets. I use the 8 Ohm tap into an 8 Ohm Jensen P12R for my Denim Deluxe 1x12 combo. The 16 Ohm tap would be slightly louder with a 16 Ohm speaker. Many people like the Celestion G12M or G12H ceramic speakers in these builds but I prefer the Alnico voice a little more; just a personal preference and this Heyboer transformer is perfect for either speaker type. I will be buying more of these. Mojo has the best pricing I could find for these, too.
