Pre-Wired Strat Blender Guitar Wiring Harness

5 Reviews
$76.95
SKU: Z4S5W125
Weight: 1.2 lb
Sale Unit: Piece

In Stock

30 IN STOCK

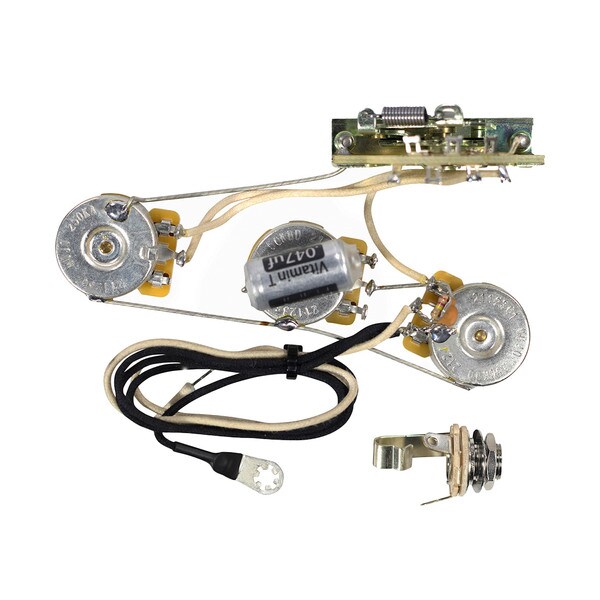

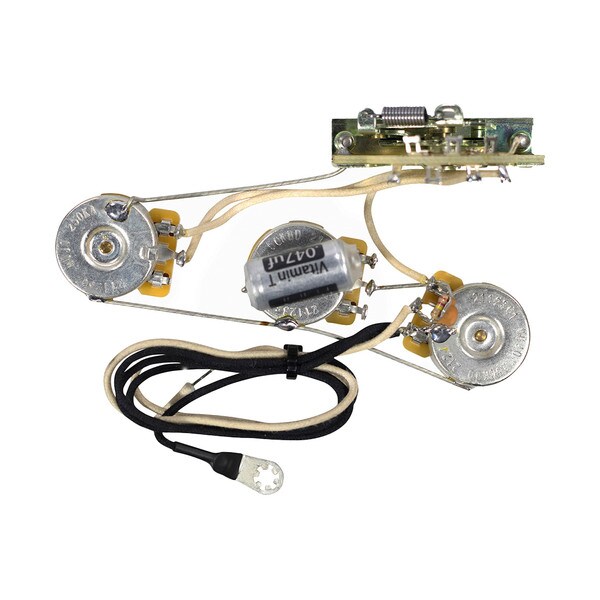

The Fender style Blender wiring kit uses one volume, one master tone, and a blender pot. In the neck position you can blend the bridge pickup in to varying degrees. In the bridge position you can blend the neck pickup in to varying degrees. In positions two and four all three pickups are on at once. Use push on knobs only.
Included:
  • (2) CTS 250k vintage taper audio split shaft 7% tolerance potentiometers
  • (1) CTS Blender 250k audio split shaft potentiometer
  • (1) CRL 5-way switch
  • (1) Switchcraft mono input jack
  • (1) Vitamin T Oil Filled .047uf capacitor
  • (2 ft) Pre-tinned cloth covered black wire
  • (2 ft) Pre-tinned cloth covered white wire
  • (1) Volume mod cap and resistor

Ratings & Reviews

5 reviews

  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
10/3/2021 3:34 am

Electronics perfect! Pegs improvable...

by DerKastellan -

I'm very happy with the quality of the wiring harness, the leads, the spacing, and how it sounds.

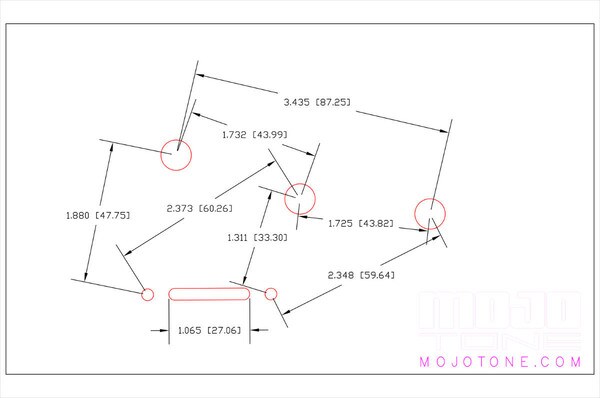

When installing it in my 90s Strat copy, I had to widen the holes in the pickguard to fit the pot screws through. This might be a 90s imperial/metric thing. They sat very snug after. Installation on the faceplate was trivial, spacing was similar, minimal bending needed.

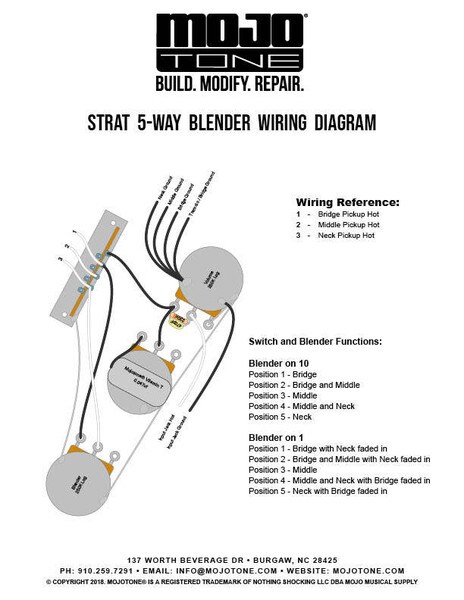

Wire diagram and circuit differ. That caused some confusion, but a knowledgeable friend verified it made no difference electronically. I soldered the circuit in with my existing pickups and it worked on first try. Real improvement in sound and the capabilities of the circuit.

What soured me a bit is that this circuit meant for Strat type guitars doesn't fit Fender's typical Strat knobs. I ordered some from Fender brand, and they only go halfway over the pegs and are extremely snug to fit. In comparison, you can perfectly fit any 6mm knobs, Squier Toronado chrome knobs fit. Not a drop-in replacement...

6/23/2021 2:29 pm

Top Notch Quality

by Shiloh -

Awsome!! I was highly impressed with the top notch quality and components. I installed this in my Squier stratocaster, along with 3 seymour duncan vintage flat single coils, and it was awsome to have neck and bridge and all 3 at once... its funny cuz I live in NC, and ordered this from somewhere else. But I highly recommend this to any and everyone.
