Solderless Quiet Coil Thinline Tele 3-Way Wiring Harness

(0)No Reviews yet
$87.95
SKU: X2QCS846
Weight: 0.8 lb
Sale Unit: Piece

Temporarily Out of Stock

Dist. calc, sale only

Back

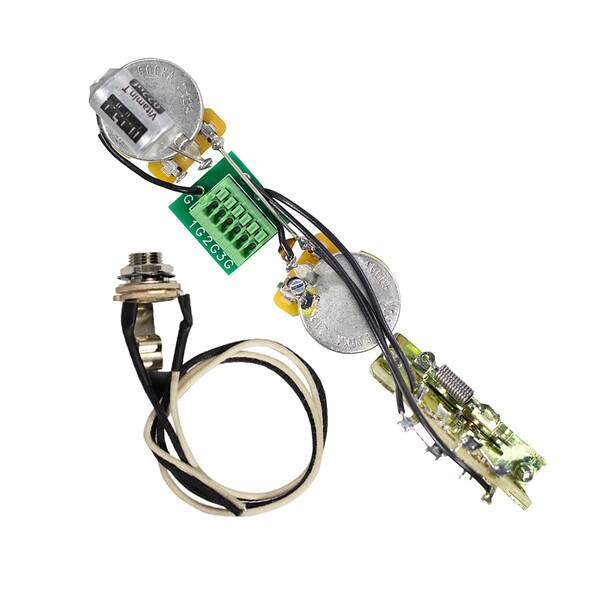

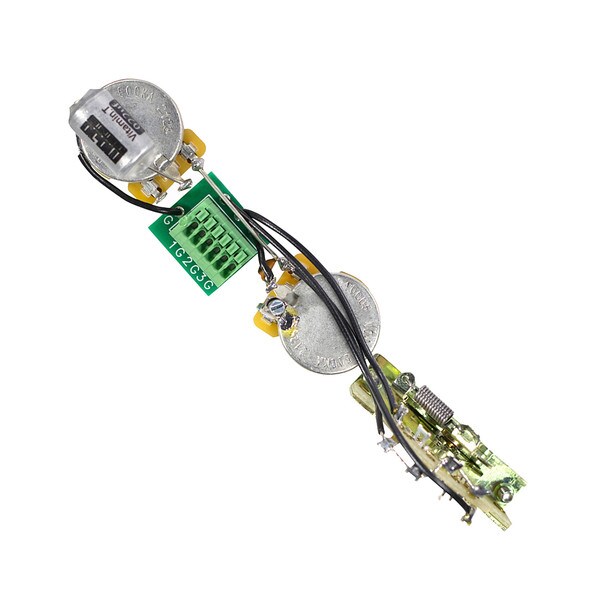

This is a 3-way standard kit for our Quiet Coil Telecaster pickups that utilizes 500k potentiometers. It uses a master volume and master tone control for both pickups. Use set-screw knobs only. Also great for Thinline Customs with wide range humbuckers!
Back
Included:
  • (2) CTS 500k audio taper audio solid shaft potentiometers
  • (1) CRL 3-way switch
  • (1) Switchcraft mono input jack
  • (1) Vitamin T Oil Filled .022uf capacitor
  • (1 ft) Pre-tinned cloth covered black wire
  • (1 ft) Pre-tinned cloth covered white wire
  • (1) Volume mod cap

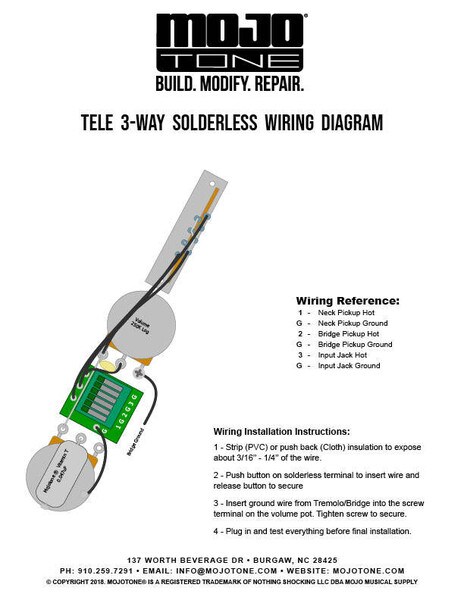

NOTE: Standard Tele wiring diagram included shows 250k pots and a .047uf capacitor. This harness utilizes 500k pots and a .022uf capacitor. Also the neck pickup has an extra 3rd yellow wire that gets grounded to the screw terminal on the volume pot.
Back
Installation Instructions
