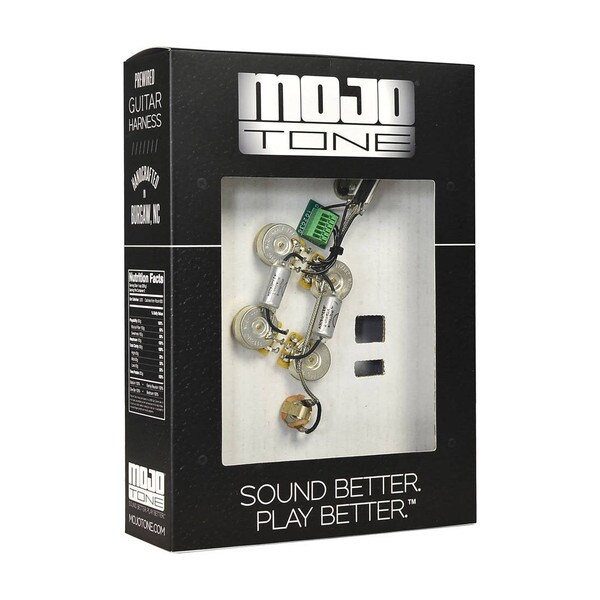

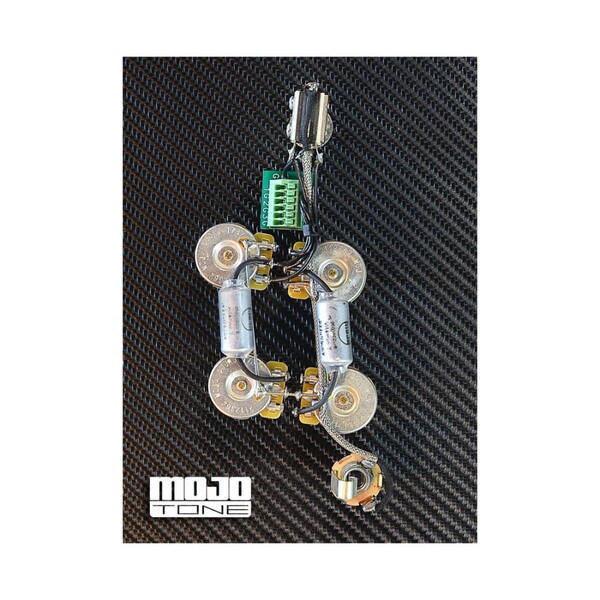

Solderless SG Guitar Wiring Harness

4 Reviews
$130.95
SKU: Z4SSG729
Weight: 0.8 lb
Sale Unit: Piece

Check our Resources page for current build times.

On Back Order

Upgrading to high quality electronics makes a difference, and solderless makes it easier!

Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with a simple push and release of a button. All while offering a superior quality electronic upgrade for your guitar.

No bulky plugs or add-ons are needed for our solderless harness to work. Just strip back your existing wires from your pickups and guitar, insert them into our solderless connector, and you're done!
  • Push-in solderless wire connection for quick installation and easy pickup swaps!
  • Vintage quality USA branded components (Switchcraft, Mojotone, and CTS)!
  • Smooth custom taper, CTS industrial potentiometers with solid brass bushings.
  • Handcrafted and hermetically sealed Mojotone Vitamin T oil-filled tone caps!
  • Pre-wired industrial quality Switchcraft toggle switch included!
  • Hand-wired point-to-point by Mojotone in the USA!

Included:
  • (4) CTS 500k vintage taper short shaft potentiometers
  • (1) Switchcraft USA toggle switch (Switch tip sold separately)
  • (1) Switchcraft USA mono input jack
  • (2) Mojotone Vitamin T Oil Filled .022uf capacitor

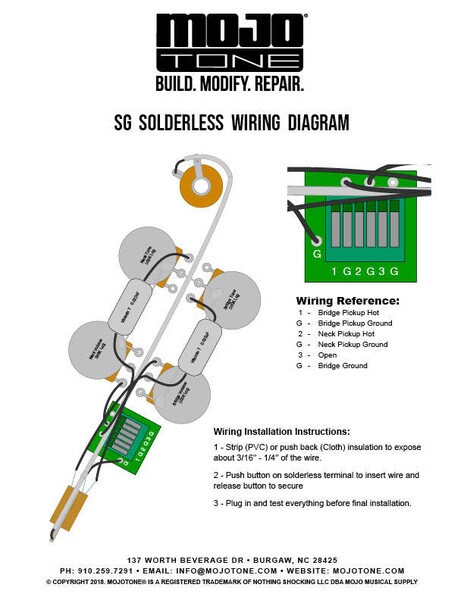

  • (1) Detailed wiring diagram and instructions

Note:

Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit. You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip. See related items.

Ratings & Reviews

4 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
2/17/2021 1:48 pm

KB

by anonymous -

Super easy to install and sounds great. If you like experimenting with different pickups then this is a must-have.

2/17/2021 1:48 pm

Tommy Rose

by anonymous -

I’m an expert solderer, and have worked on guitars for many years. This solderless SG kit is so easy a Caveman could it. Quality components and even better you can literally switch pickups in the fly. I used this kit on a 2018 SG Standard using a Duncan 59 and a Duncan Custom in the bridge. The tone is out of this planet! Thank you Mojotone!!! Amazing!

2/17/2021 1:48 pm

Brian

by anonymous -

Great upgrade. As noted, if putting this on a chibson, you will likely need to ream out/move the holes a bit. You can pick up a low cost taper reamer and it works like a charm.

2/17/2021 1:48 pm

Bradford

by anonymous -

Got this for my old 2002 Epiphone SG, didn't quite line up with the holes on my guitar perfectly but, nothing serious, just had to get widen some holes a little bigger than I would normally. The best part was when I first wired it up it didn't work. I contacted Mojotone and they got back very quickly and helped me troubleshoot it. Turns out I just had grounded out a pickup and it was just a matter of moving a wire to a better spot. These guys rock and they breathed new life into my old guitar.
