Solderless Strat Blender Guitar Wiring Harness

4 Reviews
$98.95
SKU: Z4S5W732
Weight: 1.2 lb
Sale Unit: Piece

In Stock

11 IN STOCK

Build to order

Upgrading to high quality electronics makes a difference, and solderless makes it easier!

Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with a simple push and release of a button. All while offering a superior quality electronic upgrade for your guitar.

No bulky plugs or add-ons are needed for our solderless harness to work. Just strip back your existing wires from your pickups and guitar, insert them into our solderless connector, and you're done!
  • Push-in solderless wire connection for easy installation and quick pickup swaps!
  • Vintage quality USA branded components (Switchcraft, Mojotone, CRL, and CTS)!
  • USA made CRL Switch! It's the most reliable and smoothest feeling switch ever made and hasn't changed since the 50's.
  • Smooth custom taper, CTS industrial potentiometers with solid brass bushings and the tightest tolerances available.
  • Handcrafted and hermetically sealed Mojotone Vitamin T oil-filled tone caps!
  • Hand-wired point-to-point by Mojotone in the USA!

Blender Control Functions:

Master Volume: Top Knob
Master Tone: Middle Knob
Blender Control: Bottom Knob

Blender on 10
Position 1: Bridge
Position 2: Bridge and Middle
Position 3: Middle
Position 4: Middle and Neck
Position 5: Neck

Blender on 0
Position 1: Bridge (with Neck blended in)
Position 2: Bridge and Middle (with Neck blended in)
Position 3: Middle
Position 4: Middle and Neck (with Bridge blended in)
Position 5: Neck (with Bridge blended in)

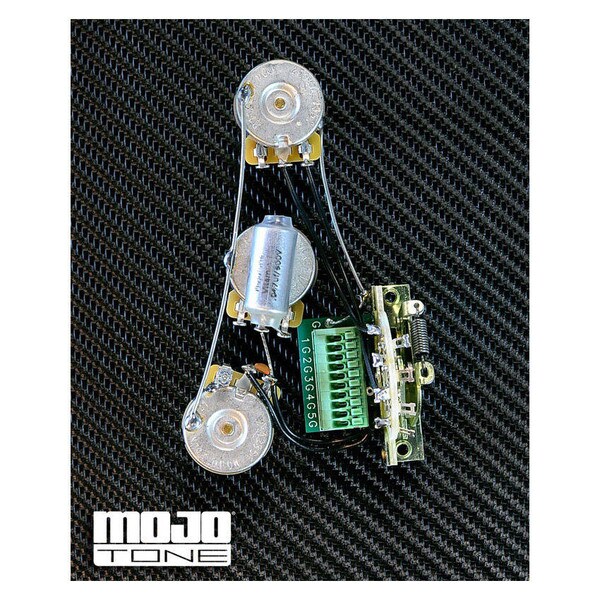

Included:
  • (2) CTS 250k vintage taper split shaft potentiometers
  • (1) CTS 250k Blender split shaft potentiometer
  • (1) CRL USA 5-way lever switch (Switch tip sold separately)
  • (1) Switchcraft USA mono input jack
  • (1) Mojotone Vitamin T Oil Filled .047uf capacitor
  • (1) Treble Bleed (Preserves highs on volume control)

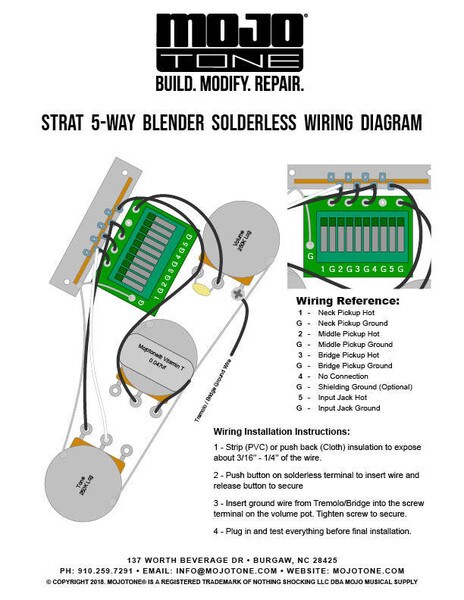

  • (1) Detailed wiring diagram and instructions

Note:

Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit. You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip. See related items.

Ratings & Reviews

4 reviews

  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
2/17/2021 1:48 pm

Frank Piper

by anonymous -

Fast shipping. I installed on my MIM Strat. Went pretty smoothly except for one issue. The tremolo claw ground wire was my final connection and as I turned the phillips head screw on the grounding block the grounding block snapped off its mount. Wasn't a very strong joint as I was only using light pressure to turn the screw. I ended up just soldering the ground wire to the place where the grounding block was. Not a huge deal and the unit works great! Other than that little issue I am very pleased and would recommend!

2/17/2021 1:48 pm

Joshua Gray

by anonymous -

Oh my God what a difference tone punch clarity fatness stupid simple putting it in and was super stoned when I did it came out amazing pat your self on the back MOJOTONE IS AWESOME

2/17/2021 1:48 pm

Matt

by anonymous -

Very impressed with this unit. Installed it in a Squier Classic Vibe 70's Stratocaster body and added the classic Red/Silver/Blue Lace Sensor pickup combo into it. Dead silent, with an HD bell-like tone. Switches and pots feel military-grade, but the jack is a pain to work with. It requires a great deal of force to put the cable in and to pull it out. Note: a Classic Vibe pickguard will not fit, and you will need to get an American Standard to make it work.

2/17/2021 1:48 pm

Jay

by anonymous -

Installed in a Stratocaster XII....It's everything I hoped for and more. I like it better than Fender's S1 switching. I'm a believer in the blender. Be aware with Japanese strats you may have to ream the pickguard where the pots come through. Top quality components and good taper on all the pots. Well done mojotone!
