Relay Standalone PCB for Channel Switching or Component Switching - 6.3v
Specs

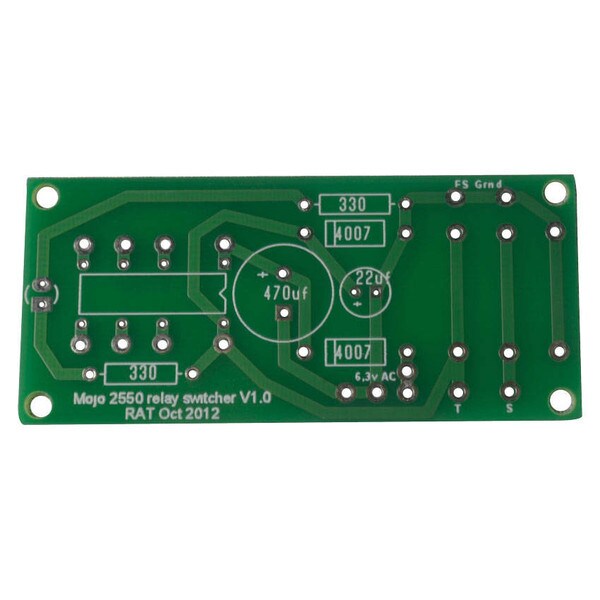

Standalone Relay PCB for Channel Switching or Component Switching - 6.3v
Installation Note: When installing with 1/4" jack, make sure jack is insulated from chassis ground.
Outer Dimensions: 2 3/4" x 1 1/4"
Mounting Holes: 2 9/16" x 1 1/16"
Thickness: 1/16"
- Can be powered off of the 6.3v Filament taps in your amplifier for easy installation.
- Connections for indicator LED
- Board can be mounted directly to the chassis with standoffs or can install PC mount 1/4" mono or stereo jack
Installation Note: When installing with 1/4" jack, make sure jack is insulated from chassis ground.
Outer Dimensions: 2 3/4" x 1 1/4"
Mounting Holes: 2 9/16" x 1 1/16"
Thickness: 1/16"
