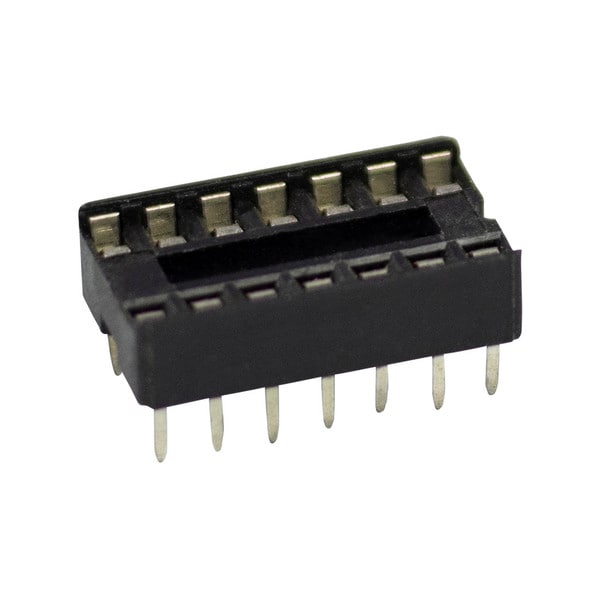

14 -Pin DIP IC Socket

(0) No Reviews yet
$0.32
QuantityPrice
1 – 9$0.32
10 – 19$0.30
20 – 99$0.29
100 +$0.28
SKU: 9000026
Weight: 0.003 lb
Sale Unit: Piece

In Stock

9184 IN STOCK

97 // 10-11-18 DCEP

Single base 14-pin IC chip socket. Product is a low-profile DIP socket that have high reliability contacts with a two-point contacting structure. It is ideal for PCB through hole vertical mounting.

General

  • Contact type: SAF
  • Number of contacts 14
  • Number of rows: 2
  • Product Style: DIP, Stamped and Formed
  • Frame Type Style: Open
  • Gender (Contact): Socket
  • Insulator Type: Standard

Dimensional
  • Length (Tail): 3.2 mm (0.126 in.)
  • Dim D (in): 0.3 in.
  • Dim D (mm): 7.62 mm
  • Spacing (Contact): 2.54 mm (0.1 in.) Pitch
  • Dim A (in): 0.7 in.
  • Dim A (mm): 17.78 mm
  • Dim B (in): 0.6 in.
  • Dim B (mm): 15.24 mm
  • Dim C (in): 0.4 in.
  • Dim C (mm): 10.16 mm
  • Spacing (Row to row): 7.62 mm (0.3 in.)

Electrical
  • Withstanding Voltage: 1000V AC RMS min.
  • Current rating: 1 amps max.
  • Resistance (Contact): 30 M ohms max. at 6V DC
  • Resistance (Insulation): 1000 M ohms min. at 500V DC
  • Voltage rating: 200V AC

Mechanical
  • Durability (Mating cycles): 25 Cycles
  • Insertion force: 340.2g/Contact max.
  • Withdrawal Force: 14.5g/Contact min.

Approvals / Certifications
  • Approvals / Certifications: UL/CSA Pending

Mounting
  • Mounting style: Through Hole

Other Features
  • Packaging (Type): Tube
