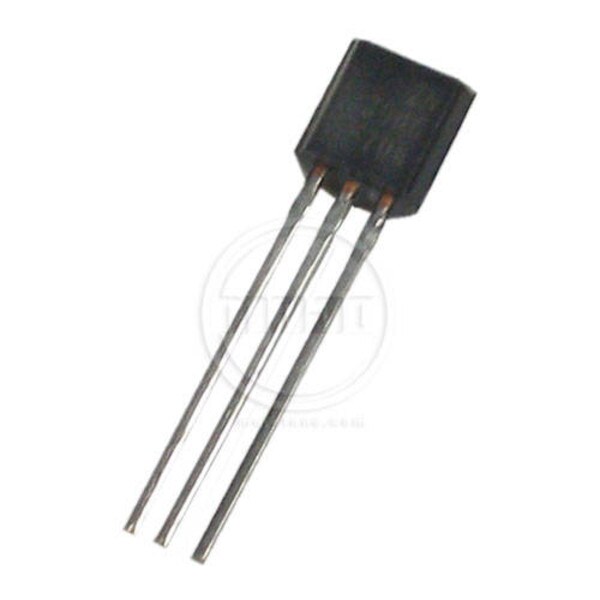

2N5210 AF Preamp/Driver NPN TO-92 50V Transistor
NPN General Purpose Amplifier. This device is designed for low noise, high gain, general purpose amplifier applications at collector currents from 1μA to 50 mA.
- Dimensions (mm): 5.20 x 5.33 x 4.19 (max)
- Lead spacing (mm): 1.39 individual (max)
- Lead Length (mm): 12.70 (min)
- Polarity: NPN
- C-E Saturation Voltage: 700 mV
- Max Current: 100 mA
- Power Dissipation: 625 mW
