'58 Quiet Coil Strat® Pickup Prewired Pickguard

1Review
$359.95
SKU: S357348
$359.95

Strat QC

Click here for current lead times

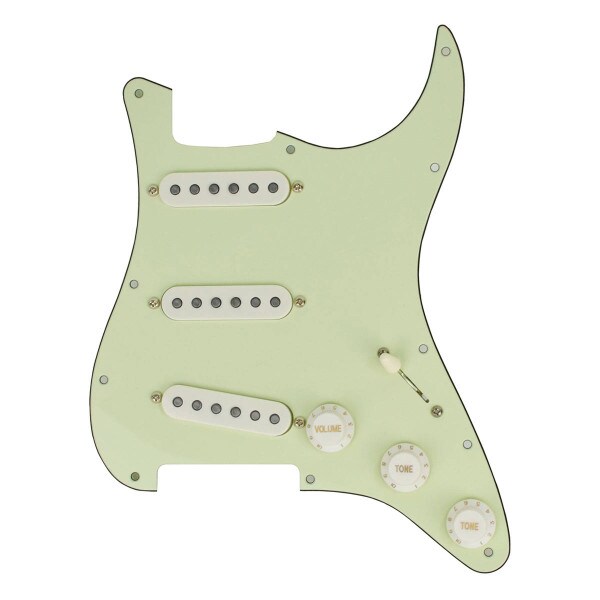

Mojotone ‘58 “Quiet Coil™” prewired solderless pickguards are completely prewired to perfection with no soldering required. Just drop in and play. Our exclusive 7% tolerance CTS pots, Switchcraft jack, Mojotone Dijon capacitor, and CRL 5-way switch compliment what we believe to be the best sounding hum-canceling strat pickups ever made. With the Hot "Quiet Coil" in the bridge position, you get a more balanced output between positions and better sustain, for those who do not like the weaker vintage strat pickups in the bridge position. Carefully balanced in output from the neck, middle, to bridge positions, and completely hum-canceling in ALL positions!

If you have any questions about the Strat Quiet Coil Pickups, please check out our Mojotone Quiet Coil Strat Pickups FAQ.

Our approach was very simple, to make a hum-cancelling strat pickup that looks and sounds like a real single coil with minimal parts and adhering to actual vintage single coil attributes. We've matched the resonant peak frequency, and inductance of a vintage single coil, so they sit right in the frequency response and feel of a traditional single coil, without having to compensate for it. The HOT “Quiet Coil™” is still very much like a single coil with more midrange and bass for a heavier blues tone with sustain.

No batteries, stacked coils, or anything else associated with other hum-canceling pickups were used in our design. The result is simply the most pure and authentic strat tone possible, with absolutely no loss of true single coil tone. They are sonically clear and warm, with every bit of single coil sparkle and chime, just like true 1967 strat pickups.

NOTE: With all Mojotone “Quiet Coil™” pickups, you never have to worry about string spacing and radius issues, or the magnets pulling the strings out of tune, and you can bend the strings heavily without ever losing focus or sustain. All of this while achieving perfect single coil strat tone and absolutely no hum!

Quiet Coil Design Features...

  • Consistent scatterwound coils for that handwound tone, sensitivity, and clarity.
  • Vintage formulated Alnico magnet cores with lower Gauss levels like an aged vintage strat pickup.
  • Vintage cloth covered leads for easy push-back soldering.
  • Matched resonant peak frequency, inductance, and resistance of a vintage single coil.
  • Vintage staggered polepieces for a traditional strat pickup look.
  • No routing modifications are required to fit shallow vintage routs like the taller stacked hum-cancelling designs.
  • Less than 10 parts are used to build the Quiet Coils. Like a vintage strat pickup, they are SIMPLE!
Neck & Middle: 5.6K
Magnet: Alnico 5
Output:
4
Bass:
3.5
Mids:
3
Treble:
6.5
Bridge: 11.6K
Magnet: Alnico 5
Output:
5
Bass:
4.5
Mids:
6
Treble:
5


Videos Featuring This Product

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
8/29/2024 1:14 pm

58' Quiet Set Pickgaurd w/newer harness config!!!!

by Kenny

Ordered and recieved the '58 Quiet Coil pre-wired pg. My delivery was right about at 4 weeks from when I ordered.
Package: the boxing of the package is very clever. The outer box details even got a laugh from my wife. Usually, the box is something that gets thrown away after the install, but I'm keeping this- it' a good one!

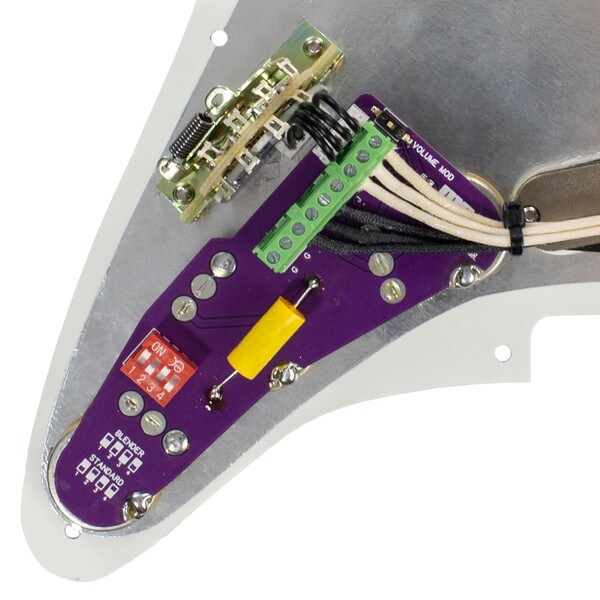

My order came with the newer wire-harness config with a simple explanation pic. I think the options that are explained cover what most players would want or chose. The "Blender" or the "EJ" options given were just what I needed. The install was very easy, no soldering, comes with a smaller terminal-block that uses set-screws (& it's own mini-screwdriver) to lock in the leads. Once done, I quickly threw on a set of new strings and got to play.
The sound/tone from these are very dynamic with lots of sparkle, maybe due to the added baseplates. Very vintage sounding with great balanced tone and punch.
Very happy with my purchase.....GREAT JOB GUYS!!
