Ampeg SVT Output Transformer Lay Down Version *SPECIAL ORDER*
Specs
Ampeg SVT Output Transformer *SPECIAL ORDER ONLY*
**LAY DOWN VERSION**
This unit can be made in either configuration.

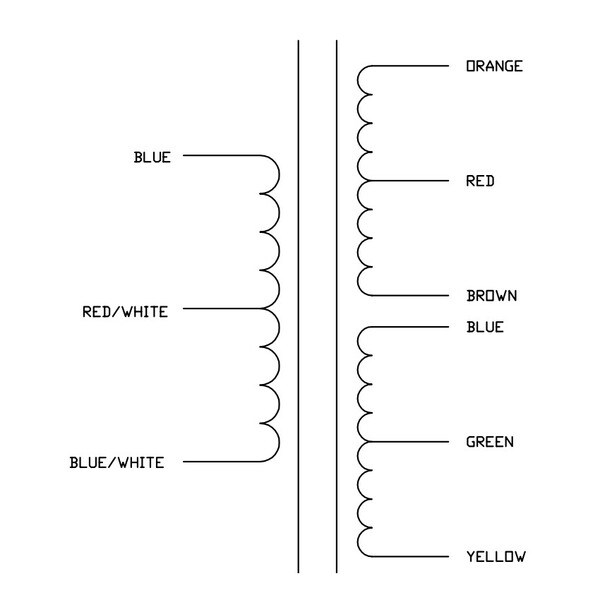

Primary: 1750 ohms, w/ center tap.
Red / White - Center Tap
Blue - Plate Connections
Blue / White - Plate Connections
Secondary 1: Yellow - 0, Green - Low Tap, Blue - High Tap
Secondary 2: Brown - 0, Red - Low Tap, Orange - High Tap
Secondaries are symetrical and can be hooked in parallel.

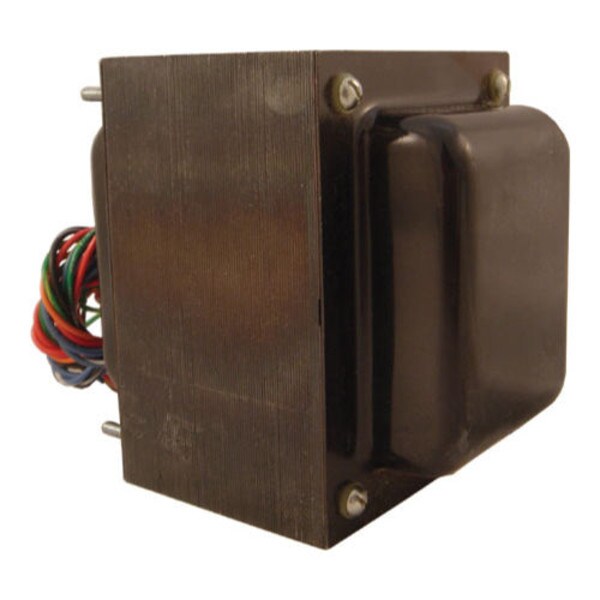

Note: Image is just a representation and is not the actual transformer since the transformer can be in a lay-down or stand-up format.
