Blackface Deluxe Reverb® Style Amplifier Kit

3Reviews
$860.00

Cabinet and Speaker Sold Separately (Add Below)
SKU: G1BDR092
Weight: 25.52 lb
Sale Unit: Piece

In Stock

1 IN STOCK

Amp Kit Difficulty Level

Easy

Hard

If this kit shows as out of stock please check here for more information.


Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.



One of our most popular amps, the Mojotone Deluxe Reverb Style Kit, is based on arguably the most widely used guitar amp of all time. Just about every iconic guitarist imaginable has played through a Deluxe Reverb at some point or another, but this amp has been specifically touted by artists such as Mike Campbell, Vince Gill, Jackson Brown, and even Elvis Costello.



Considered by some a perfect pedal platform amp, this simple 22 watt circuit pairs well with our Mojotone Anthem 12” speaker. This combination provides a foundation for crystal clear note separation with a full and warm body. Experience the classic chime of a Deluxe Reverb and take advantage of the multiple inputs, two channels, and beautiful onboard reverb and tremolo effects.



There are two inputs on the normal channel -- input 1 is slightly hotter than input 2 giving a guitarist the option to connect multiple guitars whose pickups have different output levels, without having to adjust the amp’s volume levels. The normal channel is extremely user friendly and straightforward with only three controls -- volume, treble, and bass. The Vibrato channel also has two inputs which work the same way as those on the normal channel. Similarly, the Vibrato channel contains volume, treble, and bass, but also houses the controls for reverb level as well as tremolo speed and intensity.

  • Class Type:AB All Tube Amplifier
  • Output:~22 Watts
  • Circuit:AB763
  • Bias Type:Fixed with an adjustable bias potentiometer
  • Build Time:~7 hours

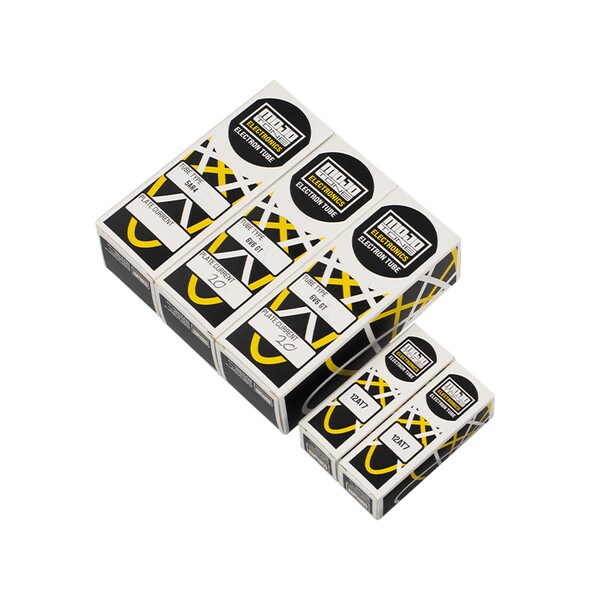

  • Preamp Tubes: ECC83/12AX7 (4), ECC81/12AT7 (2)
  • Output Tube(s): 6V6GT (2)
  • Rectifier Tube: 5AR4 / GZ34

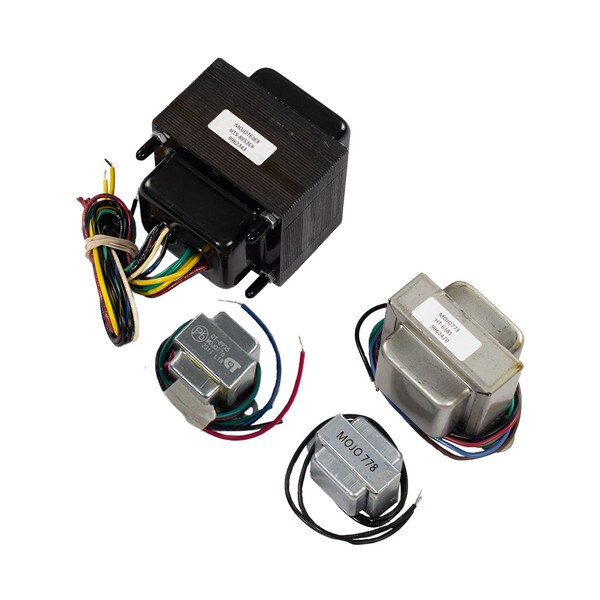

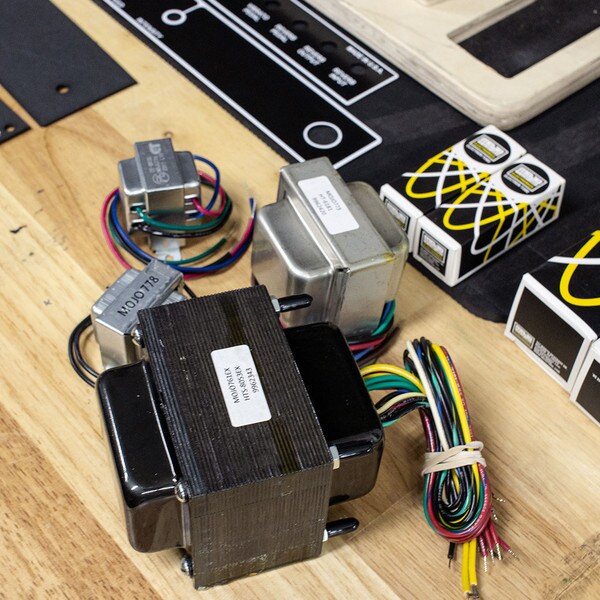

  • Transformers:Power - BF Deluxe Reverb (MOJO761EX), Output - BF Deluxe Reverb (MOJO773), Choke - Choke for 6V6 Amps (MOJO778), Reverb Driver - (MOJO776)

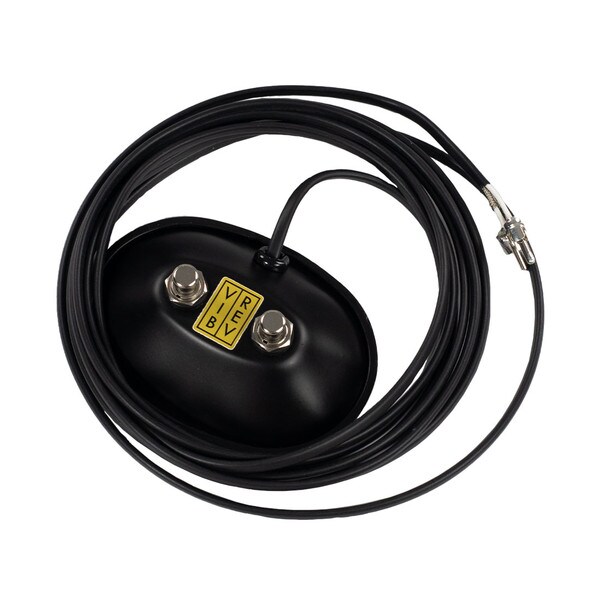

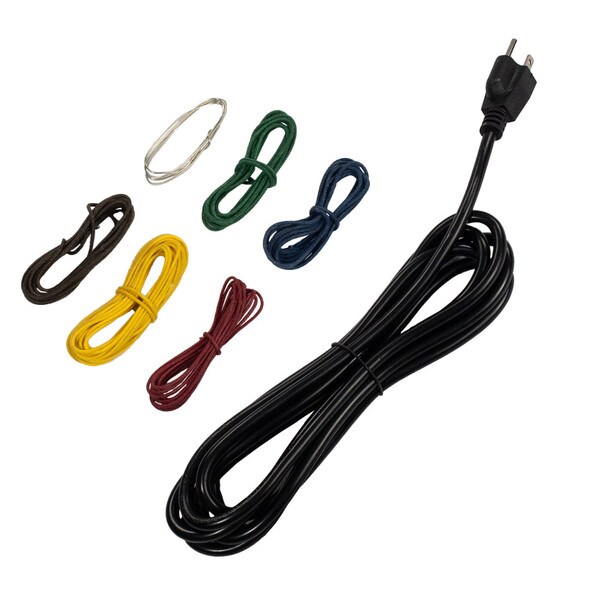

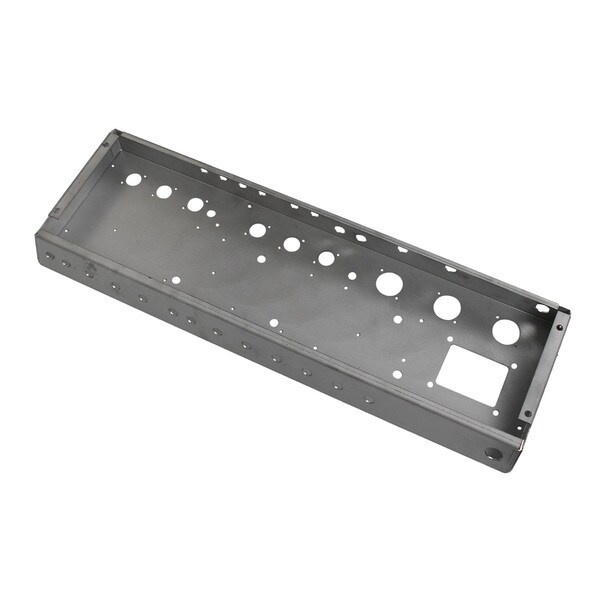

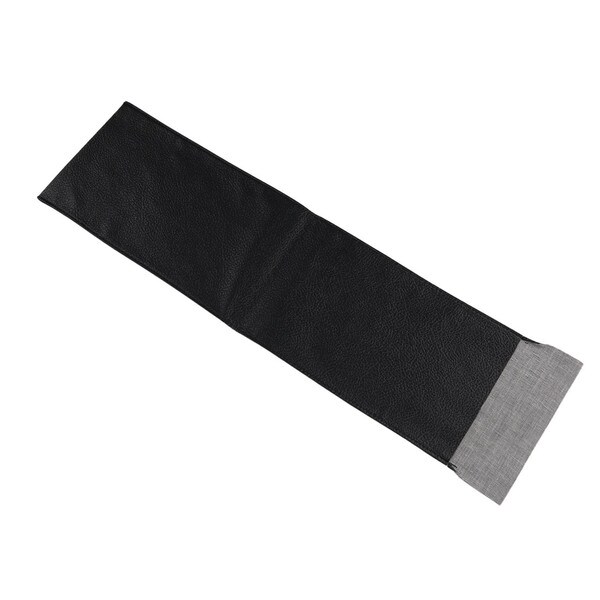

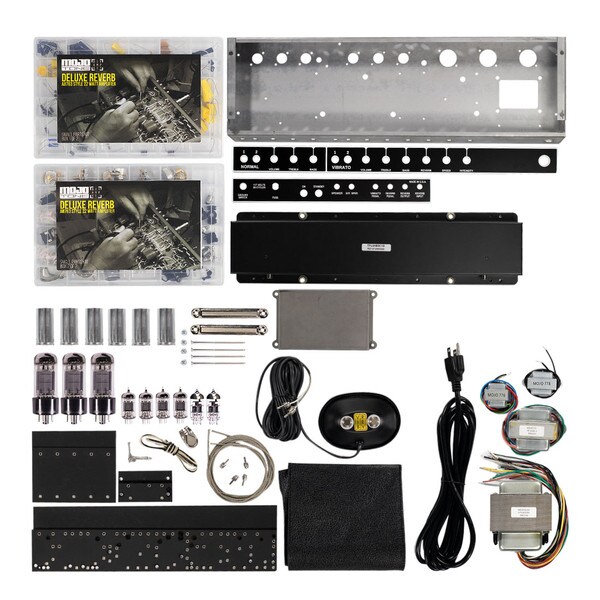

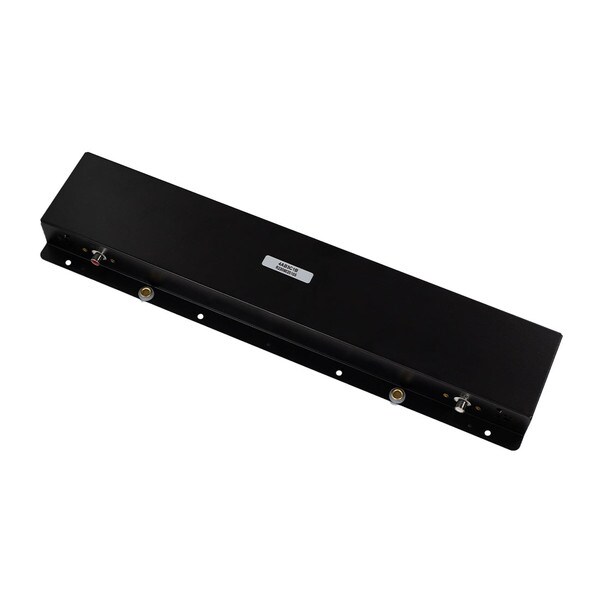

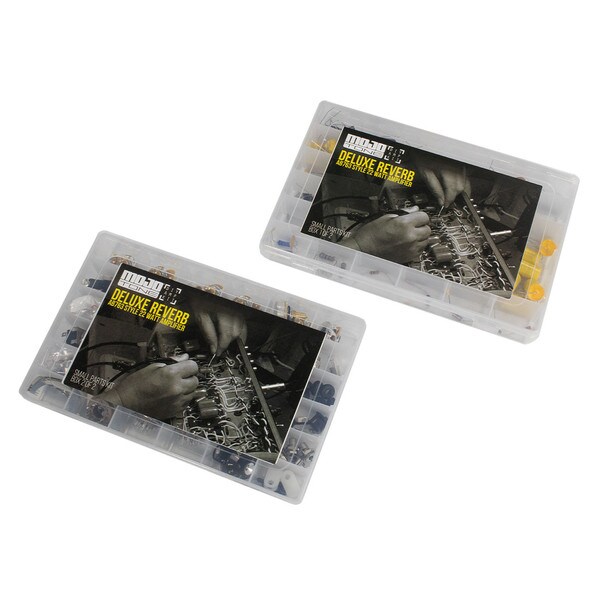

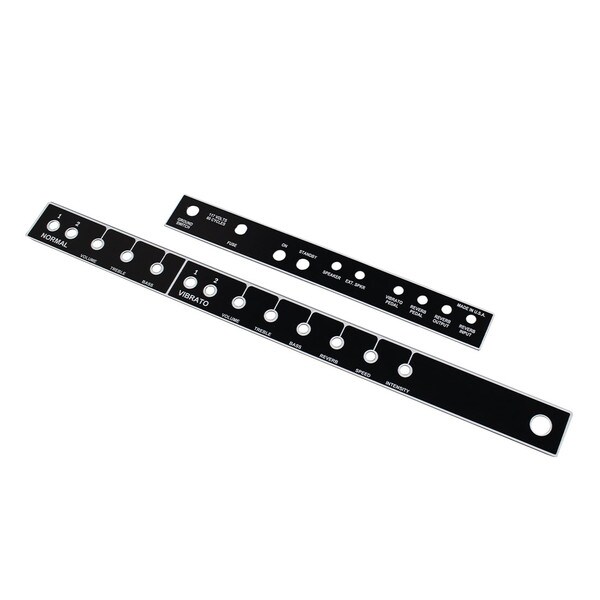

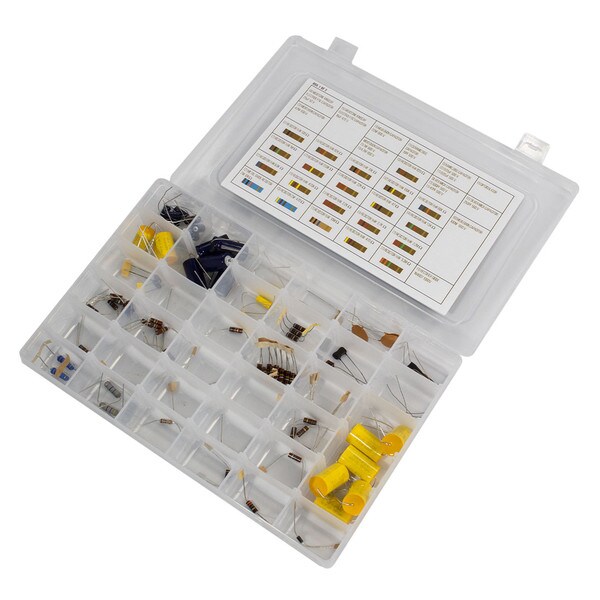

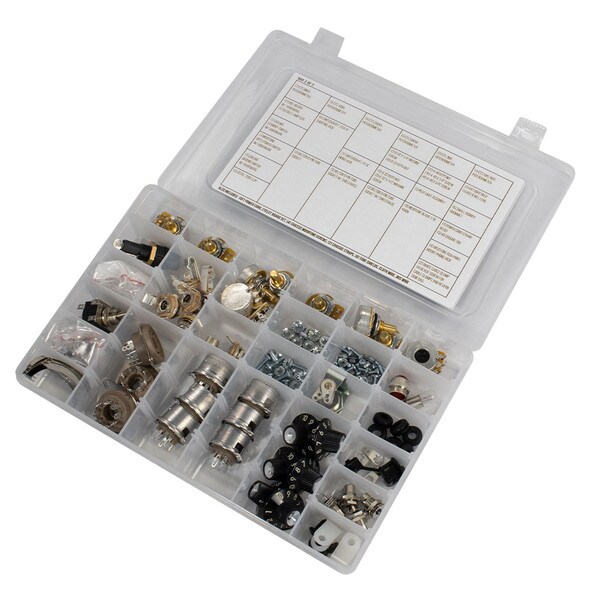

  • Hardware:Deluxe Reverb Small Parts Kit, Deluxe Reverb Chassis, Small Cap Pan, Front & Rear Faceplates, Fender style 2-button Footswitch, 4AB3C1B Reverb Tank, Black Tolex Reverb Bag, Vintage Reverb Wire Kit, 10' Install Power Cord


Disclaimer: Some of the parts contained in this kit are subject to availability.

Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.



When purchasing a kit from Mojotone, you will receive the following documentation.

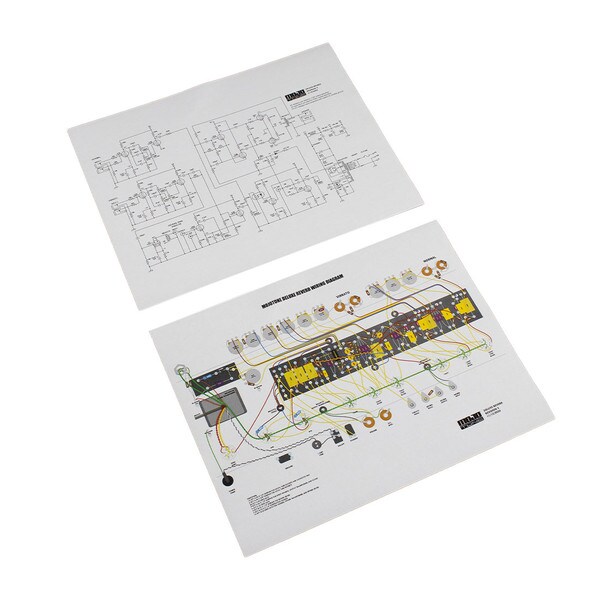

1. Schematic

2. Wiring Diagram / Layout

Our beginner level kits such as the tweed champ and tweed deluxe include a manual. If you purchase a kit from Mojotone and do not receive these documents, you can obtain copies by emailing tech@mojotone.com or calling 800-927-6656. The Mojotone staff is available Monday through Friday from 8:30 a.m. to 5:00 p.m. EST unless otherwise closed.



Mojotone kits include the best quality parts that are available at the time of purchase. If a substitution is required, our team will use parts that are of equal quality to ensure the integrity of the kit build remains the same.



Building a fully functional amplifier kit is not an easy task. Before building a kit, one should have the ability to properly solder as well as read and understand a schematic and wiring diagram. While we do our very best to ensure all documentation is current, the included documentation is meant to serve as an overall guide to building the amplifier. Simply following the schematic and wiring diagram does not guarantee you will have a fully functional amplifier. In fact, post build troubleshooting is a common issue across all builds.



Our staff is available to assist with basic troubleshooting needs. There are plenty of online videos available that are helpful with most post build issues. Technical staff is available via email by sending a message to tech@mojotone.com. You may also call our sales team to discuss build problems, dial 800-927-6656 and press 1 for sales.



Building a tube amplifier takes time, dedication, resources and most importantly... Skills! The experience of building an amp can come with some frustration, the reward of completing the build is definitely well worth your time. Please review the wiring diagram, schematic and manual (if applicable) prior to making your purchase. Mojotone will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.

This amp kit also comes with the following documents. Please feel free to view and/or download them:

Blackface Deluxe Reverb Schematic

Blackface Deluxe Reverb Wiring Diagram
