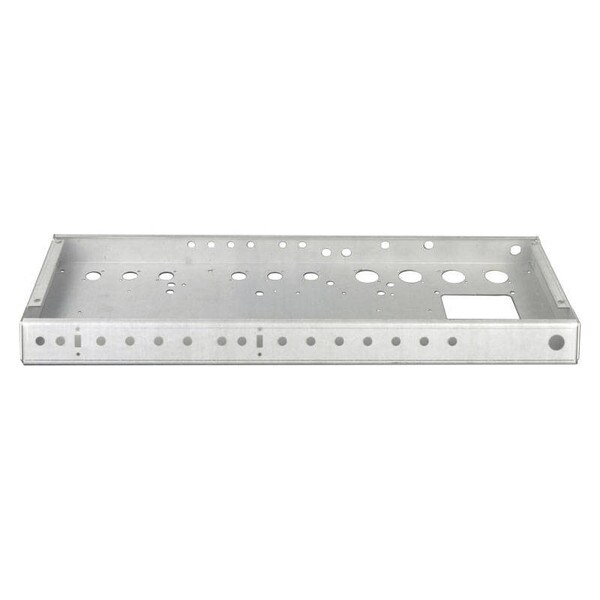

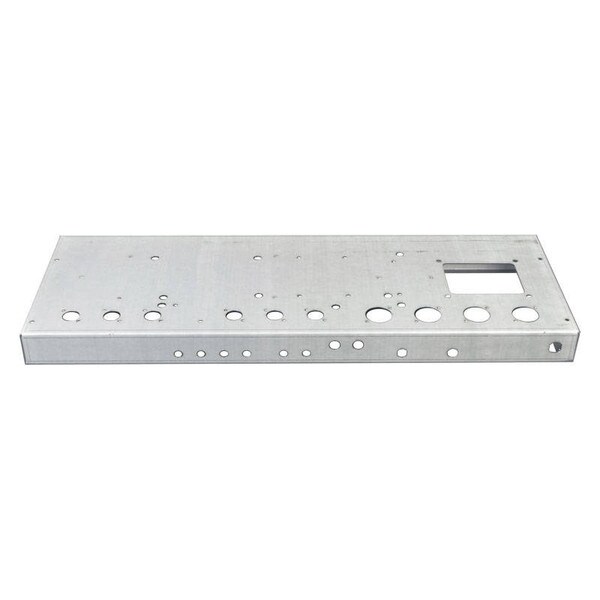

Blackface Twin Reverb AB763 Style Chassis
Mojotone reproduction chassis. Same size and style of Twin Reverb®
Please note: The mounting and rear hole pattern is not the same as the Fender® chassis.
- Material:16 Gauge Galvanneal Steel - 0.064” / 1
- Thickness:.61 Thickness
- Dimensions: (H) 1 ¾“ x (W) 24 ⅜“ x (D) 8 ¼“
- Weight: 4.2 lbs.
- Octal Socket Holes: 4
- 9-Pin Socket Holes: 6
- Power Transformer:MOJO763EX
- Output Transformer:MOJO775
- Reverb Driver:MOJO776
- Chassis Straps:Mojotone Large Chassis Straps 4-5/8"
- Faceplates:Faceplate / Backplate sold separately
- Chassis Mounting: 23 5/8" x 5" center to center
Ratings & Reviews
My amp was completely ruined in a terrible flood. I asked a local amp repair shop about what to do... mine was irreplaceable. He recommended Mojotone. I called in and all my questions were answered. My new Mojotone twin reverb chassis arrived in no time and my amp tech is in process of building me a new amp! Thanks guys!
