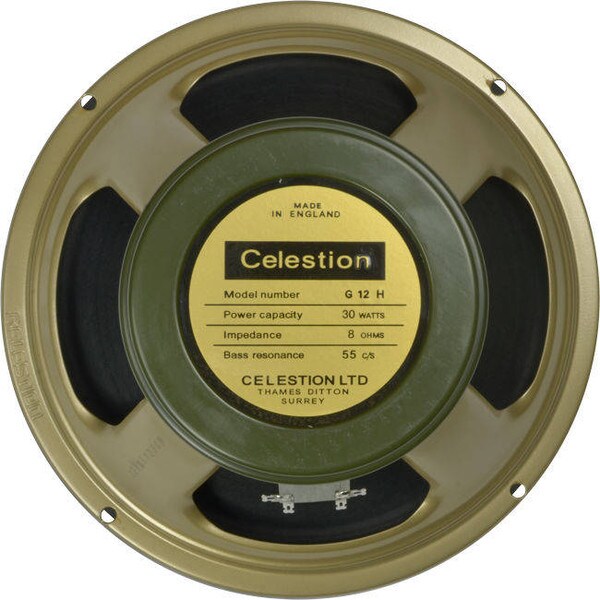

Celestion G12H Heritage 55hz 12'' Speaker 8 Ohm 30W

2Reviews
$198.99
SKU: 1000107
Weight: 8 lb
Sale Unit: Piece

Temporarily Out of Stock

If the G12M was to become a classic, it was the G12H with its heavier magnet that really characterised the sound of rock guitar for the new breed of player that emerged in the 1960s. Listen to any Hendrix recording and the chances are you’re hearing the unmistakably creamy tones of the G12H. Originally available in two versions – low resonance for bassists and high resonance for guitarists – both were in fact embraced by guitar players for their unique tonal characteristics.
General Specifications
  • Nominal diameter: 12", 305mm
  • Power Rating: 30W
  • Nominal impedance: 8Ω and 15Ω
  • Sensitivity: 100dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44.5mm
  • Voice coil material: Round copper
  • Magnet type: Ceramic
  • Magnet weight: 50oz, 1.42kg
  • Frequency range: 55-5000Hz
  • Resonance frequency, Fs: 55Hz
  • DC resistance, Re: 6.53Ω & 12.11Ω

Mounting Information
  • Diameter: 12.2", 309mm
  • Overall depth: 5.3", 135mm
  • Magnet structure diameter: 6.6", 168mm
  • Cut-out diameter: 11.1", 283mm
  • Mounting slot dimensions: 0.31", 7.9mm Ø
  • Number of mounting slots: 4
  • Mounting slot PCD: 11.7", 297mm
  • Unit weight: 10.4lb, 4.7kg

Ratings & Reviews

2 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
1/14/2022 5:26 pm

One of the best Celestion speakers made. Great low end and delivers superb tone across mids and highs.

by vivek godrej -

I got this recently for my tube amp and could not be happier with the tone. After the break-in period, this speaker delivers fantastic lows and superb mid and highs. It is one of the absolute best Celestion speakers. They have unfortunately discontinued this model.

2/17/2021 1:13 pm

1000107

by anonymous

Great speaker and super fast service! You guys rock!
