British Style NC3015 Amplifier Kit

1 Review
$524.00
SKU: G1NC3015
Weight: 20 lb
Sale Unit: Piece

Please check our Resources page for current lead times.

On Back Order

Kit Build Difficulty:
Easy

Difficult


This kit has a lead time. Check here for more information.


Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.


INSPIRATION
Inspired by some of history's most iconic British amps (and a couple of unmatched boutique ones) the Mojotone NC3015 is one of our most unique and articulate amps yet. Based on a familiar Class A EL84 platform, this amp delivers tones that salute some of the greatest guitarists of all time. Whether you're looking for the shimmering highs of George Harrison or Brian May, the jangle and chime of Mike Campbell, or the vintage crunch of bands like The Kinks, the careful design and component choice of the NC3015 will not leave you wanting.

The jumping off point for the NC3015 was the tone stack/preamp section of a classic Mid 60s 30-Watt EL84 AC type amp married with a 15-Watt power amp- hence the name NC3015, We felt this would give players the tonal control they wanted and the power amp saturation they desired without being too loud for most applications.

SOUND & VISION

The NC3015 utilizes two EL84 power tubes and three 12AX7 preamp tubes –delivering 15 Watts of classic EL84/AC tone reminiscent of the famed glassy British sound without being too harsh or sterile. We chose an EZ81 tube rectifier for slight compression at higher SPLs.For our kit, we chose our Mojotone BV-30V 60W speaker to complete the British vibe. It has a nice smooth tone at lower volumes and breaks up beautifully as you increase the amp's volume.

Enjoy the balanced sound and ease of use of the normal channel (high and low inputs with single volume control), or switch to the top boost channel for a slightly more aggressive sound with additional tone controls (high and low inputs with volume, treble, and bass controls). The amp also features a "top cut" control that works with both channels to give you a variety of sonic profiles to work with. We excluded tremolo and reverb in this kit as we wanted to provide a straight up, easy to build, easy to use amp that has great EL84 AC Type tones.

Build Times:
Novice: 7 hours, Expert: 4 hours
Build Difficulty: 6 out of 10 (10 being the hardest - think Twin Reverb)

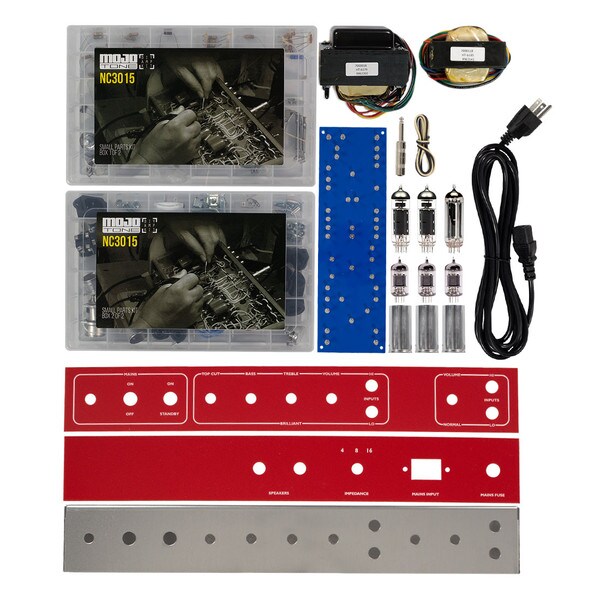

  • Class Type:A All Tube Amplifier
  • Output:~15 Watts
  • Circuit:*C30 / *C15
  • Bias Type:Cathode Biased
  • Build Time:~7 hours

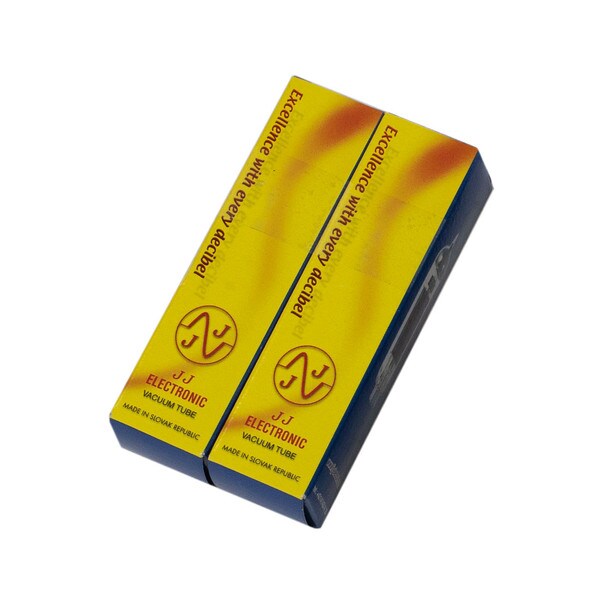

  • Preamp Tubes:JJ ECC83/12AX7 (3)
  • Output Tube(s):JJ EL84 (2)
  • Rectifier Tube:JJ EZ81 (1)

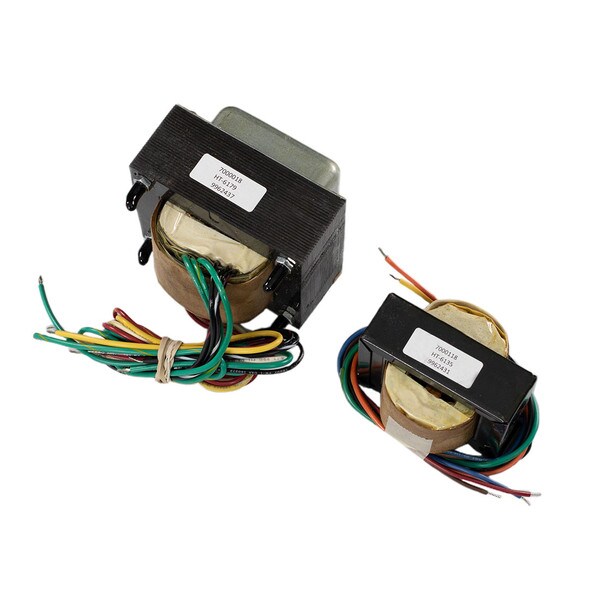

  • Transformers:Power - British 18W (7000018), Output - British 18W (7000118)

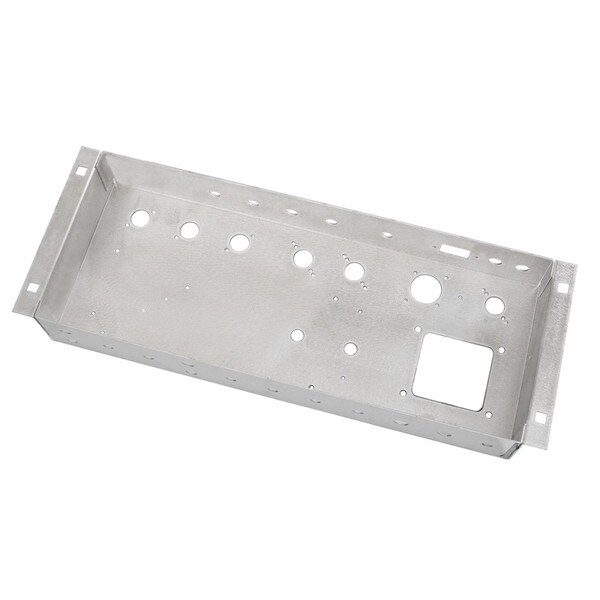

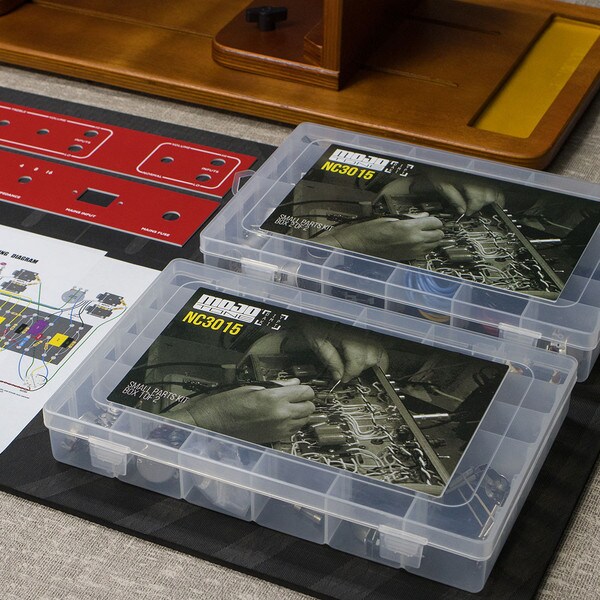

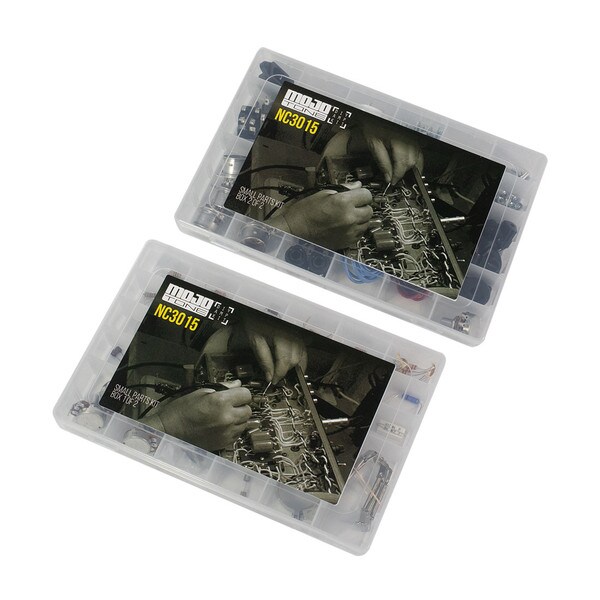

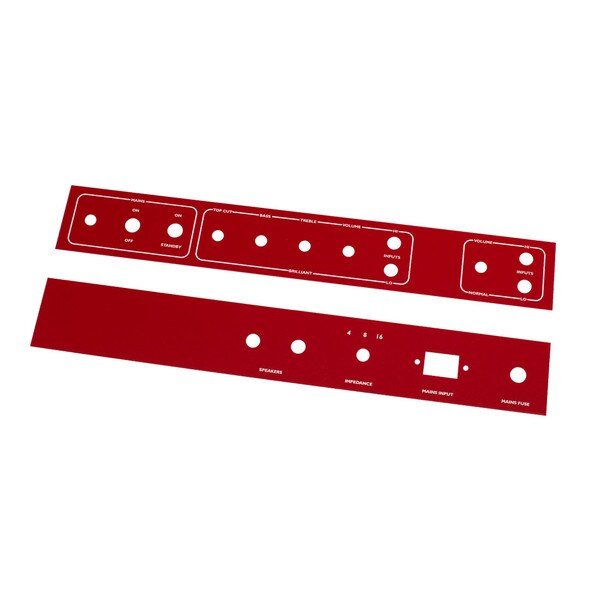

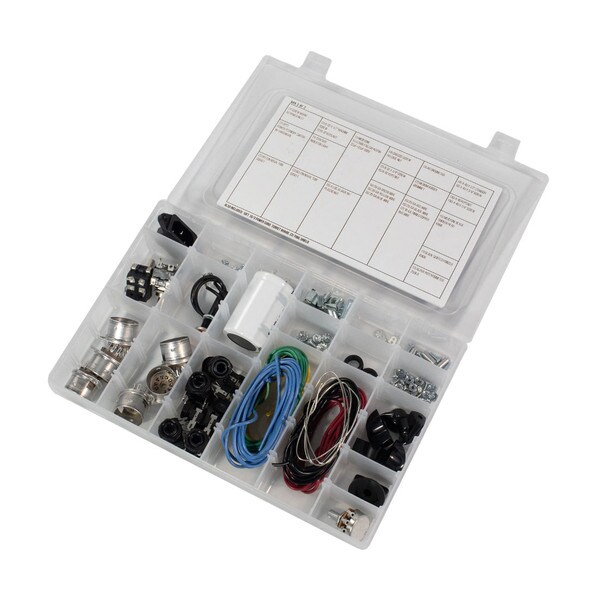

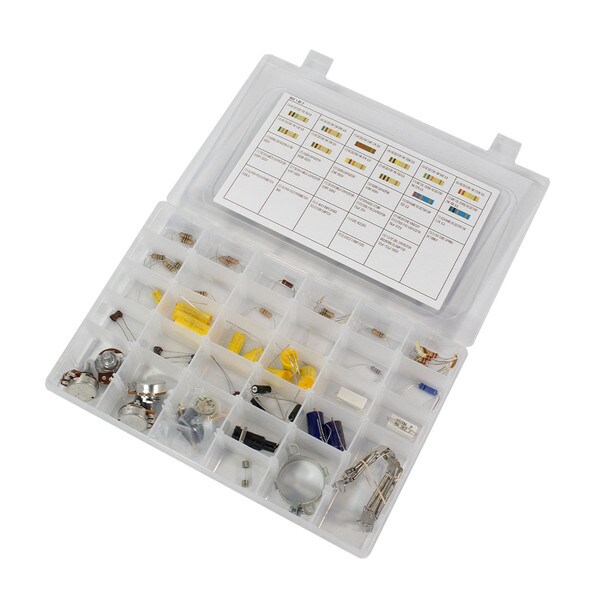

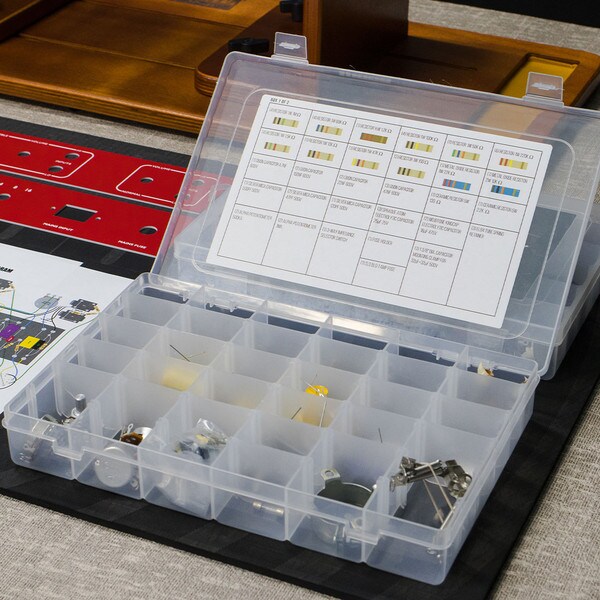

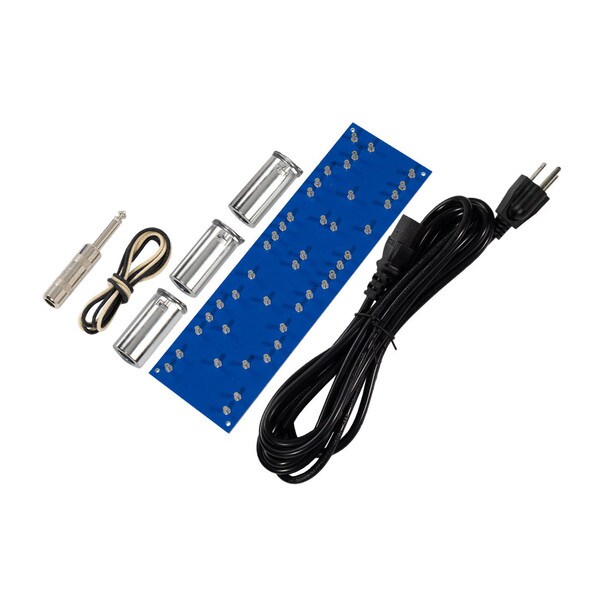

  • Hardware:Mojotone NC3015 Small Parts Kit, British 18W Chassis, Front & Rear Faceplates, 10' Removable Power Cord

Disclaimer: Some of the parts contained in this kit are subject to availability.

Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.

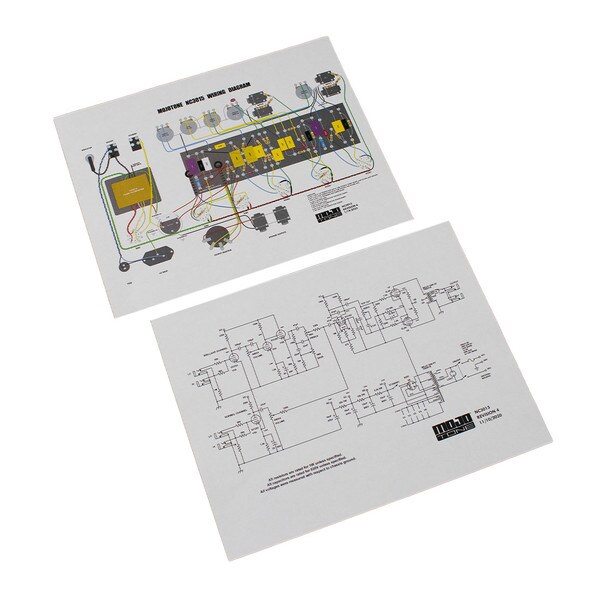

When purchasing a kit from Mojotone, you will receive the following documentation.

1. Schematic

2. Wiring Diagram / Layout

Our beginner level kits such as the tweed champ and tweed deluxe include a manual. If you purchase a kit from Mojotone and do not receive these documents, you can obtain copies by emailing tech@mojotone.com or calling 800-927-6656. The Mojotone staff is available Monday through Friday from 8:30 a.m. to 5:00 p.m. EST unless otherwise closed.


Mojotone kits include the best quality parts that are available at the time of purchase. If a substitution is required, our team will use parts that are of equal quality to ensure the integrity of the kit build remains the same.


Building a fully functional amplifier kit is not an easy task. Before building a kit, one should have the ability to properly solder as well as read and understand a schematic and wiring diagram. While we do our very best to ensure all documentation is current, the included documentation is meant to serve as an overall guide to building the amplifier. Simply following the schematic and wiring diagram does not guarantee you will have a fully functional amplifier. In fact, post build troubleshooting is a common issue across all builds.


Our staff is available to assist with basic troubleshooting needs. There are plenty of online videos available that are helpful with most post build issues. Technical staff is available via email by sending a message to tech@mojotone.com. You may also call our sales team to discuss build problems, dial 800-927-6656 and press 1 for sales.


Building a tube amplifier takes time, dedication, resources and most importantly... Skills! The experience of building an amp can come with some frustration, the reward of completing the build is definitely well worth your time. Please review the wiring diagram, schematic and manual (if applicable) prior to making your purchase. Mojotone will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.

The following documents are included. Please feel free to view and/or download them:


NC3015 Schematic
NC3015 Wiring Diagram

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
5/9/2022 3:50 pm

Killer AC30 Tone

by JR -

This review is for the NC3015 kit without the cabinet and speaker. I used the Rev 5 drawings and everything fired up and worked great right off the bat.

I had an old AC15CC cabinet and a very broken in 16 year old Celestion Blue inside that I decided to repurpose for the NC3015 chassis. I wish I could post pictures here but I’ll get some up on the Mojotone FB page…anyway it all came together and the amp sounds incredible…VERY Vox-y and articulate. My early favorite tone from this amp is jumpering the Normal and Brilliant channels together. The Normal channel is big and thick and the Brilliant channel gives the classic Vox sound. The Top Cut effects both channels and the Bass and Treble pots on the Brilliant channel are very interactive just like the AC30 tone stack it emulates.
