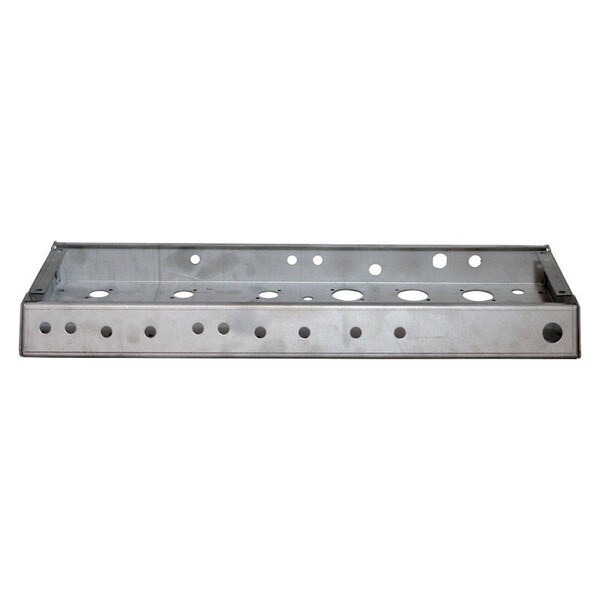

Brown Deluxe Style 6G3 Chassis
Mojotone reproduction chassis. Same size and style as Brown Deluxe®
Please note: The mounting and rear hole pattern is not the same as the Fender® chassis.
- Material:16 Gauge Galvanneal Steel - 0.064”
- Thickness:1.61mm Thickness
- Dimensions: 1 ¾“ (H) x 19 ¼“ (W) x 7“ (D)
- Weight: 3.5 lbs.
- Octal Socket Holes: 3
- 9-Pin Socket Holes: 3
- Power Transformer:MOJO756EXSP
- Output Transformer:MOJO768SP
- Chassis Straps:Mojotone Medium Chassis Straps 4 ⅝”
- Faceplates: Faceplate/ Backplate sold separately
- Chassis Mounting: 18 1/2" x 4" center to center
Ratings & Reviews
1 review
it will make the amp sound even better once I get everything together!
by anonymous
A buddy of mine gave me an old Brownface Deluxe cabinet a couple years back because he converted his original into a head and no longer needed the combo cabinet. That cabinet sat in my garage since until recently when I found this chassis to throw into the cabinet. I see they have an amp kit for the original 6G3 circuit but given my cash flow, I'll have to buy it one piece at a time. I don't mind though, it will make the amp sound even better once I get everything together!
