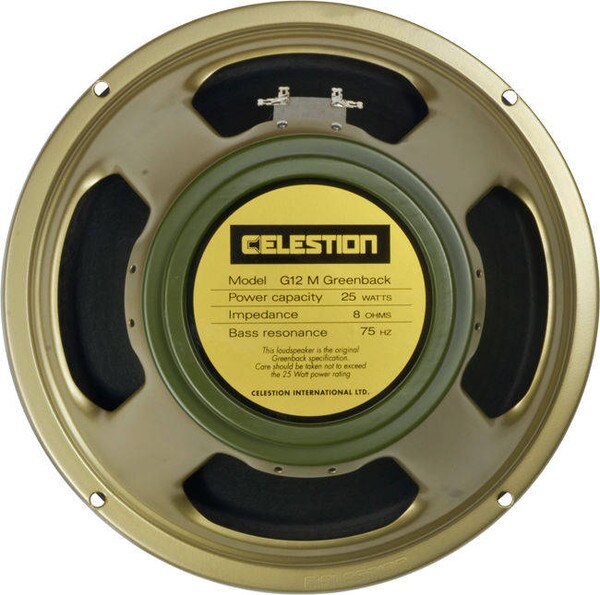

Celestion G12M Greenback 12'' Speaker 8 Ohm 25W

(0) No Reviews yet
$125.00
SKU: 1000029
Weight: 8 lb
Sale Unit: Piece

In Stock

Specs

Celestion's first guitar loudspeaker featuring a ceramic magnet structure, the G12M Greenback presented almost as much magnetic flux to the voice coil as an Alnico formulation, but in a much more compact space. As a result the Greenback became the guitar loudspeaker that paved the way for use with higher power amplifiers. And, of course, the ceramic magnet presented its own unique tonal characteristics.

The Greenback has a loud and assertive character that sounds great through a valve amp pushed into overdrive. The speaker has evolved over the decades and still presents that instantly familiar woody tone, delivered with a knock-out punch.

General Specifications
  • Nominal diameter: 12", 305mm
  • Power Rating: 25W
  • Nominal impedance: 8Ω and 16Ω
  • Sensitivity: 98dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44.5mm
  • Voice coil material: Round copper
  • Magnet type: Ceramic
  • Magnet weight: 35oz, 0.99kg
  • Frequency range: 75-5000Hz
  • Resonance frequency, Fs: 75Hz
  • DC resistance, Re: 6.7Ω & 13.1Ω

Mounting Information
  • Diameter: 12.2", 309mm
  • Overall depth: 5.1", 130mm
  • Magnet structure diameter: 5.9", 150mm
  • Cut-out diameter: 11.1", 283mm
  • Mounting slot dimensions: 0.31", 7.9mm Ø
  • Number of mounting slots: 4
  • Mounting slot PCD: 11.7", 297mm
  • Unit weight: 7.9lb, 3.6kg
