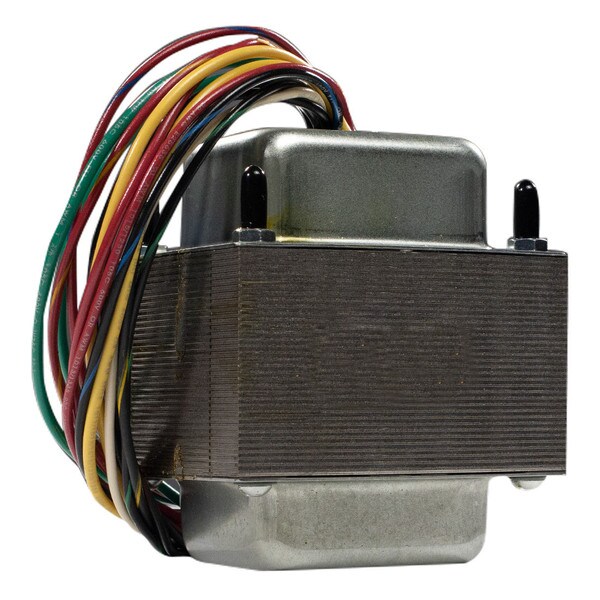

Deluxe Reverb Power Transformer 125P23B

Replacement for Fender part numbers 125P23B, 125P33A, 125P23D, 025130, and 022749.

Primary: 100/120/220/230/240VAC
Z Mount: 2-7/8'' x 2-1/4'' centers.

Paper bobbin / high-grade steel

Pro Tip on the Primary Leads

All Mojotone transformers are made in the USA. Quality, Reliability, and Excellence are what make our transformers the best around.

To repair techs: If you require a replacement transformer for your customer's vintage amp that won't degrade its value, then take comfort in knowing Mojotone transformers are manufactured on the same equipment and from the same materials as the original part.  Our transformers look, smell, and perform like the original without a high price tag.

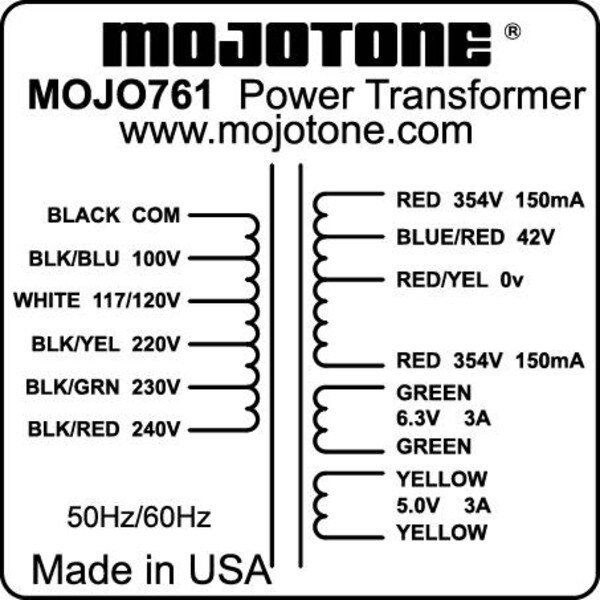

Please use caution when referencing our current wiring diagrams. Mojotone transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojotone is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojotone transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.
