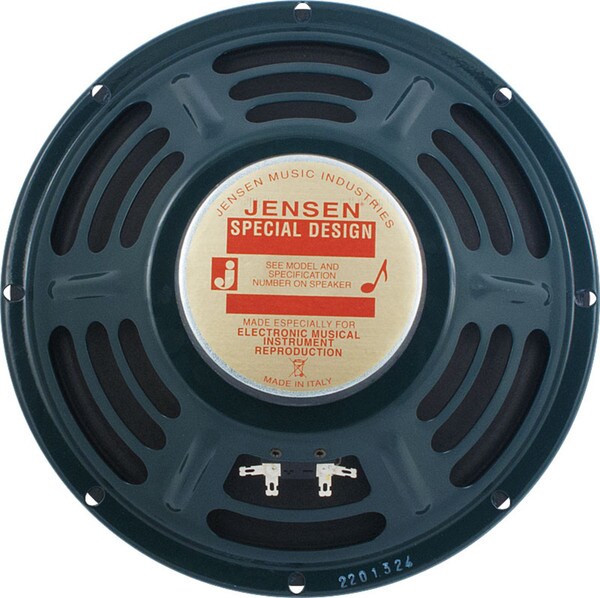

Jensen C10Q 35W 10'' Replacement Speaker 8 OHM

(0) No Reviews yet
$57.46
SKU: 4014100
Weight: 4 lb
Sale Unit: Piece

In Stock

4 IN STOCK

The 35 Watt C10Q is slightly stronger than the C10R. This helps the speaker produce a smoother break up when driven. Straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.
  • Overall Diameter: 10 in
  • Voice Coil Diameter: 1.25 in
  • Magnet Weight: 15 oz
  • Overall Weight: 3.65 lbs
  • Flux Density: 0.92 T


Thiele-Small Parameters
  • Voice Coil DC Resistance: 6.0 Ω
  • Resonance Frequency: 96.0 Hz
  • Mechanical Q Factor: 11.57
  • Electrical Q Factor: 1.34
  • Total Q Factor: 1.20
  • Mechanical Moving Mass: 16.6 g
  • Mechanical Compliance: 168 µm/N
  • Force Factor: 6.68 Wb/m
  • Acoustic Volume: 25.7 lt.
  • Max Linear Displacement: 1.5 mm
  • Reference Efficiency: 1.61 %
  • Diaphragm Area: 330.0 cm2
  • Electrical Resistance: 52 Ω
  • Voice Coil Inductance @ 1kHz: 0.62 mH


Constructive Characteristics
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel


Electrical Characteristics
  • Nominal Impedance: 8 Ω
  • Rated Power: 35 W
  • Musical Power: 70 W
  • Sensitivity@1W,1m: 95.2 dB
