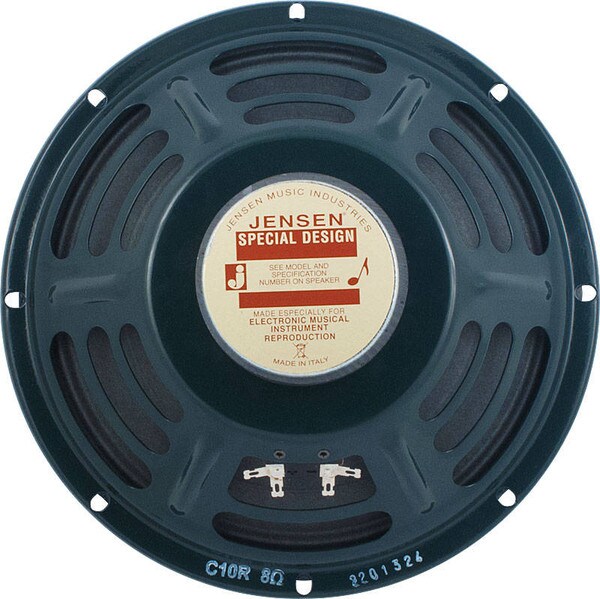

Jensen C10R 25W 10'' Replacement Speaker 8 OHM

(0) No Reviews yet
$52.52
SKU: 4014104
Weight: 4 lb
Sale Unit: Piece

Temporarily Out of Stock

The 25 Watt C10R is a ceramic magnet speaker. Colorful bell-like chime which transitions into a gritty response when presented with overdrive distortion.
  • Overall Diameter: 10 in
  • Voice Coil Diameter: 1 in
  • Magnet Weight: 10 oz
  • Overall Weight: 2.65 lbs
  • Flux Density: 1 T


Thiele-Small Parameters
  • Voice Coil DC Resistance: 6.7 Ω
  • Resonance Frequency: 96.6 Hz
  • Mechanical Q Factor: 9
  • Electrical Q Factor: 1.66
  • Total Q Factor: 1.47
  • Mechanical Moving Mass: 17.6 g
  • Mechanical Compliance: 154 µm/N
  • Force Factor: 6.42 Wb/m
  • Acoustic Volume: 23.8 lt.
  • Max Linear Displacement: 0.8 mm
  • Reference Efficiency: 1.50 %
  • Diaphragm Area: 330.1 cm2
  • Electrical Resistance: 42 Ω
  • Voice Coil Inductance: 0.53 mH

Constructive Characteristics
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Kapton
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel

Electrical Characteristics
  • Nominal Impedance: 8 Ω
  • Rated Power: 25 W
  • Musical Power: 50 W
  • Sensitivity@1W,1m: 93.6 dB
