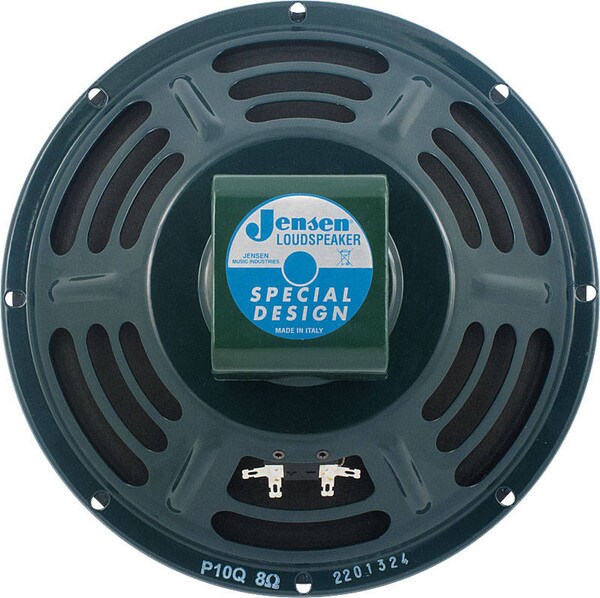

Jensen P10Q 35W 10'' Replacement Alnico Speaker 8 OHM

(0) No Reviews yet
$136.50
SKU: 4014103
Weight: 3.76 lb
Sale Unit: Piece

Temporarily Out of Stock

The 40 watt P10Q is an alnico magnet speaker that is focused on emphasizing mid range. This speaker can handle 40 watts of power with warm tone and smooth mids. Warm tone with some bite in the mid frequencies which translates into a fierce response to overdrive distortion.
  • Overall Diameter: 10 in
  • Voice Coil Diameter: 1.25 in
  • Magnet Weight: 10.50 oz
  • Overall Weight: 3.52 lbs
  • Flux Density: 1.05 T


Thiele-Small Parameters
  • Voice Coil DC Resistance: 5.57 Ω
  • Resonance Frequency: 89.9 Hz
  • Mechanical Q Factor: 9.96
  • Electrical Q Factor: 1.96
  • Total Q Factor: 1.44
  • Mechanical Moving Mass: 19.7 g
  • Mechanical Compliance: 159 µm/N
  • Force Factor: 6.07 Wb/m
  • Acoustic Volume: 24.4 lt.
  • Linear Displacement: 1.0 mm
  • Reference Efficiency: 1.01%
  • Diaphragm Area: 330.1 cm2
  • Electrical Resistance: 32.9 Ω
  • Voice Coil @ 1kHz: 0.52 mH


Constructive Characteristics
  • Magnet: Alnico
  • Voice Coil Winding: Copper
  • Voice Coil Former: Nomex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel


Electrical Characteristics
  • Nominal Impedance: 8 Ω
  • Rated Power: 40 W
  • Musical Power: 80 W
  • Sensitivity@1W,1m: 93.8 dB
