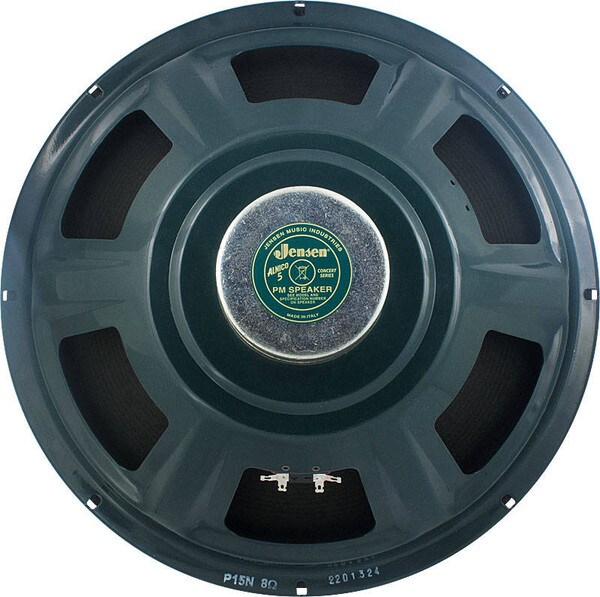

Jensen P15N 50W 15'' Replacement Alnico Speaker 8 OHM (Bell Sold Separately)
The 50 Watt P15N 8 Ohm Speaker is an alnico speaker that produces a warm, smooth breakup when over-driven by an amplifier.Bell Sold Separately.
- Overall Diameter: 15 in
- Voice Coil Diameter: 1.50 in
- Magnet Weight: 29.00 oz
- Overall Weight: 8.60 lbs
- Flux Density: 1.26 T
Thiele-Small Parameters
- Voice Coil DC Resistance: 6.22 Ω
- Resonance Frequency: 77.9 Hz
- Mechanical Q Factor: 6.80
- Electrical Q Factor: 1.36
- Total Q Factor: 1.22
- Mechanical Moving Mass: 53.9 g
- Mechanical Compliance: 78 µm/N
- Force Factor: 10.49 Wb/m
- Acoustic Volume: 62.6 lt.
- Linear Displacement: 1 mm
- Reference Efficiency: 2.62%
- Diaphragm Area: 754.8 cm2
- Electrical Resistance: 50.0 Ω
- Voice Coil @ 1kHz: 0.90 mH
Constructive Characteristics
- Magnet: Alnico
- Voice Coil Winding: Copper
- Voice Coil Former: Kapton
- Cone: Paper
- Surround: Integrated Paper
- Dust Dome: Solid Paper
- Basket: Pressed Sheet Steel
Electrical Characteristics
- Nominal Impedance: 8 Ω
- Rated Power: 50 W
- Musical Power: 100 W
- Sensitivity@1W,1m: 96.1 dB
