#MOJO1580
Sold Out This item is currently out of stock.

Clone of the Wright 1580 10K to 4-8-16 - 12BH7/12AU7 PP Output Transformer

Mojo Clone of the Wright 1580 10K to 4-8-16 - 12BH7/12AU7 PP Output Transformer


The Mojo 1580 is actually from a tear down of a Wright 1580 output transformer that was brought to us by Carl Williams of Anchovy amps. Carl has been working with 12bh7 output sections and other low wattage output designs for a while now and his refinements have resulted in the following application schematics for the MOJO1580 which he has released for public use. Thanks Carl.


All Mojotone Transformers are made in the USA. Quality, Reliability, and Excellence are what make our transformers the best around.
$52.95
Shipping calculated at checkout.

Real support from real techs

$5 U.S. shipping over $99

Trusted by guitarists for 25+ years

Built By Players

SPECS

Weight: lb
DOCUMENTATION

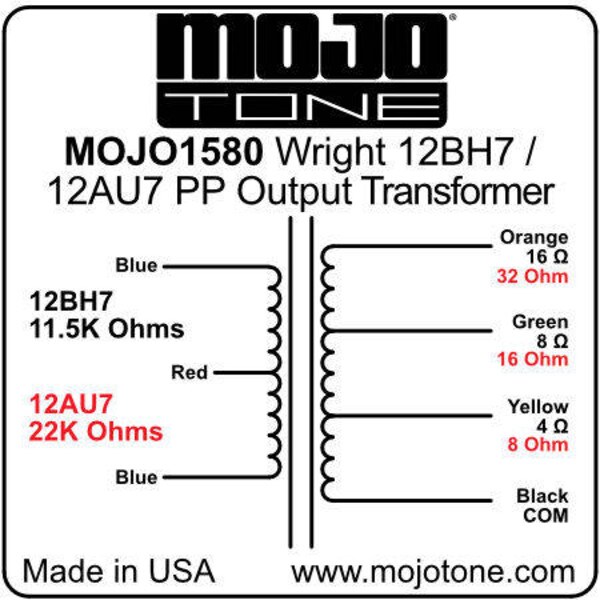

Wiring Diagram
Clone of the Wright 1580 10K to 4-8-16 - 12BH7/12AU7 PP Output Transformer
Clone of the Wright 1580 10K to 4-8-1... $52.95
