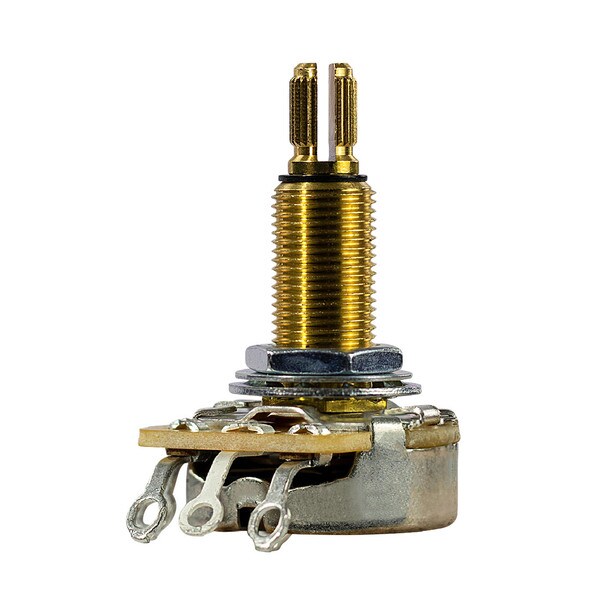

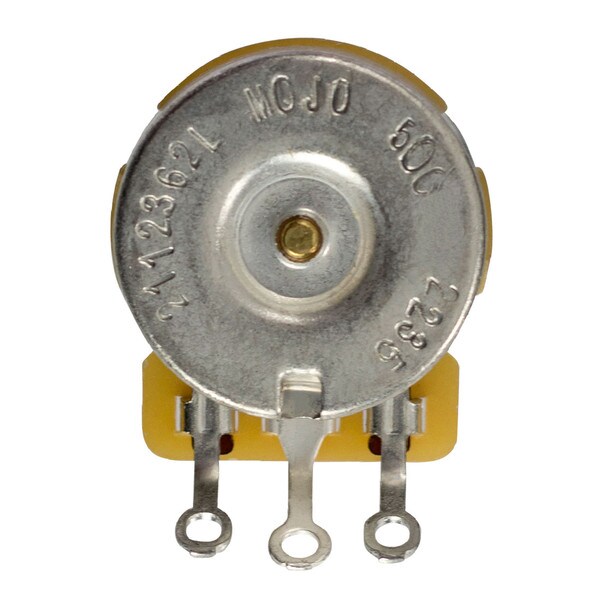

Mojotone Vintage Taper CTS 500K Long/Split Shaft Guitar Potentiometer
Mojotone vintage taper pots are made to the highest quality specifications possible by CTS. These pots are made specifically for guitars and their custom taper is superior to that of standard audio taper potentiometers. Every component in your guitar is just as important as the next so we made sure we could provide you with the best possible potentiometer for a beautiful and versatile sweep. We didn't look over a single detail and you won't find a better quality CTS potentiometer anywhere!
Custom taper (30% Audio)
10%+/- resistance tolerance
Dished back
Lowest torque possible! Effortless turning!
Solid brass shaft and bushing
C-Clip reinforced shaft
Beveled edge split shaft for easy knob push on
- Series 450G 24mm Guitar Potentiometer
- Robust Construction
- Proprietary Anti-Static Lube
- Brass Shaft & Bushing
- Smooth Rotational Feel
- Reduced Shaft Wobble
- Solderable Rear Cover
- Low Noise Output Description
- The Series 450G Guitar Potentiometer is the same robust high-quality guitar potentiometer that has become the industry standard for top guitar manufacturers. Featuring reduced shaft wobble, low noise output, and smooth rotational feel, the Series 450G is supplied with standard tin-plated rear cover and solder lug terminals.
Ratings & Reviews
8 reviews
Great Les Paul Pot, but read about spline shaft modification review for Les Paul Knobs.
by dparsons
These pots work great and sound great and are a good price. However, the factory Les Pauls, the spline shaft is exactly 2 mm shorter than this standard split spline shaft. This has a standard split spline tip length, so on a Les Paul, it is going to make the knob stick up in the air. Very easy for me to fix... I put on a pair of safety goggles and a Hazmat suit and used a bench top grinder and carefully ground down 2 mm on the spline shaft tip using the medium course wheel. Fine wheels cause more heat. Check length with a caliper after just a moment of light grinding. Keep the tip FLAT. Then, with a very fine metal file, I filed the chamfer back into the tip, and smoothed out the top. Buy an extra one in case you make a mistake. The result was that it looked exactly like the Les Paul split spline tips and the control knobs were perfect height. Don't use a Dremel tool or a hand grinder. Use a BENCH grinder.
Nice wide taper giving you total control.
by Jake
Yo!!! If you're looking for a pot that gives you far more control over your gain this is it! I never write reviews but for the sake of helping out somebody that is looking for a pot that will allow you a nice wide range to get different levels of gain using just your volume knob, just buy it! Easily the best volume taper I have ever used. Do not worry about the low resistance it feels great and stays put. I replaced a 500k Gibson pot with this and its lights out better.
