Mojotone Custom 100 Amplifier Kit
This kit has a lead time. Check here for more information.
Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.
The design was a labor of love that started in a garage in New Malden, England. It quickly grew in local popularity, and made its way to the stage behind big names like the Who, Pink Floyd, Jethro Tull, the Moody Blues, and Manfred Mann. The legendary DR103 is synonymous with big, clean, and powerful.
Skilled amp builders, try your hand at recreating this sonic icon with our Mojotone Custom 100 amplifier kit.

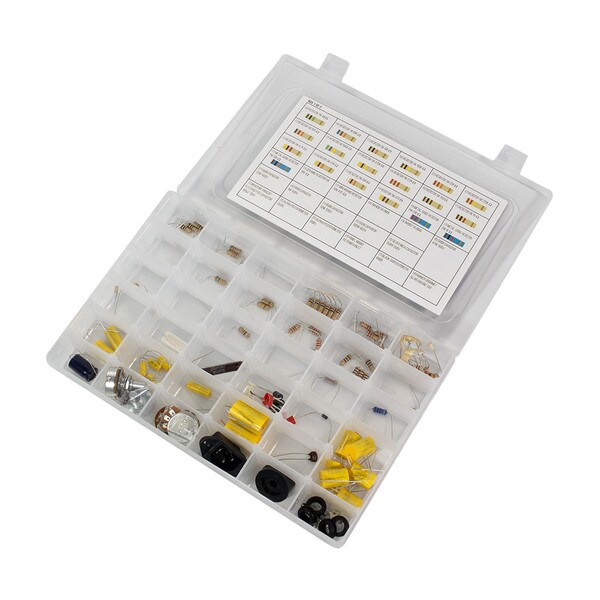

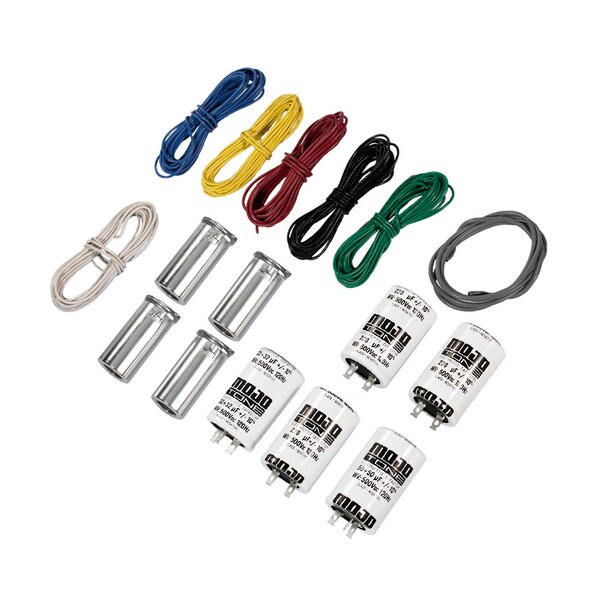

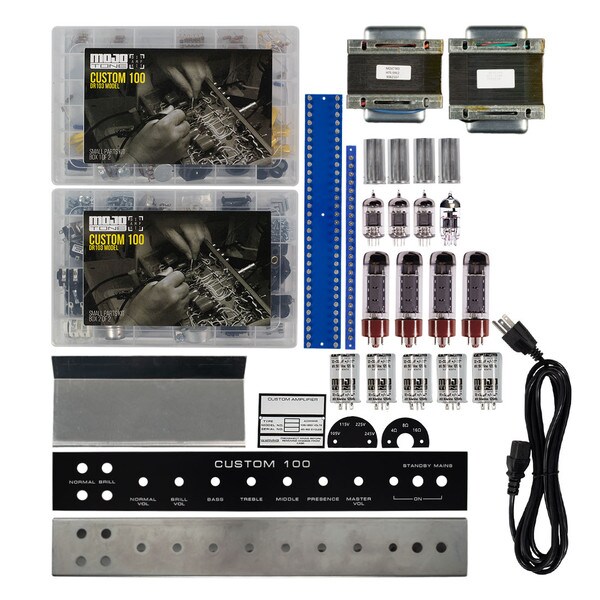

The kit comes with everything necessary to build a working unit, including resistors from Ohmite and Vishay, Mojotone Dijon capacitors, Heyboer transformers, Belton tube sockets, and potentiometers by Alpha.

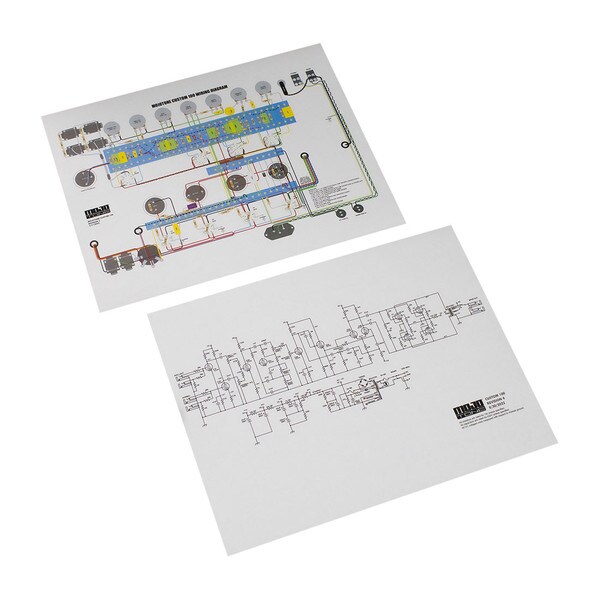

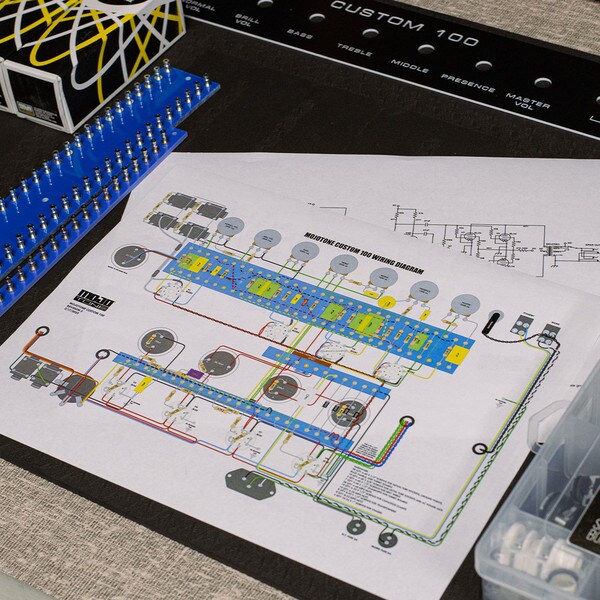

Also included is a full-color wiring diagram which provides a faithful road map of all the right angles and mil-spec techniques which were documented from studying two original examples from the early seventies.
- Class Type:AB All Tube Amplifier
- Output:~100 Watts
- Circuit:1970-1972 DR103 Custom 100
- Bias Type:Fixed Bias
- Build Time:~8 hours

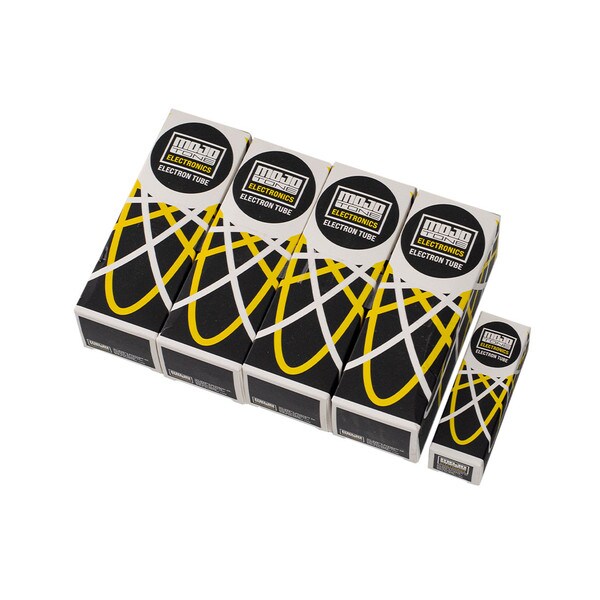

- Preamp Tubes:JJ ECC83/12AX7 (3) & JJ ECC81/12AT7 (1)
- Output Tube(s):JJ E34L (4)
- Rectifier Tube:None - Solid-state Rectified
- Transformers:Power - Hiwatt 100W (MOJO784), Output - Hiwatt 100W (MOJO983)

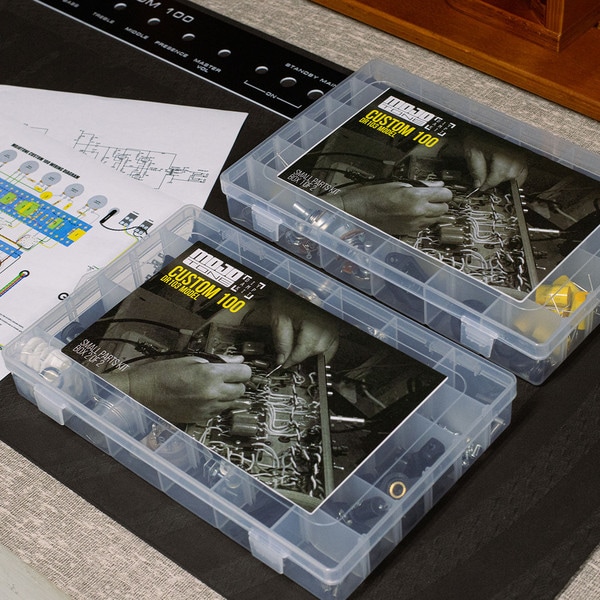

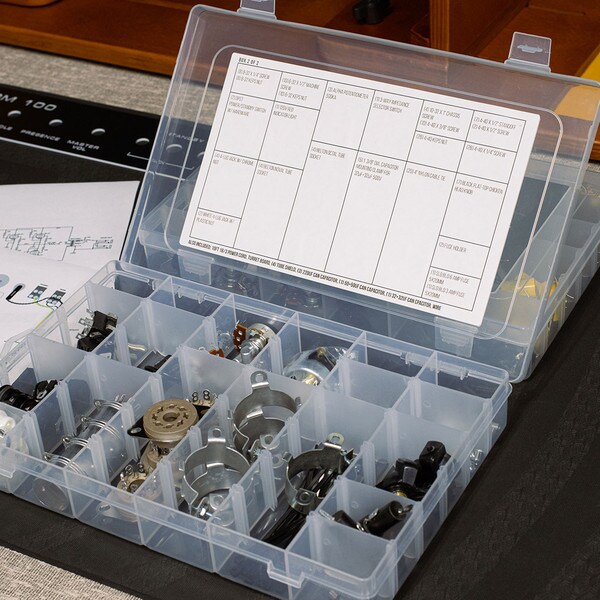

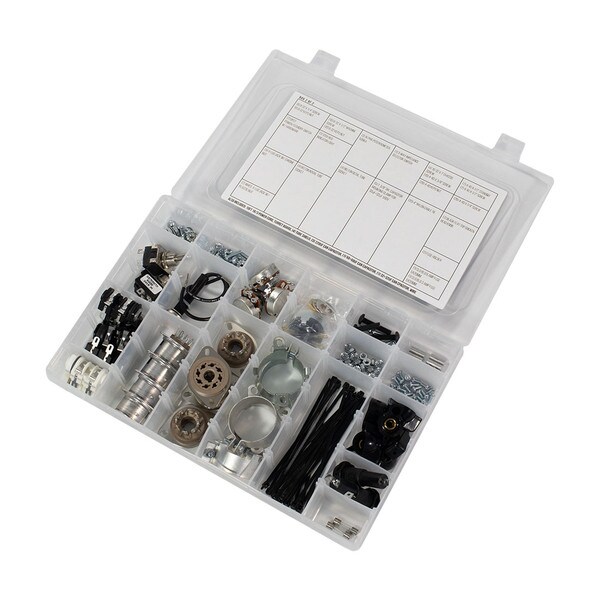

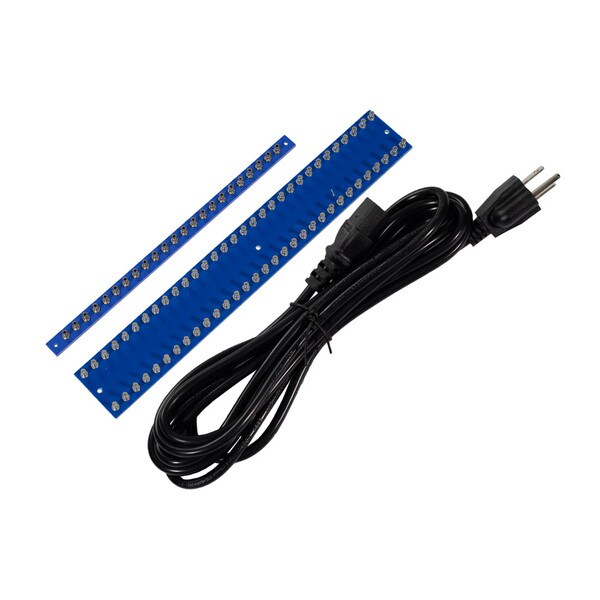

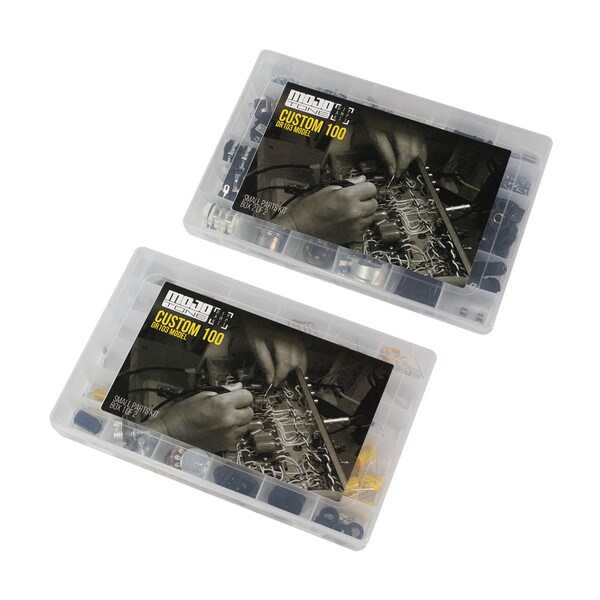

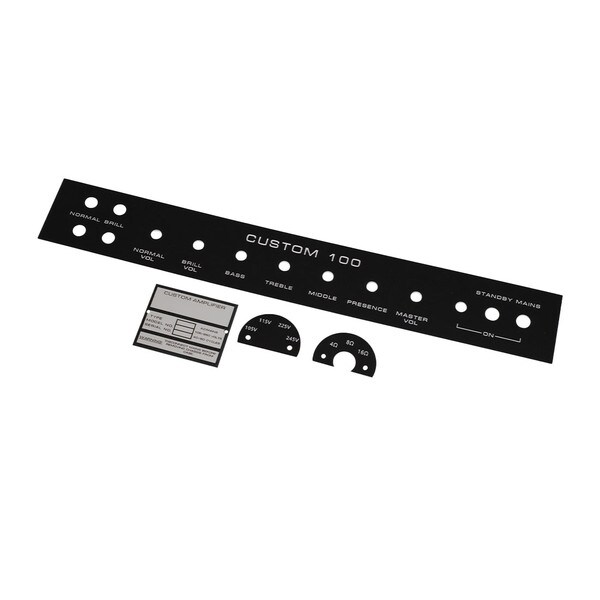

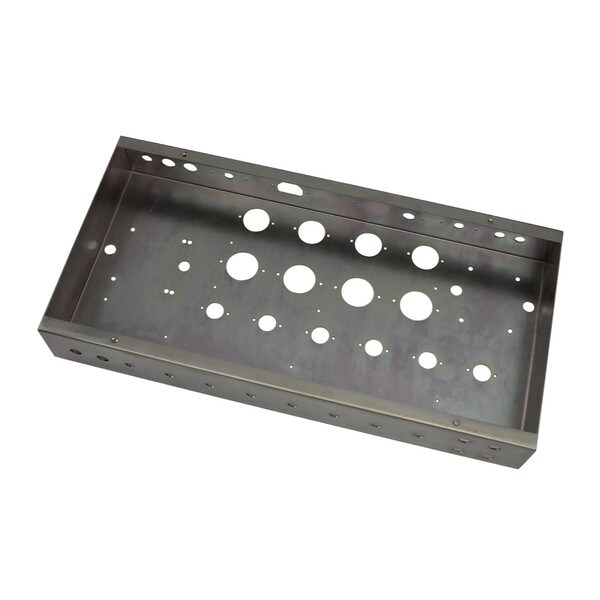

- Hardware:Mojotone Custom 100 Small Parts Kit, Custom 100 Chassis, Front & Rear Faceplates, Octal Base Clamps, 10' Removable Power Cord
Disclaimer: Some of the parts contained in this kit are subject to availability.
Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.
