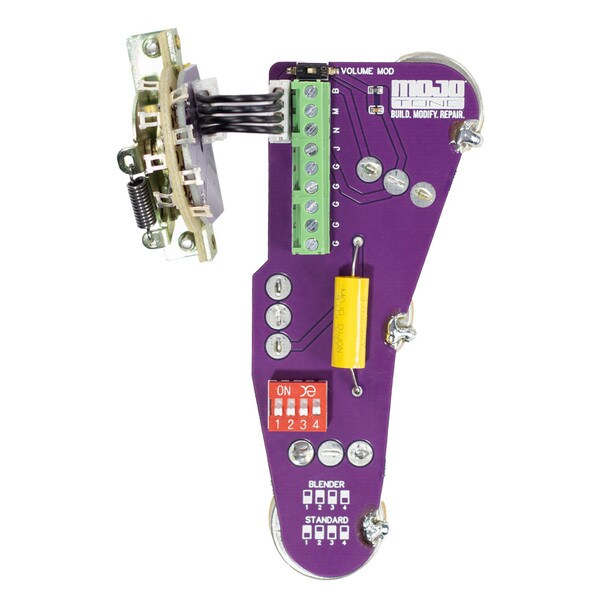

Solderless Convertible Strat Guitar Wiring Harness- 250K Potentiometers Single Coil Pickup Version
Upgrading to premium quality electronics makes a difference, and solderless makes it easier!
Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with our superior quality screw down terminals.
Best of all, you can choose between the most popular Strat wiring schemes (Blender or Standard) that are simple to use and offer the best tonal options a strat can have.
- Screw down solderless wire connection for easy/reliable installation and quick pickup swaps!
- Vintage quality USA branded components (Switchcraft, Mojotone, CRL, and CTS)!
- USA made CRL Switch! It's the most reliable and smoothest feeling switch ever made and hasn't changed since the 50's.
- Smooth custom taper made to Mojotone specifications, our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available.
- Pre-wired Switchcraft mono jack with pre-tinned push-back cloth covered wire.
- Transparent and musical Mojotone Dijon Capacitor designed specifically for guitar and bass tone controls.
- Switchable between our most popular Blender or Standard mod wiring.
- Optional volume mod (on/off switch) for retaining high end detail while rolling the volume back.
- Easily serviceable for any future component swaps or maintenance.
- Screwdriver included.
Blender Control Functions: Unlike standard wiring, Blender wiring adds the option for all 3 pickups to be on at once and the ability to combine the neck and bridge pickups as much as you want.
Master Volume: Top Knob
Master Tone: Middle Knob
Blender Control: Bottom Knob
Blender knob on 10
Position 1: Bridge
Position 2: Bridge and Middle
Position 3: Middle
Position 4: Middle and Neck
Position 5: Neck
Blender knob on 0
Position 1: Bridge (with Neck blended in)
Position 2: Bridge and Middle (with Neck blended in)
Position 3: Middle
Position 4: Middle and Neck (with Bridge blended in)
Position 5: Neck (with Bridge blended in)
Standard Mod Control Functions: Standard strat wiring with no tone control for the middle pickup only. This reduces the load on positions 2 and 4 to only one tone pot, giving you a more clear and open tone when combining the neck/middle or bridge middle pickups. AKA the “EJ Mod”.
Master Volume: Top Knob
Neck Tone: Middle Knob
Bridge Tone: Bottom Knob
Standard Switching
Position 1: Bridge
Position 2: Bridge and Middle
Position 3: Middle
Position 4: Middle and Neck
Position 5: Neck

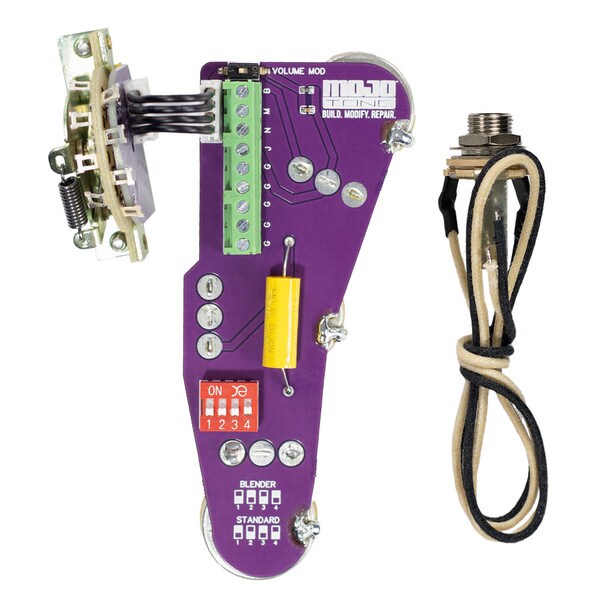

Included:

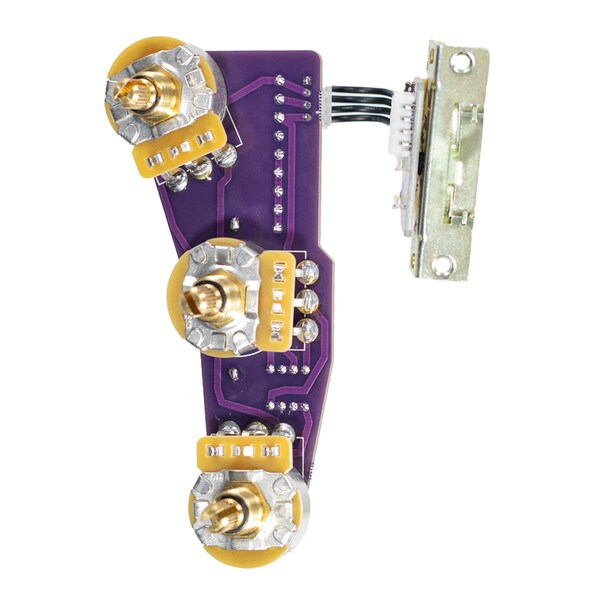

- (2) CTS Vintage taper split shaft potentiometers
- (1) CTS Blender split shaft potentiometer
- (1) CRL USA 5-way lever switch (Switch tip sold separately)
- (1) Prewired Switchcraft USA mono input jack
- (1) Mojotone Dijon Tin Foil capacitor
- (1) Optional Treble Bleed (Preserves highs on volume control)
- (1) Detailed wiring diagram and easy to understand instructions
Note:

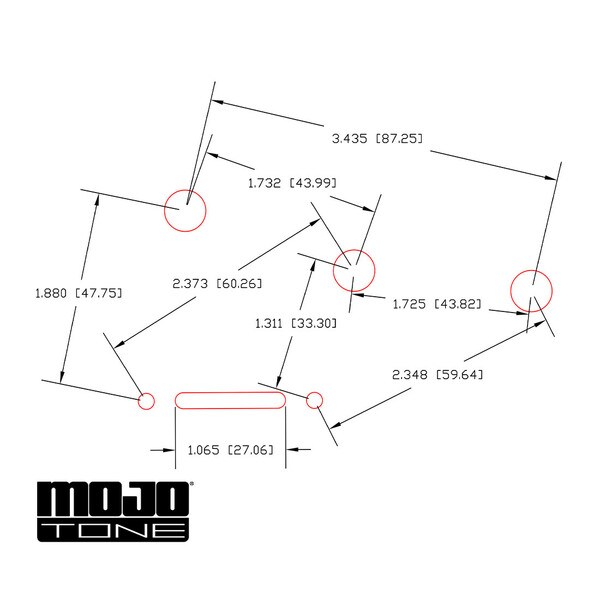

Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit. You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip. See related items. If you have a non-Fender brand strat or overseas made strat, please verify the fit before purchasing.
Choose the 250k version for single coil strat pickups.
Choose the 500k version for Quiet Coil strat pickups or humbuckers.
