#5150200

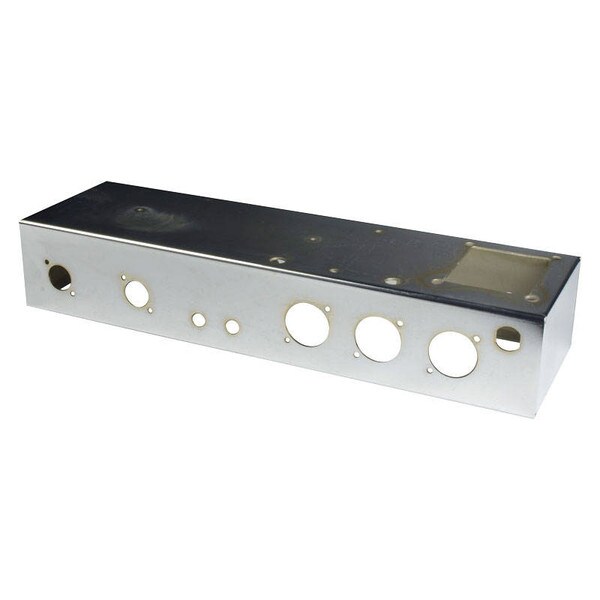

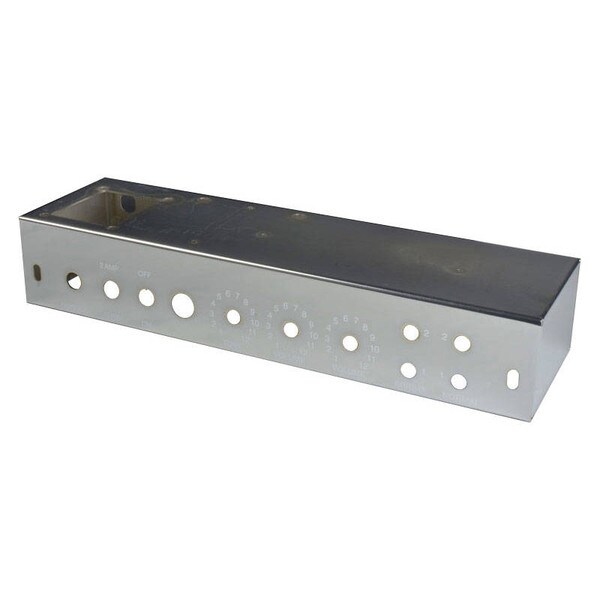

Tweed Deluxe 5E3 Style Chassis

Mojotone reproduction chassis. Same size and style of a Tweed Narrow Panel Deluxe®


Please note: Modifying or drilling this chassis will compromise the chrome finish. Flaking or peeling of the chrome may occur. We cannot accept returns for a modified chrome chassis.
$134.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: 2.45 lb

Material:18 Gauge Cold-Rolled Steel w/ Chrome Plating - 0.048” thick

Dimensions: 2 ⅝“ (H) x 14 ½“ (W) x 4 ⅛“ (D)

Weight: 2.45 lbs.

Octal Socket Holes: 3

9-Pin Socket Holes: 2

Power Transformer: <a href="https://www.mojotone.com/amp-parts/Power-Transformers/Tweed-Deluxe-Power-Transformer_2" class="bodylinks">MOJO756EX</a>

Output Transformer:<a href="https://www.mojotone.com/amp-parts/Output-Transformers/Tweed-Deluxe-Output-Transformer" class="bodylinks"></a><a href="https://www.mojotone.com/Tweed-Deluxe-5E3-Output-Transformer-50246" target="_self">MOJO768</a>or <a href="https://www.mojotone.com/amp-parts/Output-Transformers/Tweed-Deluxe-Output-Transformer-w-4-8-16-OHM-Secondary" class="bodylinks">MOJO768SP</a> (4, 8 and 16 ohm output taps)

Chassis Mounting: 13 ½" center to center
