Tweed Super® 5F4 Style Amplifier Kit
Amp Kit Difficulty Level
If this kit shows as out of stock please check here for more information.
Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.
Mojotone’s Tweed Super Style Amp Kit is based on the ~20-30 watt model rumored to be one of Leo Fender’s favorite creations. The Tweed Super’s design gave it a more nasal sound than some of its larger relatives, which makes it popular among guitarists who play gritty blues and rockabilly. This 5F4 circuit has a unique break up that has been featured in recordings by the likes of Joe Bonamassa and The Eagles.
The amp utilizes two 6L6gc power tubes for to push 28 watts before clipping, all the while delivering fat luscious low tones with pristine highs. We paired the Super circuit with two Mojotone Anthem AN10C 10" 35 Watt speakers that are lively with a fat, snappy response and offer a cool gritty overdriven sound that will not sacrifice articulation for distortion. For those players seeking a responsive amp that is perfect for roots rock styles and is easy to haul around, the Mojotone Tweed Super Style kit is a no brainer.
Global controls include presence, bass, and treble for a multitude of sonic variations. There are two channels, bright and normal, and each has two inputs. The normal channel is more tame with a slightly warmer overall sound, while the bright channel has more aggressive highs and breaks up slightly faster. These inputs can not only be used in a traditional fashion but can also be ‘jumpered’ together and blended, via their dedicated volume controls, for even more sound options.

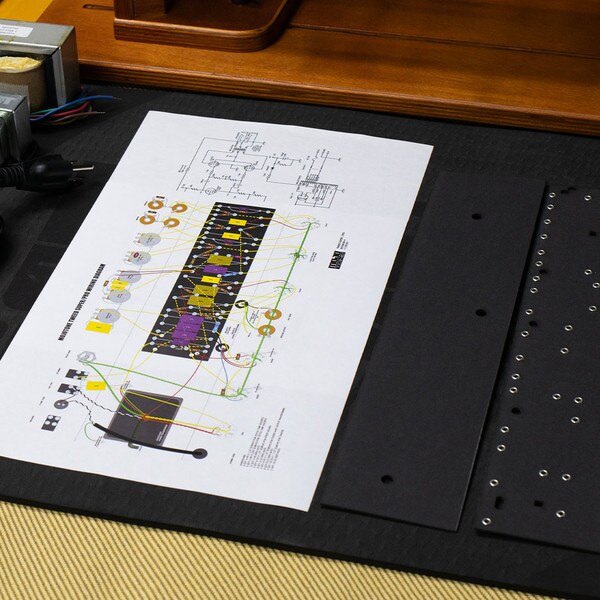

Please note that there is no step-by-step assembly manual available for this amp kit. This amp kit comes only with a technical schematic and a wiring diagram. This is an advanced kit best suited for builders with previous amp building experience and understanding of electrical circuits.
- Class Type: AB All Tube Amplifier
- Output:~20-30 Watts
- Bias Type: Fixed Biased
- Build Time:~6 hours

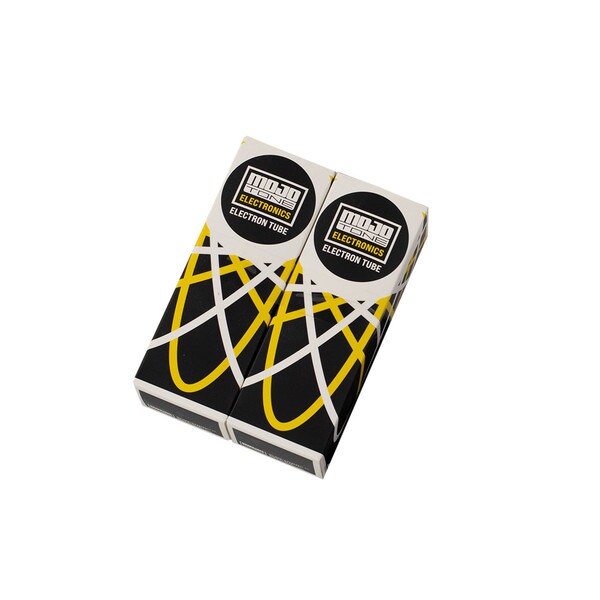

- Preamp Tubes: ECC83/12AX7 (2), 12AY7 (1)
- Output Tube(s): 6L6GC (2)
- Rectifier Tube: 5U4

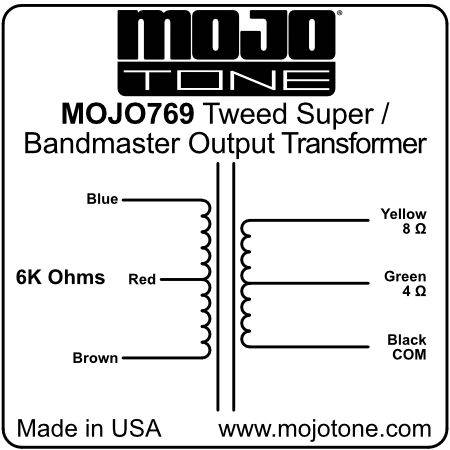

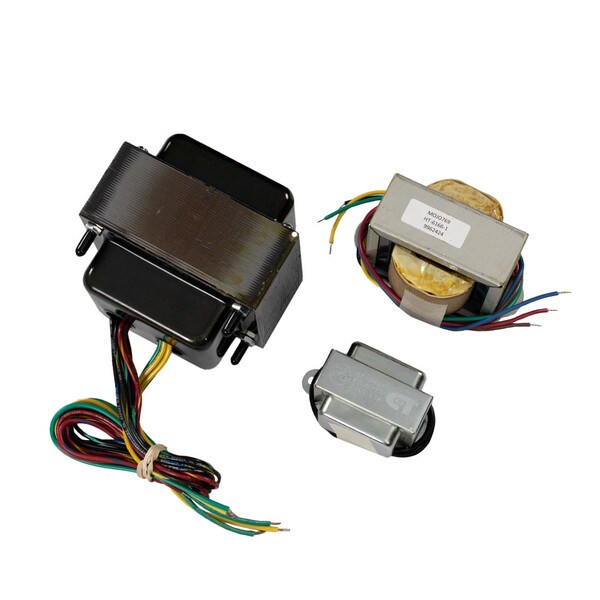

- Transformers: Power - Bassman Power (MOJO752EX), Output - Super/Bandmaster/Pro (MOJO769), Choke (MOJO777)

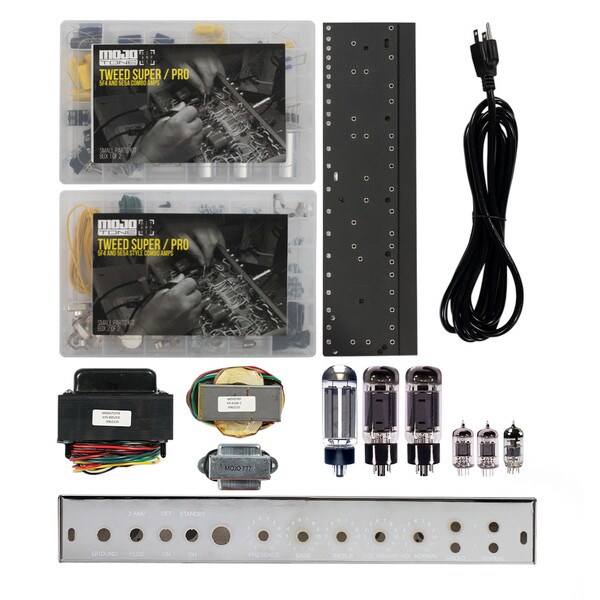

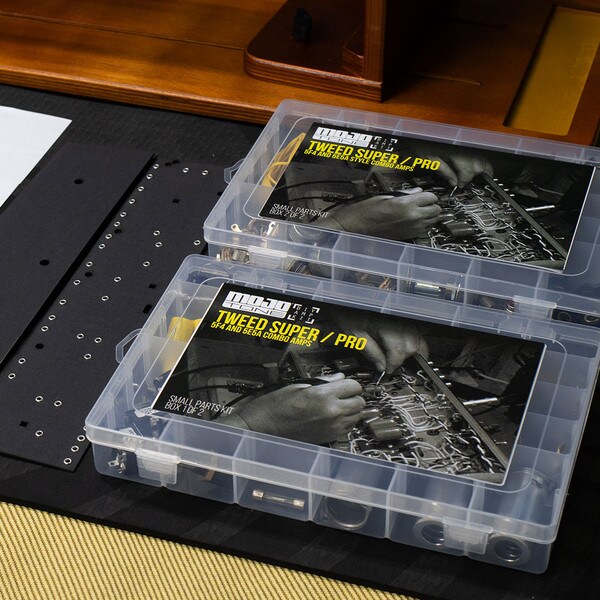

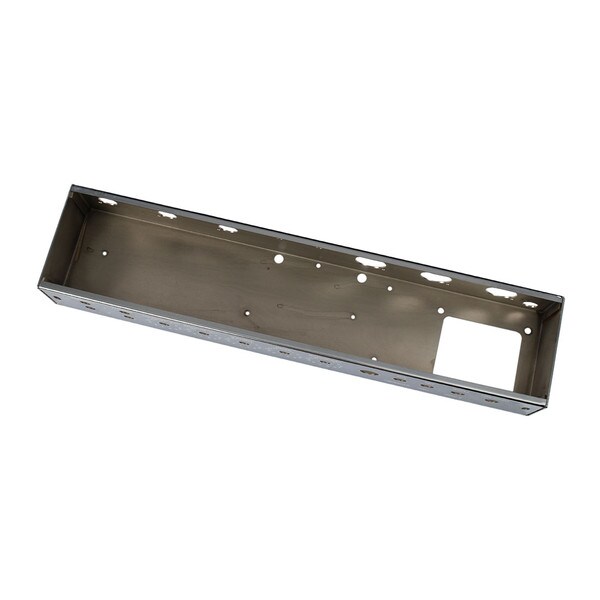

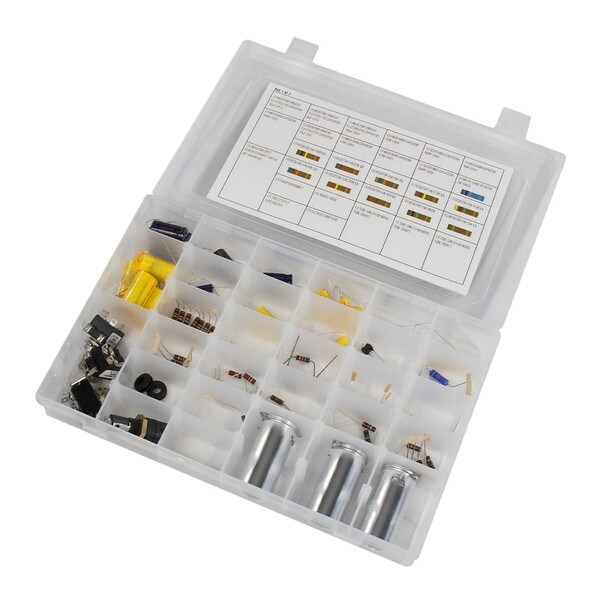

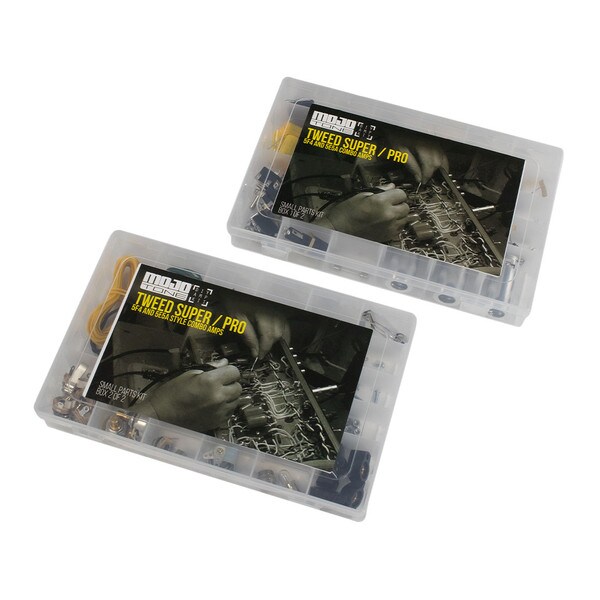

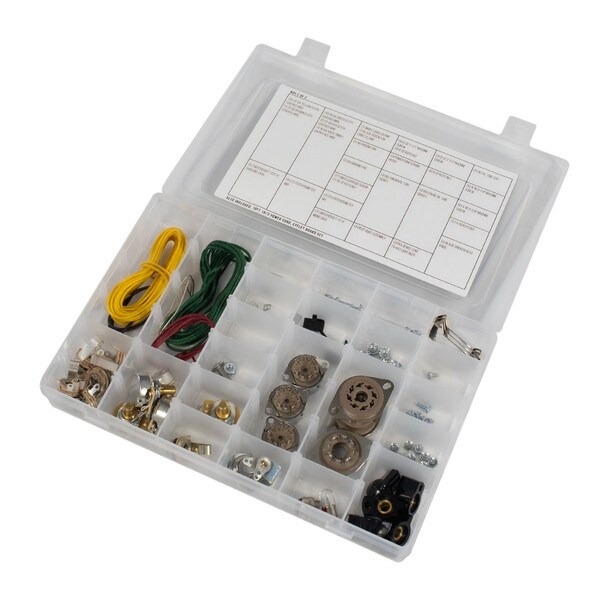

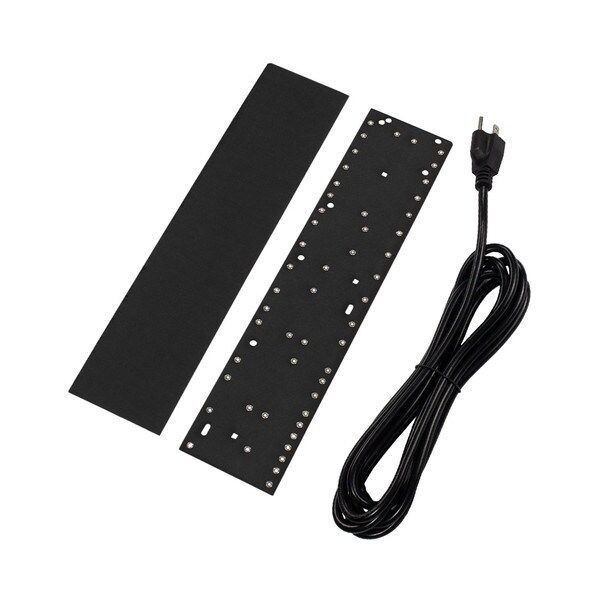

- Hardware: Tweed Super Small Parts Kit, Tweed Super Chassis, 10' Install Power Cord
Disclaimer: Some of the parts contained in this kit are subject to availability.
Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.
When purchasing a kit from Mojotone, you will receive the following documentation.

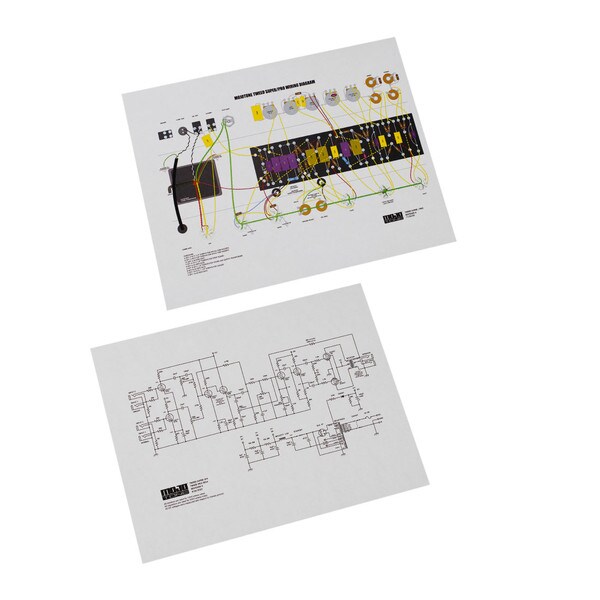

2. Wiring Diagram / Layout
Our beginner level kits such as the tweed champ and tweed deluxe include a manual. If you purchase a kit from Mojotone and do not receive these documents, you can obtain copies by emailing firstname.lastname@example.org or calling 800-927-6656. The Mojotone staff is available Monday through Friday from 8:30 a.m. to 5:00 p.m. EST unless otherwise closed.
Mojotone kits include the best quality parts that are available at the time of purchase. If a substitution is required, our team will use parts that are of equal quality to ensure the integrity of the kit build remains the same.
Building a fully functional amplifier kit is not an easy task. Before building a kit, one should have the ability to properly solder as well as read and understand a schematic and wiring diagram. While we do our very best to ensure all documentation is current, the included documentation is meant to serve as an overall guide to building the amplifier. Simply following the schematic and wiring diagram does not guarantee you will have a fully functional amplifier. In fact, post build troubleshooting is a common issue across all builds.
Our staff is available to assist with basic troubleshooting needs. There are plenty of online videos available that are helpful with most post build issues. Technical staff is available via email by sending a message to email@example.com. You may also call our sales team to discuss build problems, dial 800-927-6656 and press 1 for sales.
Building a tube amplifier takes time, dedication, resources and most importantly... Skills! The experience of building an amp can come with some frustration, the reward of completing the build is definitely well worth your time. Please review the wiring diagram, schematic and manual (if applicable) prior to making your purchase. Mojotone will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.
