Tweed Twin® 5F8-A High Power Style Amplifier Kit
This kit has a lead time. Check here for more information.
Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.
Mojotone’s Tweed Twin High Power Style Amp Kit is a faithful recreation of what many consider the holy grail of guitar amps. Ringing in at 80 Watts of glorious tube power, our TTHP delivers the famous tones produced by timeless artists such as Stevie Ray Vaughan and Keith Richards. This amp is ready for the main stage and fits into any mix perfectly without being too harsh or too muddy. Pair this Twin with a Stratocaster to mimic that rocking Buddy Holly or Tommy Allsup sound without feeding back.
Leo Fender took the tone stack from the beloved 5F6-A Bassman and dropped it into this high-powered tone monster. Using the same selection high-quality small components as all of Mojotone’s amps, this particular circuit calls for a quad of 6L6GC power tubes that keep the amp cleaner at higher volumes and reproduces every part of the sonic spectrum appropriately. Two Jensen C12N 50 Watt speakers give the amp a smooth and straight-forward tone with high frequency chime.
Unlike its lower powered counterpart, the TTHP has a middle control for further contouring; this makes the amp's global controls presence, middle, bass, and treble. There are two channels, bright and normal, and each has two inputs. The normal channel is more tame with a slightly warmer overall sound, while the bright channel has a more aggressive sound and breaks up slightly faster. These inputs can not only be used in a traditional fashion but can also be ‘jumpered’ together and blended, via their dedicated volume controls, for even more sound options.
- Class Type:AB All Tube Amplifier
- Output:~80 Watts
- Bias Type:Fixed Biased
- Build Time:~7 hours
- Preamp Tubes:JJ ECC83/12AX7 (2), JJ 12AY7 (1)
- Output Tube(s):JJ 6L6GC (4)
- Rectifier Tube:JJ 5AR4 / GZ34

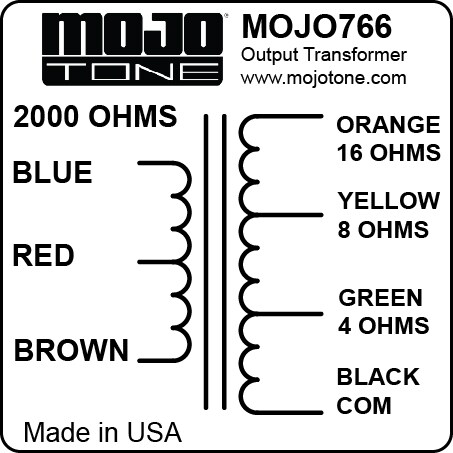

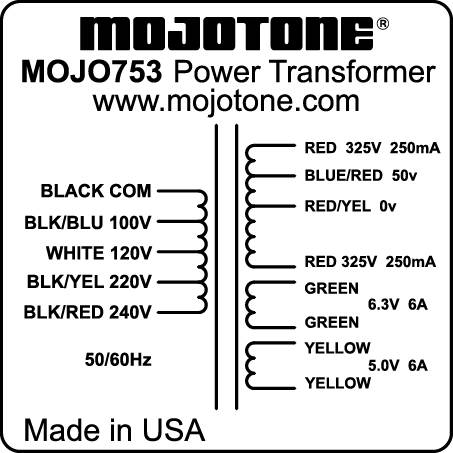

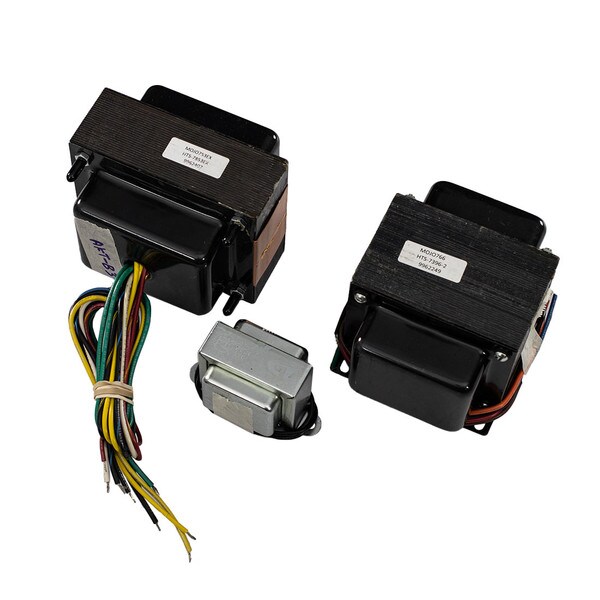

- Transformers:Power - HP Twin Power (MOJO753EX), Output - HP Twin (MOJO766), Choke (MOJO777)

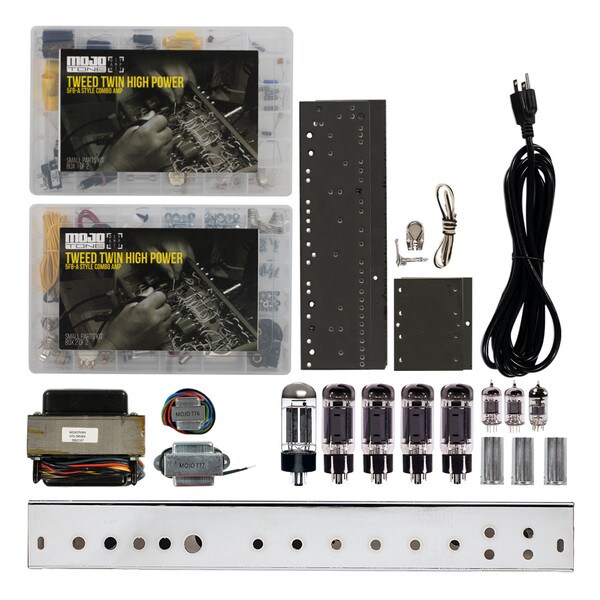

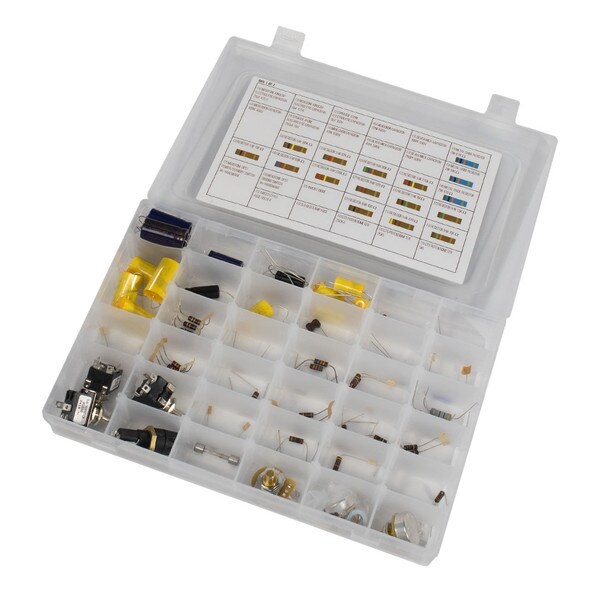

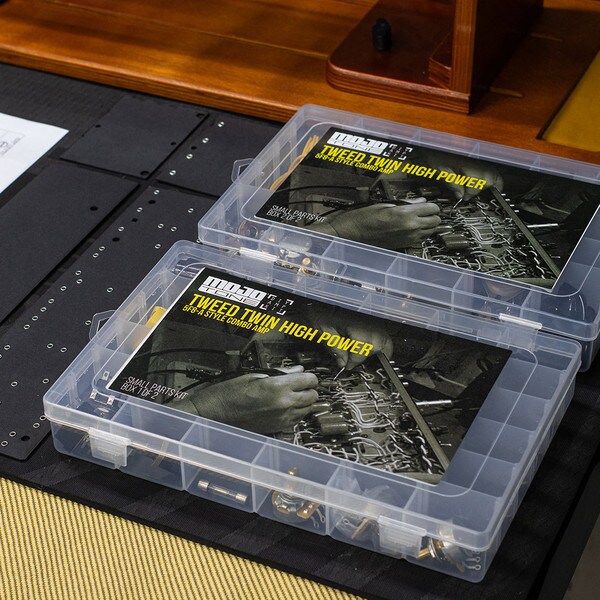

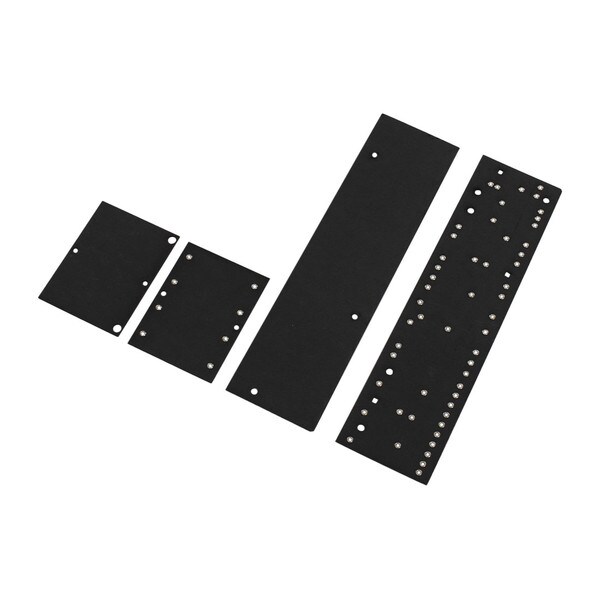

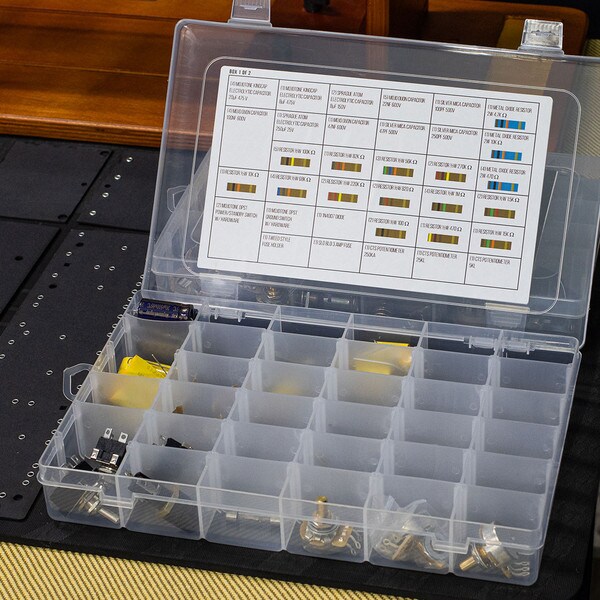

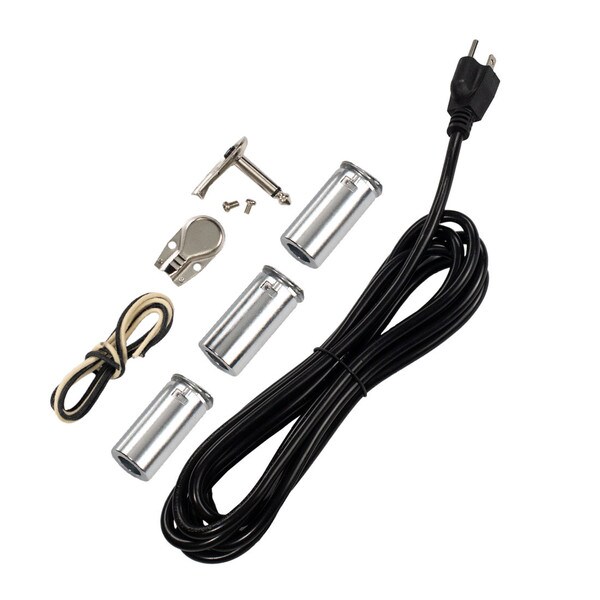

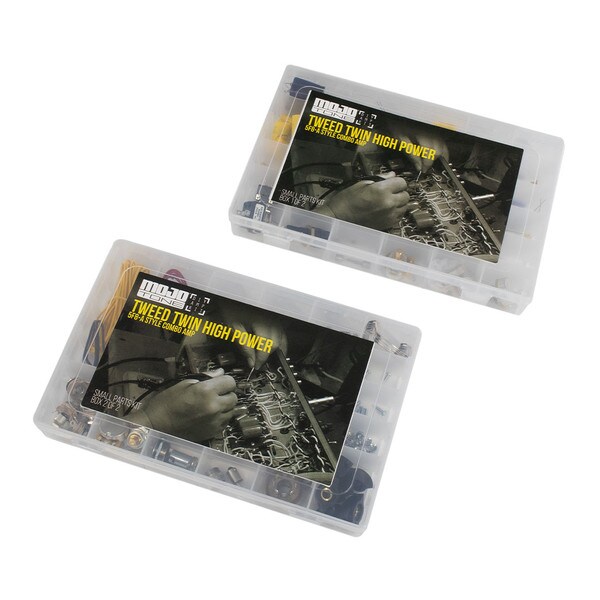

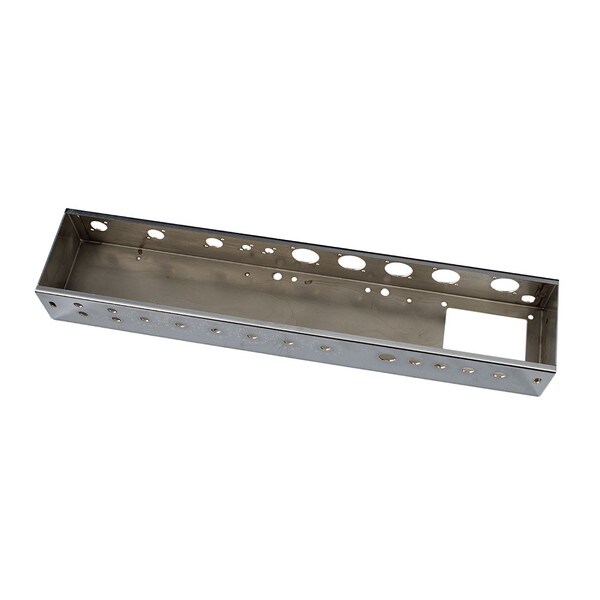

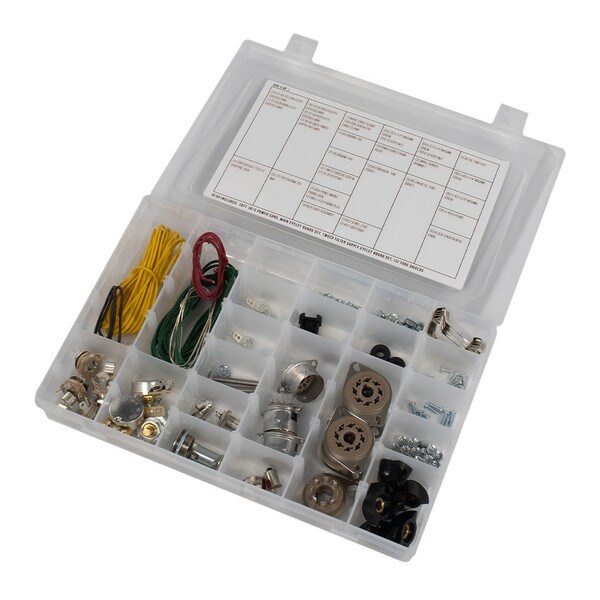

- Hardware:Tweed HP Twin Small Parts Kit, Tweed HP Twin Chassis, 10' Install Power Cord
Disclaimer: Some of the parts contained in this kit are subject to availability.
Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.

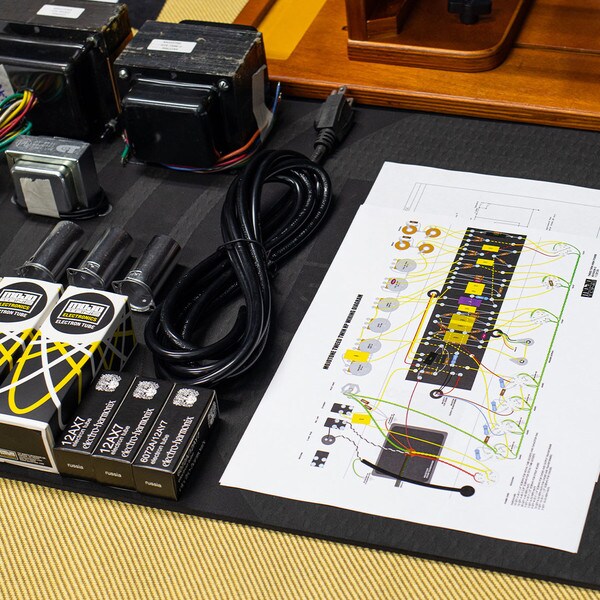

When purchasing a kit from Mojotone, you will receive the following documentation.
2. Wiring Diagram / Layout
Our beginner level kits such as the tweed champ and tweed deluxe include a manual. If you purchase a kit from Mojotone and do not receive these documents, you can obtain copies by emailing email@example.com or calling 800-927-6656. The Mojotone staff is available Monday through Friday from 8:30 a.m. to 5:00 p.m. EST unless otherwise closed.
Mojotone kits include the best quality parts that are available at the time of purchase. If a substitution is required, our team will use parts that are of equal quality to ensure the integrity of the kit build remains the same.
Building a fully functional amplifier kit is not an easy task. Before building a kit, one should have the ability to properly solder as well as read and understand a schematic and wiring diagram. While we do our very best to ensure all documentation is current, the included documentation is meant to serve as an overall guide to building the amplifier. Simply following the schematic and wiring diagram does not guarantee you will have a fully functional amplifier. In fact, post build troubleshooting is a common issue across all builds.
Our staff is available to assist with basic troubleshooting needs. There are plenty of online videos available that are helpful with most post build issues. Technical staff is available via email by sending a message to firstname.lastname@example.org. You may also call our sales team to discuss build problems, dial 800-927-6656 and press 1 for sales.
Building a tube amplifier takes time, dedication, resources and most importantly... Skills! The experience of building an amp can come with some frustration, the reward of completing the build is definitely well worth your time. Please review the wiring diagram, schematic and manual (if applicable) prior to making your purchase. Mojotone will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.
This amp kit also comes with the following documents. Please feel free to view and/or download them:
Mojotone Tweed Twin High Power Schematic

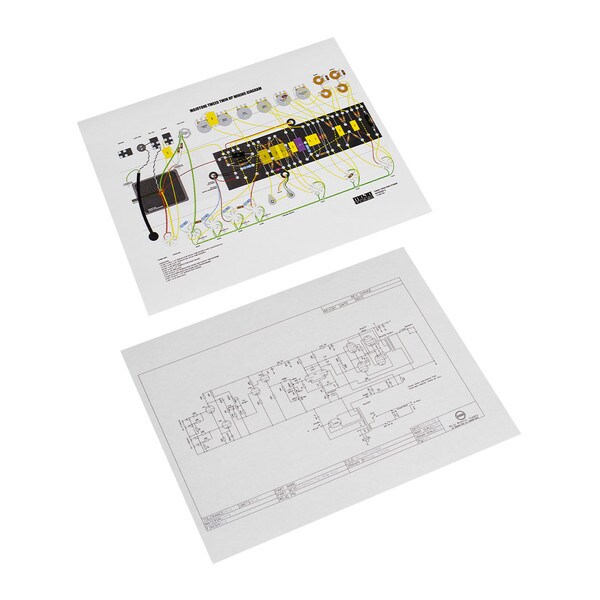

Mojotone Tweed Twin High Power Wiring Diagram
