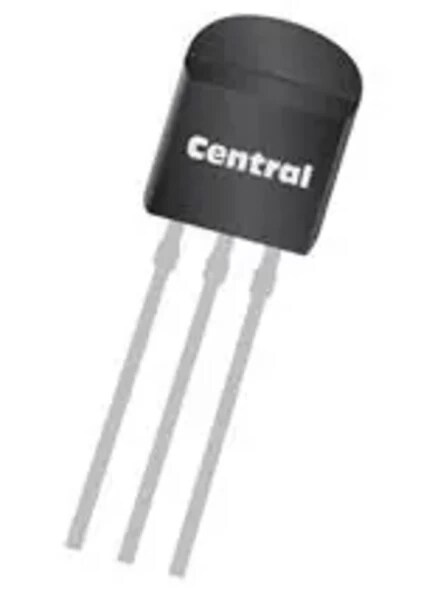

2N5087 TO-92 Bipolar General Purpose 50ma 50V PNP

(0)No Reviews yet
$0.51
QuantityPrice
1 – 9$0.51
10 – 19$0.48
20 – 99$0.46
100 +$0.45
SKU: 9100052
Weight: 0.003 lb
Sale Unit: Piece

In Stock

1020 IN STOCK

19 // 10-3-18 dCEP

PNP General Purpose Amplifier. This device is designed for low level, high gain, low noise general purpose amplifier applications at collector currents to 50mA.
  • Dimensions (mm): 5.20 x 5.33 x 4.19 (max)
  • Lead spacing (mm): 1.39 individual (max)
  • Lead Length (mm): 12.70 (min)
  • Polarity: PNP
MAXIMUM RATINGS
  • C−B Voltage VCBO: 50Vdc
  • E−B Voltage VEBO: 3.0Vdc
  • C−E Voltage VCEO: 50Vdc
  • Collector Current IC: 50mAdc
  • Total Device Dissipation @ TA = 25°C PD: 625mW
  • Total Device Dissipation @ TC = 25°C PD: 1.5W
  • Operating and Storage Junction Temperature Range
  • TJ, Tstg: −55 to +150 °C
