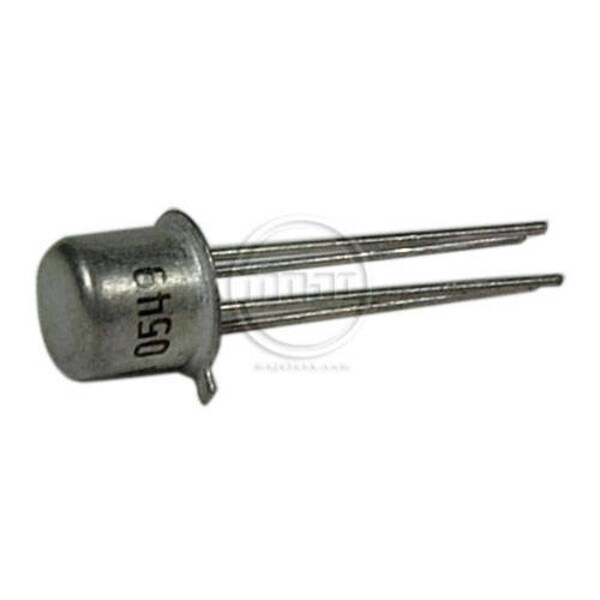

2N4416A TO-72 N Channel JFET
Silicon N-Channel Junction Field Effect Transistors designed for VHF amplifier and mixer applications.
- Dimensions (mm): 5.84 dia x 5.33 (max)
- Lead spacing (mm): 1.27 individual
- Lead Length (mm): 12.70 (min)
- MAXIMUM RATINGS: (TA=25°C)
- Gate-Drain Voltage VGD: 30V
- Gate-Source Voltage VGS: 30V
- Drain-Source Voltage VDS: 30V
- Gate Current IG: 10 mA
- Power Dissipation PD: 300 mW
- Operating and Storage Junction Temperature TJ, Tstg: -65 to +200 °C
Ratings & Reviews
1 review
2/17/2021 1:32 pm
9100044
by anonymous
This is one of 5 or so transistors that cross reference to the NTE/ECG452 JFET. There is a cheaper T0-92 variant that is about the same, but without the metal can casing. Unfortunately shielding can be an issue, with TO-92 epoxy cases. There are some ways to shield T0-92 cases, but the heatsinks/thermal coupling clips are getting hard to find. NTE bought ECG some time back, so this is a pretty darn close JFET to the NTE452. Unless I am buying 12 or more of these, Mojo is the place to buy them. I like the old 2F439s better, but good luck finding one! I can get these for under $6 each, but shipping costs negate any savings.
