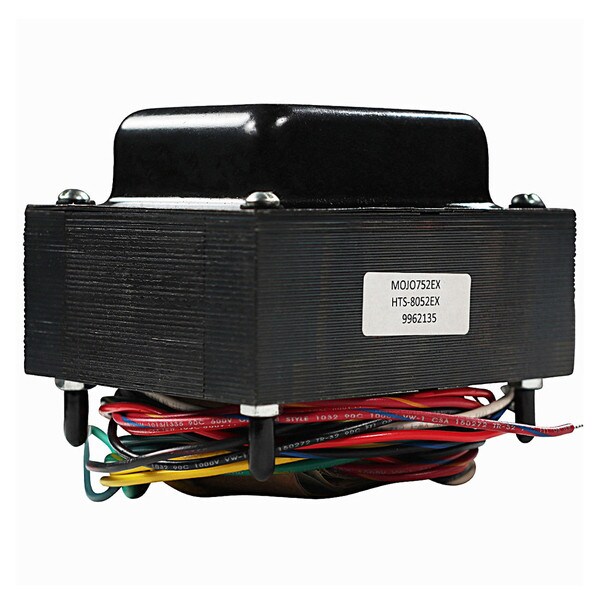

Bassman / Pro / Super Power Transformer 125P5D

2Reviews
$173.24
SKU: MOJO752EX
Weight: 7.78 lb
Sale Unit: Piece

Temporarily Out of Stock

Replacement for Fender part numbers 125P5D, 125P5DX, 022798, 8087, and 022806.

This transformer was found in tweed 5E5-A, 5E7, 5E8-A, 5F4, and 5F6-A, Super, Pro, Bandmaster Reverb, and Black era Vibroverb.

This unit features primary taps for 100/120/200/210/220/230/240VAC

All Mojotone transformers are made in the USA. Quality, Reliability, and Excellence are what make our transformers the best around.

To repair techs: If you require a replacement transformer for your customer's vintage amp that won't degrade its value, then take comfort in knowing Mojotone transformers are manufactured on the same equipment and from the same materials as the original part.  Our transformers look, smell, and perform like the original without a high price tag.

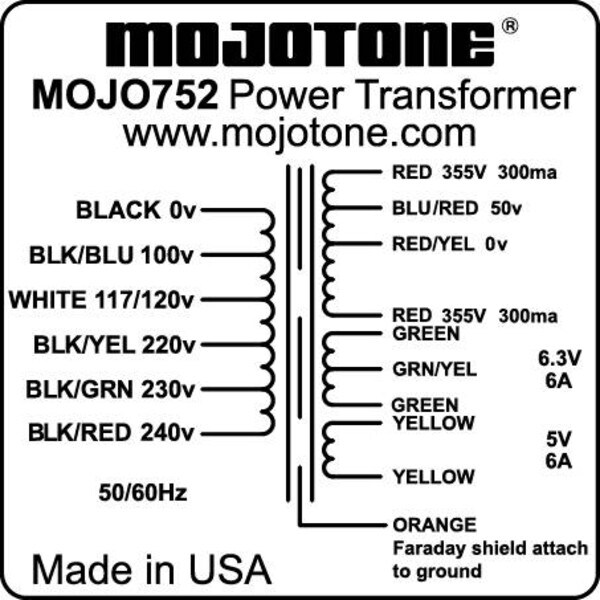

Please use caution when referencing our current wiring diagrams. Mojotone transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojotone is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojotone transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.

Pro Tip on the Primary Leads

Primary: 100/120/200/210/220/230/240VAC

Z mount: 3 7/16 x 2 3/4" centers.

Ratings & Reviews

2 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
6/23/2023 2:34 pm

Black panel Band master rectifier conversion

by Rob D -

Got a clean 65 Band Master head and cab,way too tight with the solid state rectifier,Put this one in and added a GZ34 rectifier tube and now it has the sag of a super.It’s like A Blackpanel Pro,thanks Mojotone and Robbinettes wiring diagrams

6/23/2023 1:32 pm

Bandmaster tube conversion

by Rob D -

I wanted sag in my Bandmaster,Too stiff,so put this Transformer in and added rectifier tube.It’s a blackface pro now.Researched it from the net worked perfectly,Same plate voltage as the old transformer the AB 763 is the same on both.Great trick,if you want to make a BM more like a super
