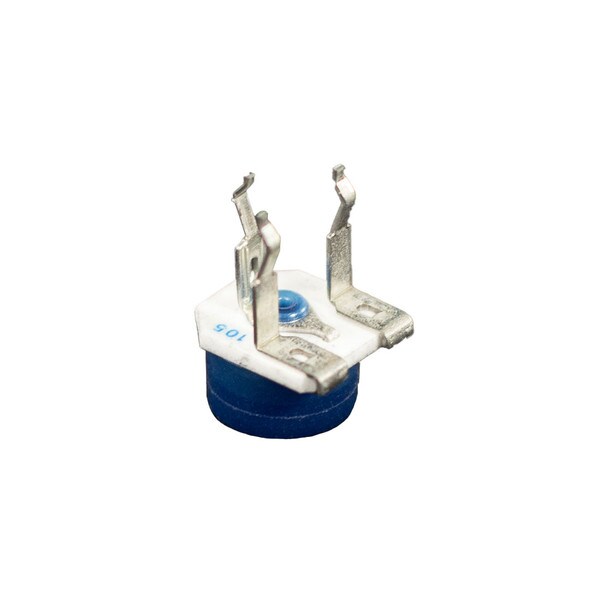

Bourns 1M Trimmer Potentiometer

Termination Style:    Through Hole
Product:    Single Turn
Number of Turns:    1
Resistance:    1 MOhms
Adjustment:    Top Adjust
Power Rating:    200 mW (1/5 W)
Voltage Rating:    100 V
Tolerance:    25 %
Temperature Coefficient:    250 PPM / C
Orientation:    Horizontal Adjustment
Minimum Operating Temperature:    - 25 C
Maximum Operating Temperature:    + 100 C
Brand:    Bourns
Element Type:    Cermet
Height:    7.62 mm
Length:    8.1 mm
Mounting Style:    PCB Mount

For further information on this product, please feel free to view the datasheet here.
