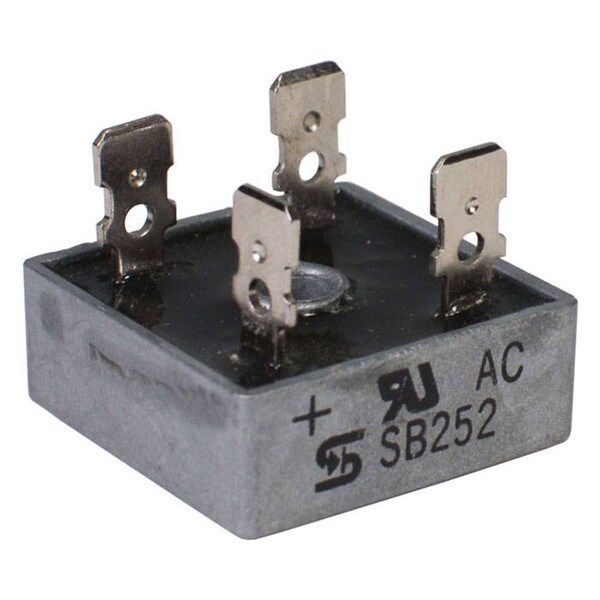

Bridge Rectifier for Solid State Amplifiers
Specs
Max. Avg. Rectified Current: 25A
Peak Inverse Voltage: 200V
Peak Forward Surge Current: 300A
Max. Forward Voltage: 1.1V @ 12.5A
Max. Reverse Current: 10A
Mounts to chassis using a #8 screw. Hole diameter is 0.19".
This is a robust replacement part for many early solid state amplifier designs using a full wave rectifier. Not for use with three-wire, center-tapped secondary transformers.
Peak Inverse Voltage: 200V
Peak Forward Surge Current: 300A
Max. Forward Voltage: 1.1V @ 12.5A
Max. Reverse Current: 10A
Mounts to chassis using a #8 screw. Hole diameter is 0.19".
This is a robust replacement part for many early solid state amplifier designs using a full wave rectifier. Not for use with three-wire, center-tapped secondary transformers.
