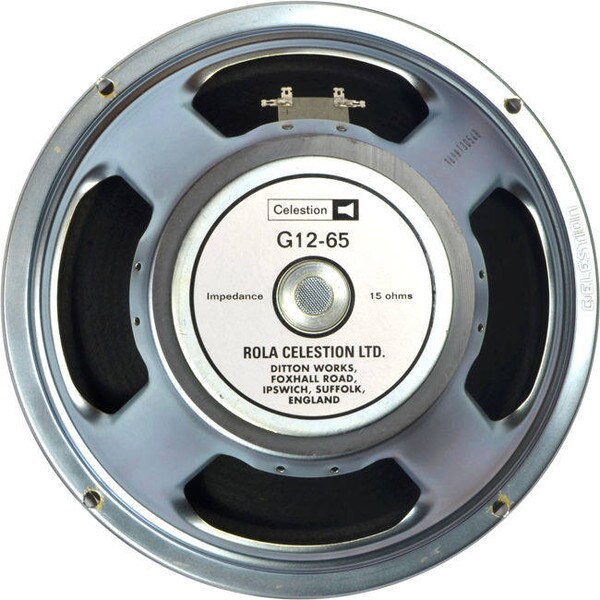

Celestion G12-65 Heritage 12'' Speaker 15 Ohm 65W
Originally created in the late 70s using more modern materials and techniques for a higher power handling, the G12-65 is widely regarded as one of the best speakers ever produced for use in a 4x12 cabinet.
With its fast attack and tightly controlled low-end, the G12-65 had become a firm favorite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.
With its fast attack and tightly controlled low-end, the G12-65 had become a firm favorite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.
General Specification
- Nominal diameter: 12", 305mm
- Power Rating: 65W
- Nominal impedance: 8Ω and 15Ω
- Sensitivity: 97dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 35oz, 0.99kg
- Frequency range: 80-5000Hz
- Resonance frequency, Fs: 85Hz
- DC resistance, Re: 6.9Ω & 11.8Ω
- Diameter: 12.2", 309mm
- Overall depth: 5.0", 128mm
- Magnet structure diameter: 5.7", 145mm
- Cut-out diameter: 11.1", 283mm
- Mounting slot dimensions: 0.31", 7.9mm Ø
- Number of mounting slots: 4
- Mounting slot PCD: 11.7", 297mm
- Unit weight: 12.1lb, 5.5kg
