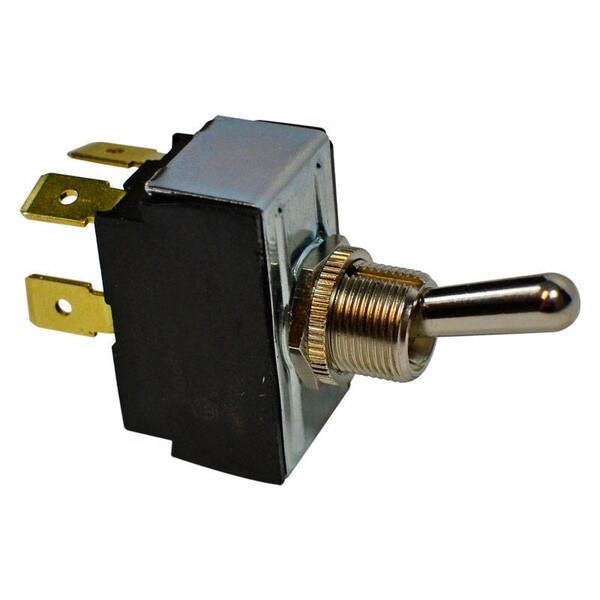

Carling DPST 3 Position Toggle Switch (On - Standby - Off)

1Review
$7.56
QuantityPrice
1 – 9$7.56
10 – 19$7.18
20 – 99$6.80
100 +$6.65
SKU: K4CAR782
Weight: 0.08 lb
Sale Unit: Piece

In Stock

339 IN STOCK

38 / 7-6-18 JMB

Back
Carling, 2GG51-73 DPST 3 position toggle switch (on-stby-off) can be used as a single style power switch where both standby and power can be activated in separate positions. In the "down" position both single pole switches are Off. In the "middle" position one of the single pole switches is switched to On. In the "up" position both switches are On.
Back
  • Type: Toggle Switch
  • Version: DPST, OFF - ON (A) / Off (B) - ON (A) / ON (B)
  • Rating: 10A @ 250V / 15A @ 125V
  • Insulation resistance: 100MΩ min.
  • Dielectric strength: 1000V min.
  • Operating Life: 25.000 cycles
  • Drill: 12 mm
  • Termination Style: solder-lugs
Back

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
Write a Review
2/17/2021 1:42 pm

Excellent

by anonymous

This switch is excellent if you only want one switch but need both functions. I use it in my hybrid amp builds exclusively whenever I need this functionality.
