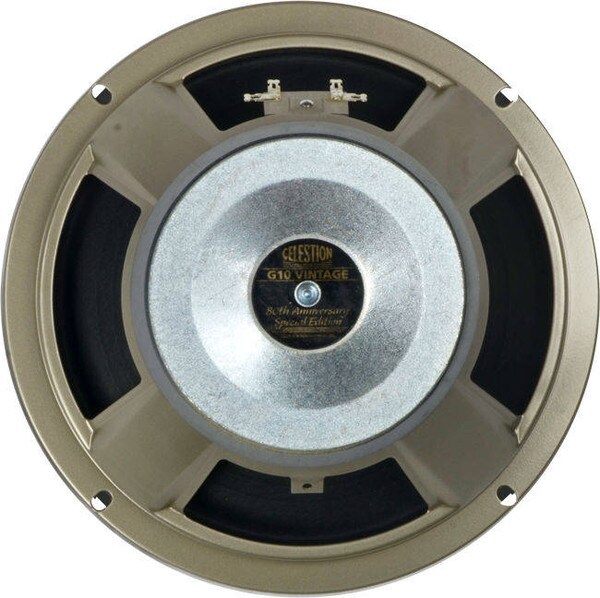

Celestion G10 Vintage 10'' Speaker 16 Ohm 60W
A worthy successor to the Vintage 10, the G10 Vintage is a 10" speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30, the G10 packs an impressive punch with its 60W power handling.
With the fast response of a 10" but with the strong and creamy vocal tones of a 12", the G10 is the ideal choice to add depth to hollow-sounding amps, or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos, or in quartets for a weightier but still lively attack.
With the fast response of a 10" but with the strong and creamy vocal tones of a 12", the G10 is the ideal choice to add depth to hollow-sounding amps, or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos, or in quartets for a weightier but still lively attack.
General Specifications
- Nominal diameter: 10", 254mm
- Power Rating: 60W
- Nominal impedance: 8Ω and 16Ω
- Sensitivity: 97dB
- Chassis type: Pressed Steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 31oz, 0.88kg
- Frequency range: 100-5500Hz
- Resonance frequency, Fs: 115Hz
- DC resistance, Re: 7.47Ω & 12.33Ω
- Diameter: 10.1", 256mm
- Overall depth: 4.1", 104mm
- Magnet structure diameter: 5.3", 134mm
- Cut-out diameter: 9.0", 229mm
- Mounting slot dimensions: 0.2 x 0.3", 6 x 8mm
- Number of mounting slots: 4
- Mounting slot PCD: 9.6", 245mm
- Unit weight: 5.3lb, 2.4kg
