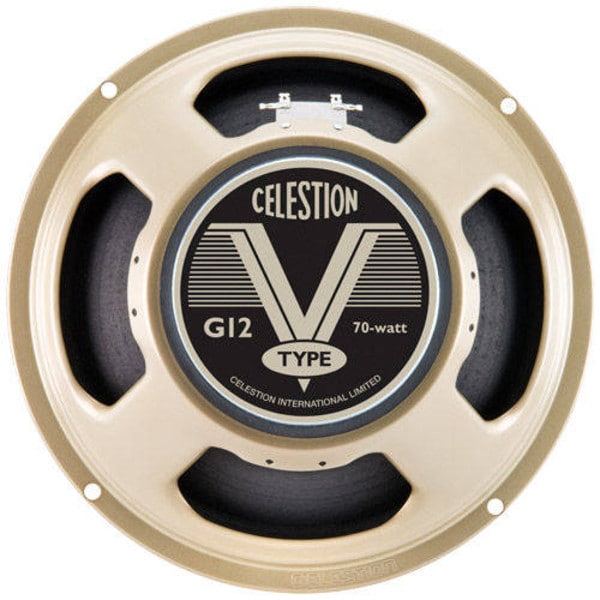

Celestion V-Type Speaker 70W 12" 8 Ohm

1Review
$109.00
SKU: 1000098
Weight: 8 lb
Sale Unit: Piece

Special Order Item. Please Contact Our Sales Department To Order.

Special Order

Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques. It produces a heady, exciting modern vintage sound that just makes you want to keep on playing: a speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows, mids and highs, with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones, with plenty of mid-band warmth to give body and substance to lead note playing
General Specifications
  • Nominal diameter: 12", 305mm
  • Power rating: 70Wrms
  • Nominal impedance: 8Ω or 16Ω
  • Sensitivity: 98dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44.5mm
  • Voice coil material: Round copper
  • Magnet type: Ceramic
  • Magnet weight: 31oz, 0.88Kg
  • Frequency range: 70-5000 Hz
  • Resonance frequency, Fs: 75Hz
  • DC resistance, Re: 7.3Ω or 12.9Ω

Mounting Information
  • Cut-out diameter: 11.1", 283mm
  • Diameter: 12.2", 309mm
  • Magnet structure diameter: 5.3”, 134mm
  • Mounting slot dimensions: 0.31", 7.9mm Ø
  • Mounting slot PCD: 11.7", 297mm
  • Number of mounting slots: 8
  • Overall depth: 4.84”, 123mm
  • Unit weight: 7.2lb, 3.3kg
