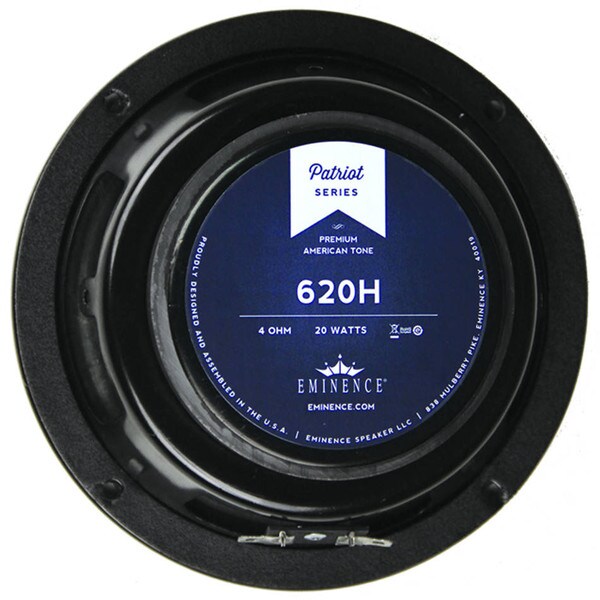

Eminence Patriot 620H 6.5" Speaker 4 Ohm 20W

(0) No Reviews yet
$59.99
SKU: 1000129
Weight: 4 lb
Sale Unit: Piece

In Stock

2 IN STOCK

The little brother to the 820H, the 620H is a four ohm hemp cone speaker with warm, full, and clean tone that will make a small, thin amp sound bigger and fatter. Cleaner, warmer, fatter, and better definition than any stock 6.5 inch speaker.

This speaker fits the original Fender® Tweed Champ amplifier and is a perfect upgrade.
  • Nominal Basket Diameter: 6.5", 165mm
  • Nominal Impedance: 4 ohms
  • Power Rating: 20W
  • Music Program: 40W
  • Resonance: 114Hz
  • Usable Frequency Range: 100Hz - 5.3kHz
  • Sensitivity: 94.6dB
  • Magnet Weight: 15 oz.
  • Gap Height: 0.25", 6.4mm
  • Voice Coil Diameter: 1", 25mm

MOUNTING INFORMATION
  • Recommended Enclosure Volume
  • Sealed: Acceptable
  • Vented: Acceptable
  • Driver Volume Displaced: 19.00 cu.in. / 0.3 liters
  • Overall Diameter: 6.59", 167.4mm
  • Baffle Hole Diameter: 5.65", 143.5mm
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Mounting Holes Diameter: 0.23", 5.8mm
  • Mounting Holes B.C.D.: 6.06", 153.9mm
  • Depth: 2.8", 71.1mm
  • Net Weight: 2.9 lbs, 1.32 kg
  • Shipping Weight: 3.6 lbs, 1.63 kgs
