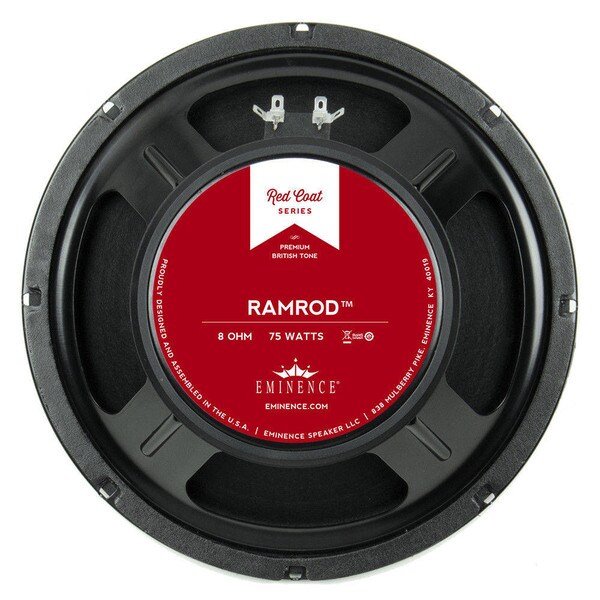

Eminence Ramrod 10'' Speaker 8 Ohm 75W
The Red Coat Series Ramrod is a meaty 10" speaker with British influence, setting the standard for 10" speakers. "Very loud, gutsy, and meaty tone with singing highs and nice, clear overtones."
- Nominal Basket Diameter: 10", 254mm
- Nominal Impedance: 8 ohms
- Power Rating: 75W
- Music Program: N/A
- Resonance: 101Hz
- Usable Frequency Range: 80Hz - 5kHz
- Sensitivity: 100dB
- Magnet Weight: 30 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.5", 38.1mm
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 66.9 cu.in. / 1.1 liters
- Overall Diameter: 10.11", 256.8mm
- Baffle Hole Diameter: 9.13", 231.8mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.23", 5.7mm
- Mounting Holes B.C.D.: 9.6", 243.8mm
- Depth: 4.3", 109mm
- Net Weight: 5.4 lbs, 2.5 kg
- Shipping Weight: 8.3 lbs, 3.8 kgs
