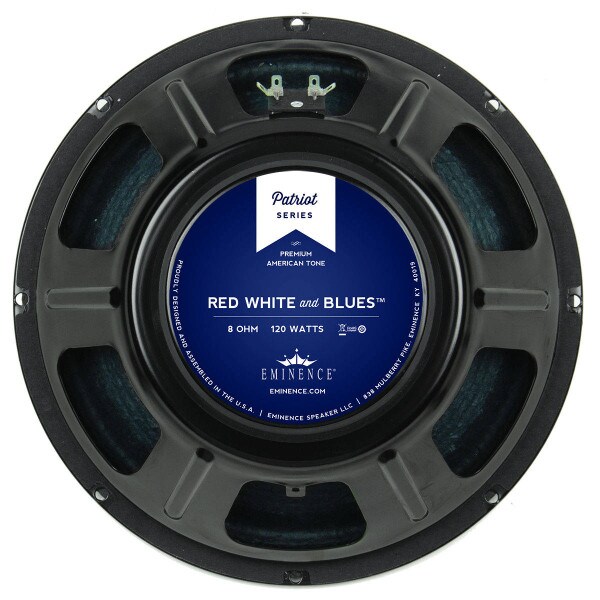

Eminence Red, White & Blues 12'' Speaker 8 Ohm 120W
Red, white and blues a purely American 12" guitar speaker with true-blue mids and highs Nice tight low-end, smooth midrange and top end sparkle. * Core Details: Non-vented core * Coil Former: Polyimide former
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance: 8 ohms
- Power Rating: 120W
- Music Program: N/A
- Resonance: 110Hz
- Usable Frequency Range: 70Hz - 4.5kHz
- Sensitivity: 101dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.75", 44.5mm
MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 122 cu.in. / 2 liters
- Overall Diameter: 12.02", 305.3mm
- Baffle Hole Diameter: 10.97", 278.6mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.63", 295.4mm
- Depth: 5.1", 130mm
- Net Weight: 8.2 lbs, 3.7 kg
- Shipping Weight: 10.1 lbs, 4.6 kgs
