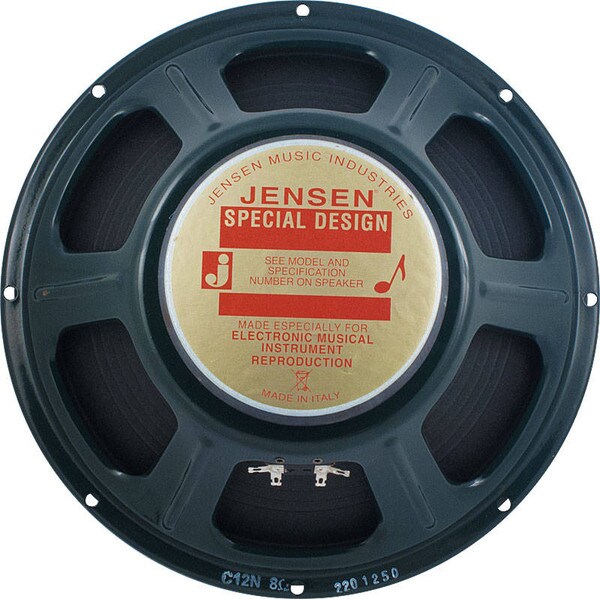

Jensen C12N 50W 12'' Replacement Speaker 8 OHM
The C12N has a smooth, straightforward and full-bodied tone with high frequency chime. Smooth and straightforward, full bodied tone with high frequency chime. It responds to overdrive distortion with powerful mid bite.
- Overall Diameter: 12 in
- Voice Coil Diameter: 1.5 in
- Magnet Weight: 28.50 oz
- Overall Weight: 7.27 lbs
- Flux Density: 1.15 T
Thiele-Small Parameters
- Voice Coil DC Resistance: 6.05 Ω
- Resonance Frequency: 113.0 Hz
- Mechanical Q Factor: 7.52
- Electrical Q Factor: 1.05
- Total Q Factor: 1.02
- Mechanical Moving Mass: 29.9 g
- Mechanical Compliance: 66 µm/N
- Force Factor: 10.46 Wb/m
- Acoustic Volume: 22.6 lt.
- Linear Displacement: 1.0 mm
- Reference Efficiency: 3.48 %
- Diaphragm Area: 490.9 cm2
- Electrical Resistance: 42.5 Ω
- Voice Coil @ 1kHz: 0.9 mH
Constructive Characteristics
- Magnet: Ferrite
- Voice Coil Winding: Copper
- Voice Coil Former: Kapton
- Cone: Paper
- Surround: Integrated Paper
- Dust Dome: Solid Paper
- Basket: Pressed Sheet Steel
Electrical Characteristics
- Nominal Impedance: 8 Ω
- Rated Power: 50 W
- Musical Power: 100 W
- Sensitivity@1W,1m: 97.7 dB
