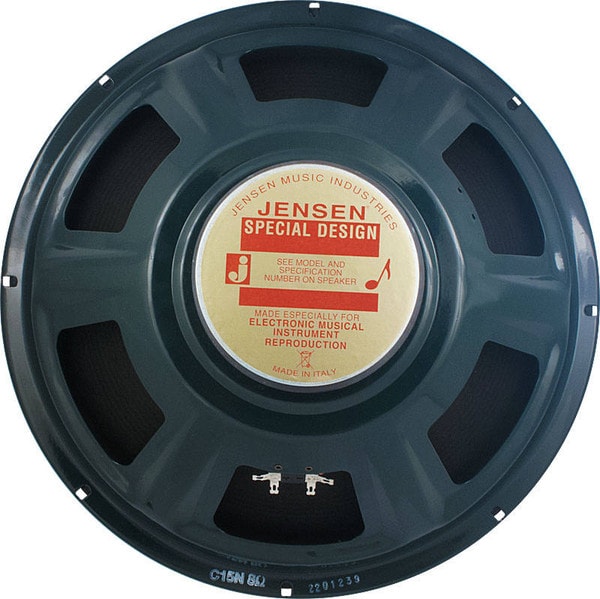

Jensen C15N 50W 15'' Replacement Speaker 8 OHM

(0) No Reviews yet
$126.10
SKU: 4013102
Weight: 12 lb
Sale Unit: Piece

In Stock

3 IN STOCK

Tight low-end and clear, bright highs. It responds to overdrive distortion with a gritty edge.
  • Overall Diameter: 15 in
  • Voice Coil Diameter: 1.5 in
  • Magnet Weight: 28.5 oz
  • Overall Weight: 9.26 lbs
  • Flux Density: 1.0 T

Thiele-Small Parameters
  • Voice Coil DC Resistance: 6.2 Ω
  • Resonance Frequency: 73.0 Hz
  • Mechanical Q Factor: 6.80
  • Electrical Q Factor: 1.24
  • Total Q Factor: 1.11
  • Mechanical Moving Mass: 54.7 g
  • Mechanical Compliance: 87 µm/N
  • Force Factor: 10.85 Wb/m
  • Acoustic Volume: 70.3 lt.
  • Linear Displacement: 1.0 mm
  • Reference Efficiency: 2.84%
  • Diaphragm Area: 754.8 cm2
  • Electrical Resistance: 39.0 Ω
  • Voice Coil @ 1kHz: 0.93 mH

Constructive Characteristics
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Kapton
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel

Electrical Characteristics
  • Nominal Impedance: 8 Ω
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity@1W,1m: 96.3 dB
