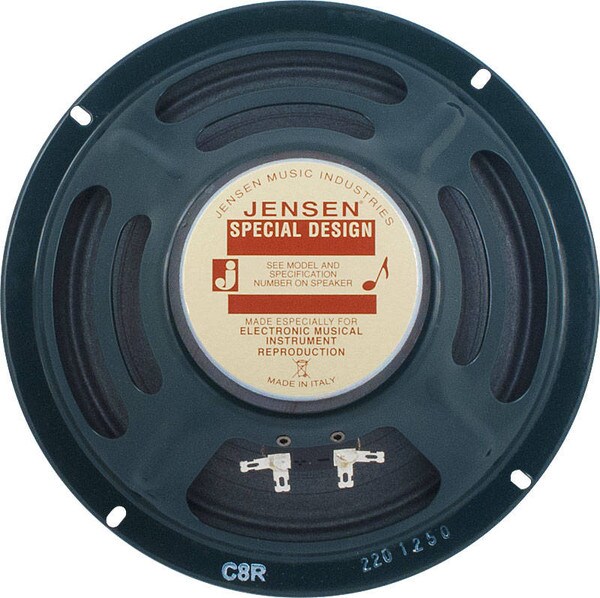

Jensen C8R 25W 8" Replacement Speaker 8 OHM

(0) No Reviews yet
$41.08
SKU: 4014106
Weight: 3 lb
Sale Unit: Piece

In Stock

4 IN STOCK

The 25 Watt C8R was predominantly used in small practice amps throughout the 1960s. This 8" speaker has a nice mid range with smooth break up. Crystal clear tone with brightly shining highs. It responds to overdrive distortion with a bright fuzz lead voice.
  • Overall Diameter: 8 in
  • Voice Coil Diameter: 1.0 in
  • Magnet Weight: 10 oz
  • Overall Weight: 2.20 lbs
  • Flux Density: 1.0 T

Thiele-Small Parameters
  • Voice Coil DC Resistance: 6.73 Ω
  • Resonance Frequency: 126.0 Hz
  • Mechanical Q Factor: 10.29
  • Electrical Q Factor: 2.21
  • Total Q Factor: 1.80
  • Mechanical Moving Mass: 9.0 g
  • Mechanical Compliance: 176 µm/N
  • Force Factor: 4.70 Wb/m
  • Acoustic Volume: 11.4 lt.
  • Linear Displacement: 1.0 mm
  • Reference Efficiency: 1.03 %
  • Diaphragm Area: 213.8 cm2
  • Electrical Resistance: 37 Ω
  • Voice Coil @ 1kHz: 0.43 mH

Constructive Characteristics
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Kapton
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel

Electrical Characteristics
  • Nominal Impedance: 4 Ω
  • Rated Power: 25 W
  • Musical Power: 50 W
  • Sensitivity@1W,1m: 94.4 dB
