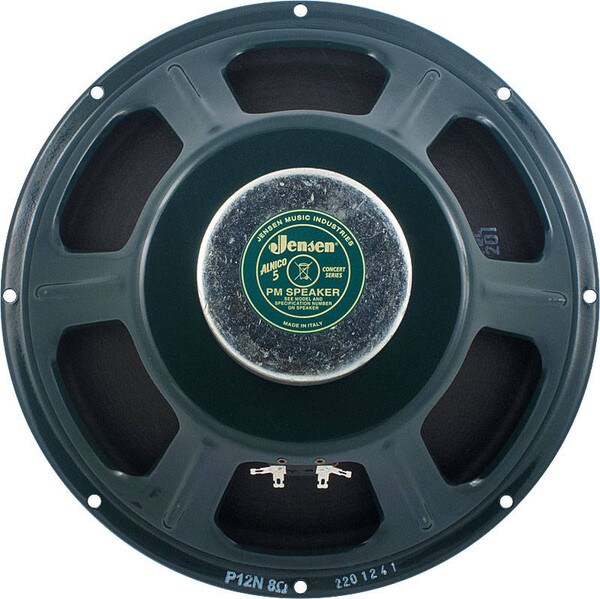

Jensen P12N 50W 12'' Replacement Alnico Speaker 8 OHM

(0) No Reviews yet
$227.50
SKU: 4012100
Weight: 8 lb
Sale Unit: Piece

Temporarily Out of Stock

SPECIAL ORDER ITEM

Originally introduced in the late '40s, Jensen P Series loudspeakers were used in countless vintage amps and today are considered one of the most important contributions to the sound of rock 'n' roll. The P12N uses the same lightweight, efficient alnico magnets, copper voice coil windings, and seamed paper cones to create the pure vintage tone loved by guitarists throughout the world. Does not come with bell cover. Very warm and full bodied tone with powerful mid-bite and sparkling highs. When presented with overdrive distortion, it displays a bright and colorful crunch
  • Overall Diameter: 12 in
  • Voice Coil Diameter: 1.5 in
  • Magnet Weight: 29 oz
  • Overall Weight: 6.6 lbs
  • Flux Density: 1.26 T

Thiele-Small Parameters
  • Voice Coil DC Resistance: 6.03 Ω
  • Resonance Frequency: 90.0 Hz
  • Mechanical Q Factor: 4.36
  • Electrical Q Factor: 0.82
  • Total Q Factor: 0.77
  • Mechanical Moving Mass: 30.9 g
  • Mechanical Compliance: 101 µm/N
  • Force Factor: 10.62 Wb/m
  • Acoustic Volume: 34.6 lt.
  • Linear Displacement: 1.00 mm
  • Reference Efficiency: 3.40 %
  • Diaphragm Area: 490.9 cm2
  • Electrical Resistance: 43.0 Ω
  • Voice Coil @ 1kHz: 0.87 mH

Constructive Characteristics
  • Magnet: Alnico
  • Voice Coil Winding: Copper
  • Voice Coil Former: Kapton
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Solid Paper
  • Basket: Pressed Sheet Steel

Electrical Characteristics
  • Nominal Impedance: 8 Ω
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity@1W,1m: 97.5 dB
