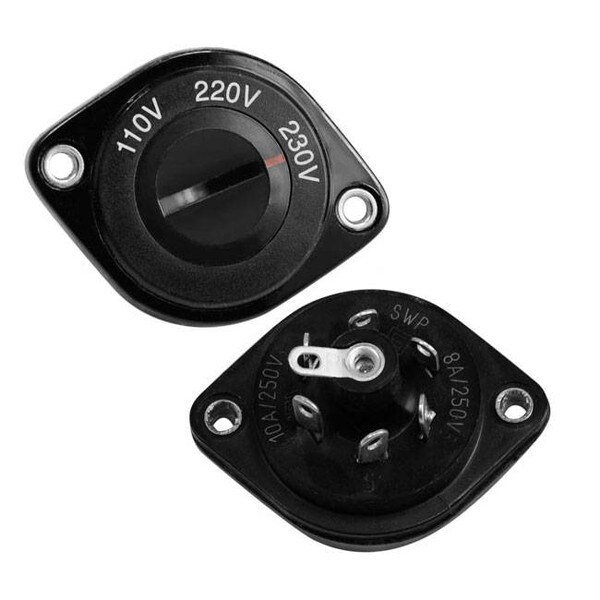

Modern Voltage Selector Switch (Replacement for modern era Marshall® Amps)
Voltage Selector Switch (Replacement for Modern era model Marshall® Amps like the JCM800 and JMP)
Select between 110V, 220V, and 230V
Select between 110V, 220V, and 230V
- Type: Rotary
- Item Height: 28.7 mm
- Item Length: 47 mm
- Item Width: 35 mm
- Mounting: Panel Mount from front side
- Fastening: Screw-on mounting
- Terminal: Solder
- Type: SP3T
- Lifetime: 300 operating cycles (without load)
- IEC: 6.3 A / 250 VAC; 50 Hz
- UL: 10 A / 250 VAC; 60 Hz
- CSA: 8 A / 250 VAC; 60 Hz
