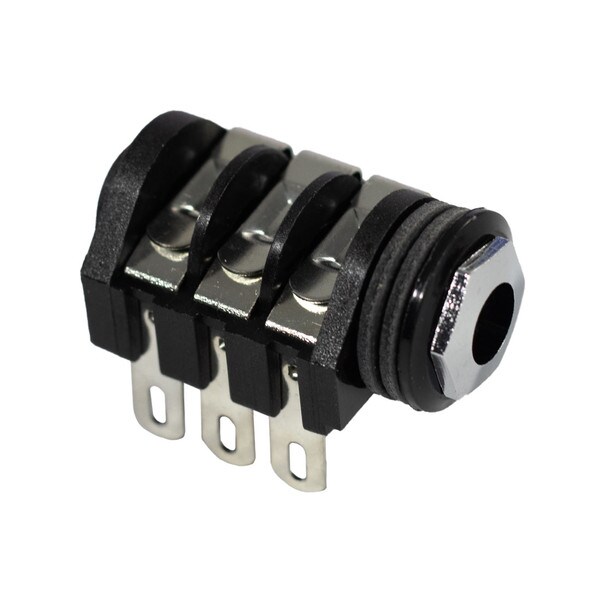

Mojo 3-Conductor Panel Mount 1/4" Phone Jack 6-Pin

(0)No Reviews yet
$1.29
QuantityPrice
1 – 9$1.29
10 – 19$1.23
20 – 99$1.16
100 +$1.14
SKU: 1105110
Weight: 0.01 lb
Sale Unit: Piece

In Stock

110 IN STOCK

Mojotone 3-Conductor Panel Mount 1/4" Phone Jack 6-Pin Switched Chrome Nut
Rated Voltage: 2000V DC Min.
Dielectric Withstand: >1500VAC/1 min.
Insulation Resistance: >106 M @ 500VDC
Mechanical: Life: >10,000 cycles
Plug Insertion force: < 20 N
Plug Removal force: > 10 N Solderability: 95% coverage (min.)
Test Temperature: 230deg C +/- 10deg C
Test Time: 3 sec +/- 0.5 sec.
Nominal Panel Thickness:
Plastic Nut – 1.5mm / 4.6mm max.
Chrome Plated Metal Nut – 1.5mm / 4.3mm max.
ADN Version – 1.5mm / 3.0mm max.
Material: Housing: Nylon PA 6, UL94 HB
Contacts: Nickel-Silver Alloy, Tin Plated finish
Operating Temp: -10degC to +70degC

For further information on this product, please feel free to view the datasheet here.
