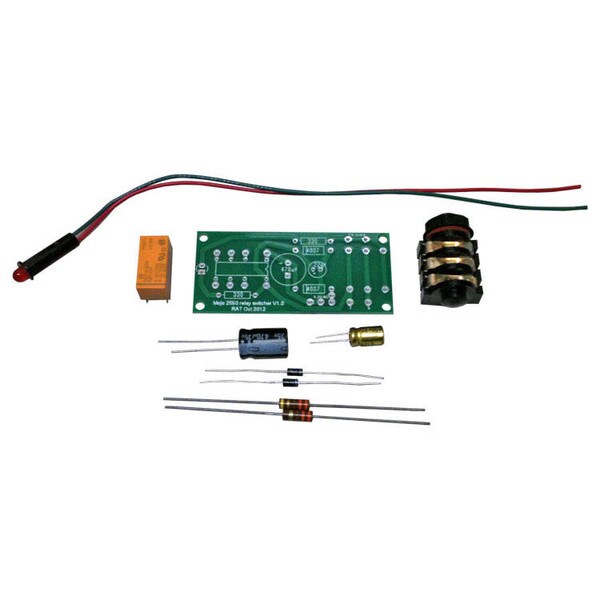

Mojotone Channel / Component Switcher Kit

1 Review
$28.21
QuantityPrice
1 – 9$28.21
10 – 19$26.80
20 +$25.39
SKU: G1CCS340
Weight: 0.1 lb
Sale Unit: Piece

In Stock

4 IN STOCK

Specs

  • Can be powered off of the 6.3v Filament taps in your amplifier for easy installation.
  • Connections for indicator LED
  • Board can be mounted directly to the chassis with standoffs or can install PC mount 1/4" mono or stereo jack
  • Assembly / Instruction Manual
Installation Note: When installing with 1/4" jack, make sure jack is insulated from chassis ground.

Ratings & Reviews

1 review

  • 5 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
7/16/2021 10:46 am

4.5 out of 5 for this kit!

by Jack P -

Installed the Channel / Component DPDT switching kit in my home grown 20W guitar amp. Had to order and use the Extension PCB for the relay as space is tight in the chassis. Also installed, a SPST switch on the panel to control the kit in the absence of a footswitch.

This all went well with the crystal-clear instructions provided on this site!
The kit build is super simple.

Only issue is that the default condition of the switch, which is "off" (relay in default non-energy consuming position) is when the LED is lit. You'd have to turn the relay "on" (voltage applied to relay) to turn the LED off and wire your switches accordingly. I certainly wanted that the other way around so I deleted the LED install and am using the default no voltage position as "off".
The only reason this kit gets 4.5 stars.

Otherwise, I'm so grateful that this product is available and I highly recommend it to DIYers and and Pro modders alike.

Well done Mojotone! -)
