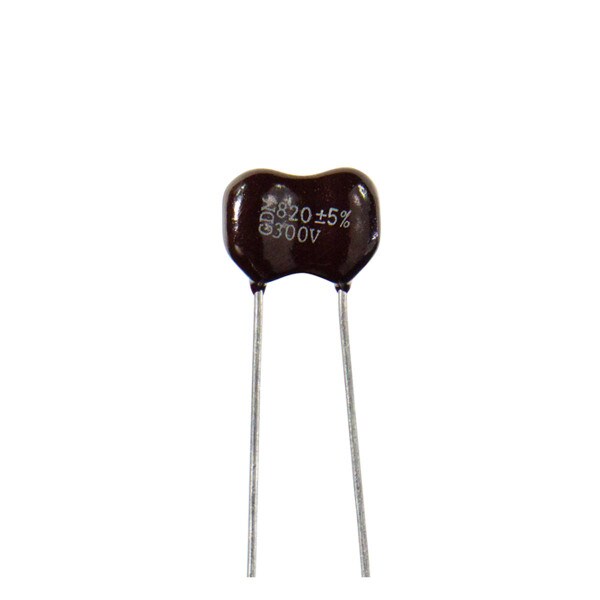

Silver Mica 820pF 300V Capacitor

(0)No Reviews yet
$1.49
SKU: 5164681
Weight: 0.00625 lb
Sale Unit: Piece

In Stock

306 IN STOCK

Precision and tolerances
The minimum tolerance for silver mica capacitor values can be as low as ±1%. This is much better than practically all other types of capacitors. In comparison, certain ceramic capacitors can have tolerances of up to ±20%.

Stability
Mica capacitors are very stable and very accurate. Their capacitance changes little over time. This is due to the fact that there are no air gaps in the design which could change over time. Also, the assembly is protected from moisture and other effects by an epoxy resin. This means that outside effects such as air humidity do not affect mica capacitors. Not only is their capacitance stable over time, it is also stable over a wide temperature, voltage and frequency range. The average temperature coefficient is around 50 ppm/°C.

Low losses
Mica capacitors have low resistive and inductive losses (high Q factor). Their characteristics are mostly frequency-independent, which allows for their use at high frequency. These superior characteristics come at a price: silver mica capacitors are bulky and expensive.



Read more http://www.capacitorguide.com/mica-capacitor/
  • Type: Silver Mica
  • Capacitance:820pF/.82nF
  • Rated Voltage:300VDC
  • Tolerance:+/-5%
  • Operating Temp.:–55 ºC to +125 ºC
  • Dimensions:11.9mm x 9.9mm
  • Lead Spacing:5.9mm
