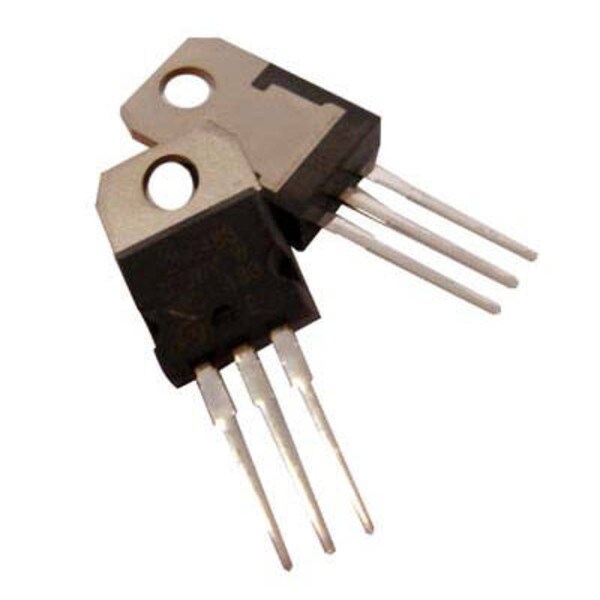

TIP142 Darlington Power Amp NPN 125W 100V Transistor
Complementary Silicon Power Darlington Transistor. The TIP142 is manufactured in planar technology with "base island" layout and monolithic Darlington configuration. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.
- Dimensions (mm): 15.75 x 20.15 x 5.15 (max)
- Lead spacing (mm): 5.60 individual (max)
- Lead Length (mm): 14.80 (max)
- Polarity: NPN
Features:
- Monolithic Darlington Configuration
- Integrated antiparallel collector-emitter diode
- Application: Linear and Switching Industrial Equipment
